eBOX640A

Status : Available

Fanless Embedded System with LGA1700 14th/13th/12th Gen Intel® Core™ i7/i5/i3 or Celeron® processor, Intel® H610, 4 COM, 2 LANs, 2 HDMI, 4 USB, 8-CH DIO and 19VDC

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
eBOX640A
eBOX640A
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • LGA1700 14th/13th/12th gen Intel® Core™ i7/i5/i3, 35W TDP
  • Intel® UHD Graphics 770 based on Intel® Xe Architecture with support for up to 32 graphics
  • Supports PCIe Mini module for flexible I/O window (optional)
  • 2 HDMI for dual display outputs
  • -10˚C to +50˚C wide operating temperatures
  • 19VDC power input with power protection
  • Efficient and budget-friendly
Dust Proof
Dust Proof

IP40 certified

Rugged Design
Reliable Design

Operating temperature -10°C to +50°C
19VDC input with power protection

Ample Connectivity
I/O Designed for Factory

2 HDMI for dual display
Front access I/O



12th Gen Intel Core™ Processor and UHD Graphics

The eBOX640A is powered by the 12th Gen Intel® Core™ i7/i5/i3 or Celeron® processors and equipped with two 260-pin DDR4-3200/2666/2400 SO-DIMM slots with up to 64GB of system memory. The Intel® UHD Graphics 770, based on Intel® Xe Architecture, supports up to 32 graphics execution units (EUs), ensuring seamless visual experiences. Furthermore, it supports NVMe high-speed storage devices, maximizing system computing efficiency.

Fast Connectivity with 2.5GbE LAN

Featuring support for high-speed 2.5GbE network transmission, the eBOX640A delivers blazing-fast connectivity to keep automation operations running smoothly and efficiently.




I/O Perfectly Suited for Factory Automation

The design of flexible I/O enables customers to meet practical needs in the fastest and easiest way. With multiple USB, COM, and DIO ports, the eBOX640A is perfectly suited for general factory automation equipment, ensuring seamless integration and efficient operation.

Front-access I/O Reliable and Rugged Design

The front-facing I/O ports make the eBOX640A easier to access and maintain, enhancing overall efficiency and ease of use for users. An optional mPCIe slot for the I/O module allows users to expand functionality and adapt to evolving industry demands effortlessly.

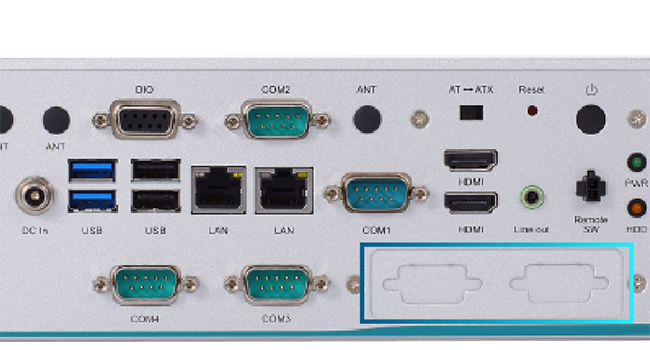

Front-access I/O Design

Reliable and Rugged

The eBOX640A operates on a 19VDC power input with built-in power protection mechanisms, safeguarding against fluctuations and surges for uninterrupted performance.

Reliable and Rugged Power Protection

Expansion Capability

  • 1 x M.2 Key B 2242: PCIe x2 signal; for storage only
  • 1 x M.2 Key E 2230: PCIe x1 & USB 2.0 signal
  • 1 x Full-size PCI Express Mini Card slot: PCIe x1 & USB 2.0 signal

Rich I/O Interfaces

Front View

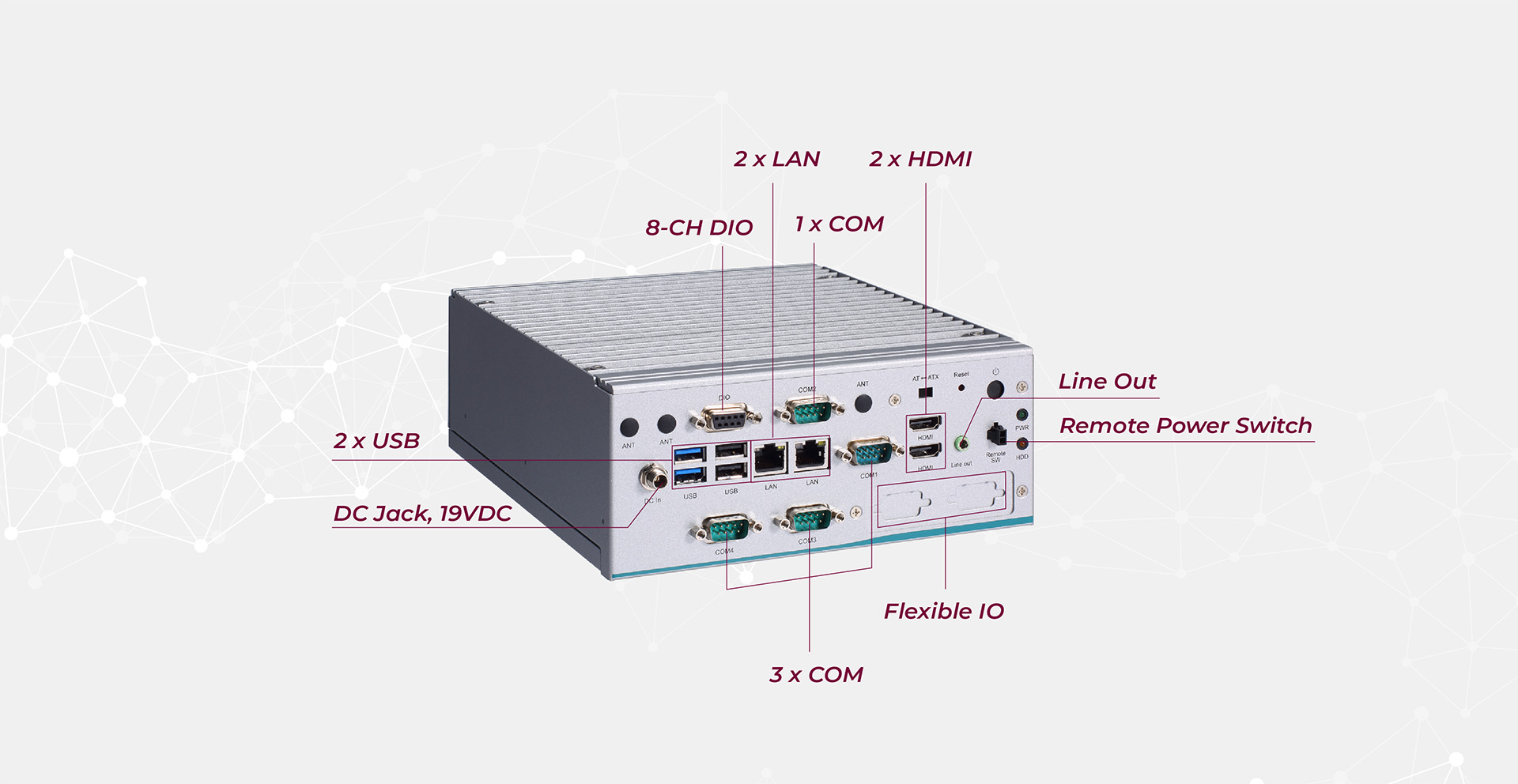

eBOX640A Front I/O

Specifications

CPU
  • LGA1700 14th/13th/12th gen Intel® Core™ i7/i5/i3 or Celeron® processor (TDP up to 35W)
Chipset
  • Intel® H610
System Memory
  • 2 x 260-pin DDR4-3200/2666/2400 SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (COM1)
  • 3 x RS-232 (COM2-4)
USB
  • 2 x USB 3.2 Gen1
  • 2 x USB 2.0
Ethernet/PoE
  • 1 x 2500/1000/100/10 Mbps Ethernet (Intel® I225-V)
  • 1 x 1000/100/10 Mbps Ethernet (Intel® I219-V)
Display
  • 2 x HDMI
Digital I/O
  • 1 x 8-CH DIO (4-in/4-out)
Audio
  • 1 x Audio (Line-out)
Storage
  • 1 x 2.5" SATA HDD drive bay (up to 15 mm height)
Expansion
  • 1 x M.2 Key B 2242 (PCIe x2 signal; for storage only)
  • 1 x M.2 Key E 2230 (PCIe x1 & USB 2.0 signal)
  • 1 x Full-size PCI Express Mini Card slot (PCIe x1 & USB 2.0 signal)
Others
  • TPM 2.0
Power
  • 19 VDC
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -10°C to +50°C (14°F to 122°F) (with W.T. SSD/DRAM)
Relative Humidity
  • 10% - 90%, non-condensing
Vibration
  • IEC 60068-2-64 (w/SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis)
Shock
  • IEC 60068-2-27 (w/SSD: 50G, half sine, 11 ms duration)
Dimensions<br>(W x D x H)
  • 195 x 210.6 x 80 mm (7.67" x 8.27" x 3.14")
Weight (net/gross)
  • 3 kg (6.61 lb)/3.6 kg (7.94 lb)
Certifications
  • CE, FCC Class A, UKCA
EOS Support
  • Win 10 IoT, Win 11 IoT, Linux
Mounting
  • Wall mount kit
  • DIN-rail kit
Software Support
  • N/A

Ordering Information

  • eBOX640A-ALD-S (P/N-E36K640A00)
    Fanless embedded system with LGA1700 14th/13th/12th generation Intel® Core™ i7/i5/i3 or Celeron® processor, Intel® H610, 4 COM, 2 LAN, 2 HDMI, 4 USB, 8-CH DIO, and 19VDC
  • 2.5" SATA HDD
    64GB or above
  • 2.5" SATA SSD
    100GB or above
  • DDR4 SO-DIMM
    8GB to 32GB
  • E29R129104
    Wall mount kit
  • E29R129116
    DIN-rail kit
  • Wi-Fi/LTE module
  • Power cord
  • AX92903 (P/N-E392903102)
    CAN Bus PCI Express Mini module
  • AX92902 (P/N-E392902103)
    LAN PCI Express Mini module
  • AX92906 (P/N-E392906101)
    COM PCI Express Mini module
  • AX92905 (P/N-E392905103)
    Audio PCI Express Mini module
  • AX92918 (P/N-E392918103)
    Dual LAN PCI Express Mini module
  • 5095AD24000E
    19V 120W power adapter

Download

Drivers

Date Description Version Download File
2024/03/11 Serial IO Driver VA1.0
2024/03/11 Audio Driver VA1.0
2024/03/11 ME Driver VA1.0
2024/03/11 LAN Driver VA1.0
2024/03/11 Graphics Driver VA1.0
2024/03/11 Chipset Driver VA1.0

Software

Manual

Date Description Version Download File
2024/11/25 User Manual VA2

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2024/03/06 UKCA Declaration of Conformity
2024/03/06 CE LVD Verification
2024/03/06 CE-Conformity Declaration
2024/03/06 FCC Verification
2024/03/06 CE EMC Verification
