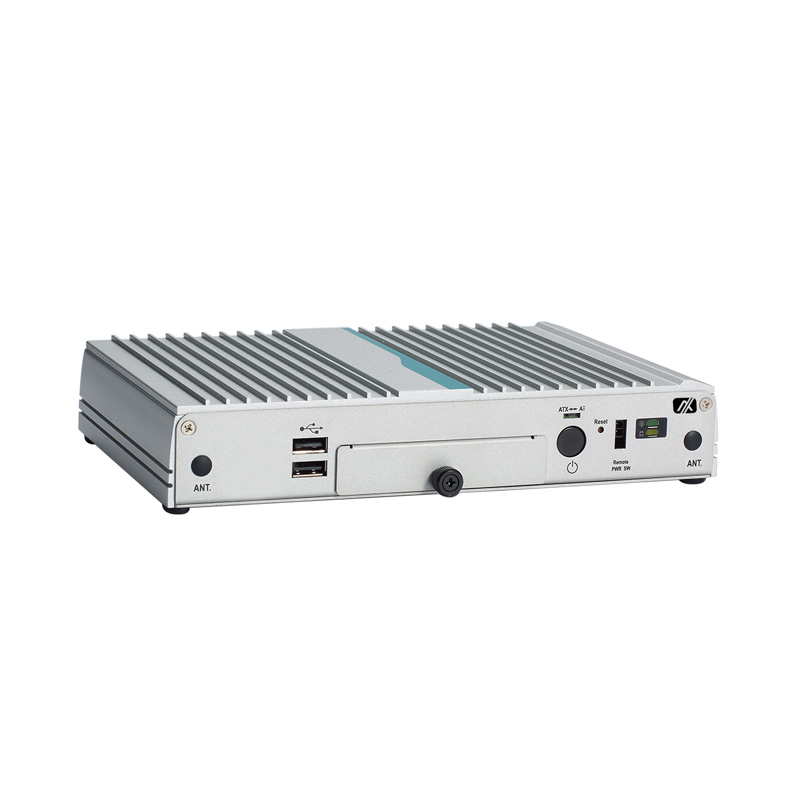

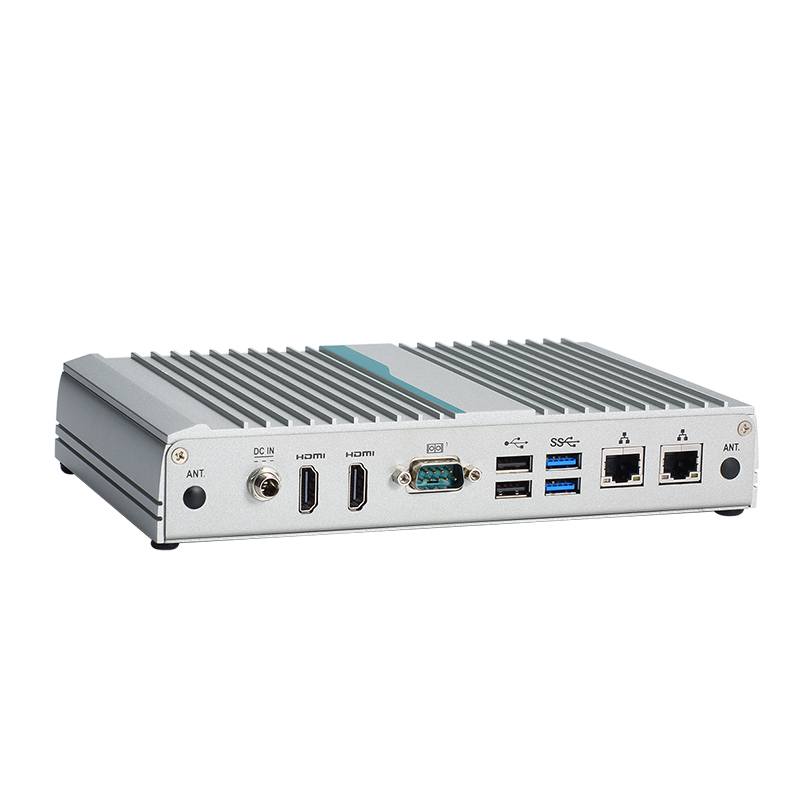

eBOX100-312-FL

Status : Available

Fanless Embedded System with Intel® Celeron® N3350 & Pentium® N4200, 2 HDMI, 2 GbE LAN and 6 USB

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
eBOX100-312-FL
eBOX100-312-FL
4K

4K

Fanless

Fanless

IP40 Rating

IP40 Rating

Low Power

Low Power

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Intel® Celeron® N3350 2.4 GHz & Pentium® N4200 2.5 GHz
  • Supports 2 HDMI, 1 COM, 6 USB and 2 GbE LAN
  • 2 PCI Express Mini Card slots for WLAN and WWAN
  • One swappable 2.5" SATA HDD drive bay
  • Supports Jumbo Frame (9k), WoL, PXE Remote Boot
  • Suitable for smart retail and light industries
  • Azure certified

Specifications

CPU
  • Intel® Celeron® N3350 2.4 GHz with turbo boost
  • Intel® Pentium® N4200 2.5 GHz with turbo boost
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1600, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232
USB
  • 2 x USB 3.0
  • 4 x USB 2.0
Ethernet/PoE
  • 2 x 10/100/1000 Mbps Ethernet (Intel® i210-AT)
Display
  • 2 x HDMI 1.4b
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 1 x SATA HDD drive bay (max. up 9.5 mm height)
Expansion
  • 2 x Full-size PCI Express Mini Card slot (USB + PCIe)
  • 1 x SIM slot
Others
  • 4 x Antenna opening
  • 1 x ATX power switch
  • 1 x AT/ATX quick switch
  • 1 x Reset button
  • 1 x Remote switch
Power
  • 12 VDC
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP40
Operating Temperature
  • -5°C to +60°C (+23°F to +140°F) (with W.T. DRAM & SSD)
Relative Humidity
  • 10% to 90%, non-condensing
Shock
  • N/A
Vibration
  • 3 Grms with SSD (5 to 500 Hz, X, Y, Z directions)
Dimensions
(W x D x H)
  • 216 x 137.65 x 38 mm (8.5" x 5.41" x 1.49")
Weight (net/gross)
  • 1.15 kg (2.53 lb)/1.5 kg (3.3 lb)
Certifications
  • CE, FCC Class A
EOS Support
  • Win 10 IoT, Linux
Mounting
  • Wall mount
  • DIN-rail
  • VESA arm
Software Support
  • N/A

Ordering Information

  • eBOX100-312-FL-DC-N3350 (P/N-E36K100110)
    Fanless embedded system with Intel® Celeron® N3350 2.4 GHz, 2 HDMI, 2 GbE LAN and 6 USB (w/o adapter and power cord)
  • eBOX100-312-FL-DC-N4200 (P/N-E36K100111)
    Fanless embedded system with Intel® Pentium® N4200 2.5 GHz, 2 HDMI, 2 GbE LAN and 6 USB (w/o adapter and power cord)
  • 2.5” SATA HDD
    64GB or above
  • 2.5” SATA SSD
    100GB or above
  • DDR3L SO-DIMM
    2GB to 8GB
  • E29R129100
    Wall mount kit
  • E29R129110
    VESA mount kit
  • E29R129120
    DIN-rail kit
  • Wi-Fi/LTE module
  • 50956A24030E
    12V 36W power adapter
  • Power cord

Download

Drivers

Date Description Version Download File
2023/04/21 LAN Driver_Windows 10 x64 VA1.5
2023/04/21 Graphic Driver_Windows 10 x64 VA1.5
2023/04/21 ReadMe before installation VA1.5
2023/04/21 TXE Driver_Windows 10 x64 VA1.5
2023/04/21 Serial IO Driver_Windows 10 x64 VA1.5
2023/04/21 Chipset Driver_Windows 10 x64 VA1.5

Software

Manual

Date Description Version Download File
2023/04/21 User Manual VA5
2020/11/16 Quick Manual VA2

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/07/28 UKCA Declaration of Conformity
2022/07/28 CE LVD Verification
2022/07/28 CE-Conformity Declaration
2022/07/28 CE EMC Verification
2022/07/28 FCC Verification

Frequently Asked Questions

You Might Also Like

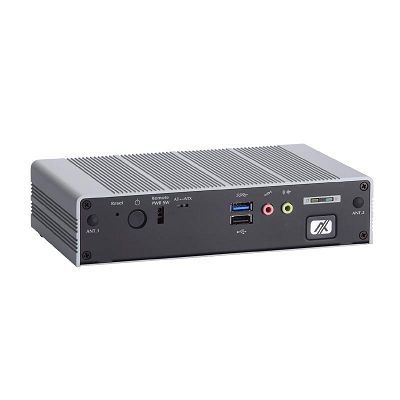

Picture of eBOX625-853-FL
