ICO320-83C

Status : Available

DIN-Rail Fanless Embedded System with Intel® Celeron® Processor N3350, COM, CAN, PoE LAN and DIO

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
ICO320-83C
ICO320-83C
ICO320-83C
ICO320-83C
4K

4K

allxon

allxon

Fanless

Fanless

IP40 Rating

IP40 Rating

Low Power

Low Power

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Cost-effective with fanless and cableless design
  • Intel® Celeron® processor N3350 processor, reliable F1 stepping version CPU
  • 4 RJ-45 Gigabit PoE ports
  • 8-bit programmable DIO for IoT gateway applications
  • Wide operating temperature range from -40°C to +70°C
  • 12 to 24 VDC wide range power input
  • Supports SocketCAN

Specifications

CPU
  • Intel® Celeron® N3350 2C @1.1 GHz, TDP: 6W
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1866 SO-DIMM slot, up to 8GB
COM
  • 1 x DB9 serial console or RS-232/422/485
  • 1 x DB9 RS-232/422/485 (by SKU optional)
USB
  • 2 x USB 3.0
Ethernet
  • 4 x RJ-45 isolated* 10/100/1000 Mbps Ethernet (Intel® I210-IT)
  • *isolation voltage: 1.5 kV
PoE
  • PoE power output max. 30W
  • 802.3af class 2, 7.5W, max. 4 ports
  • 802.3af class 3, 15.4W, max. 2 ports
  • 802.3at class 4, 30W, max. 1 port
CANbus
  • 1 x DB9 CANBus 2.0 A/B, supporting SocketCAN (by SKU optional)
Analog Input
  • N/A
Digital I/O
  • 1 x DB9 8-bit programmable DIO
Display
  • 1 x VGA
Expansion
  • 1 x Half-size Rev.1.2 PCI Express Mini Card slot: mSATA/USB/PCIe
  • 1 x Full-size Rev.1.2 PCI Express Mini Card slot: USB/PCIe with SIM socket
Storage
  • 1 x mSATA (occupied 1 x PCI Express Mini Card slot)
  • 1 x Internal 2.5" SATA drive (9.5 mm height)
Others

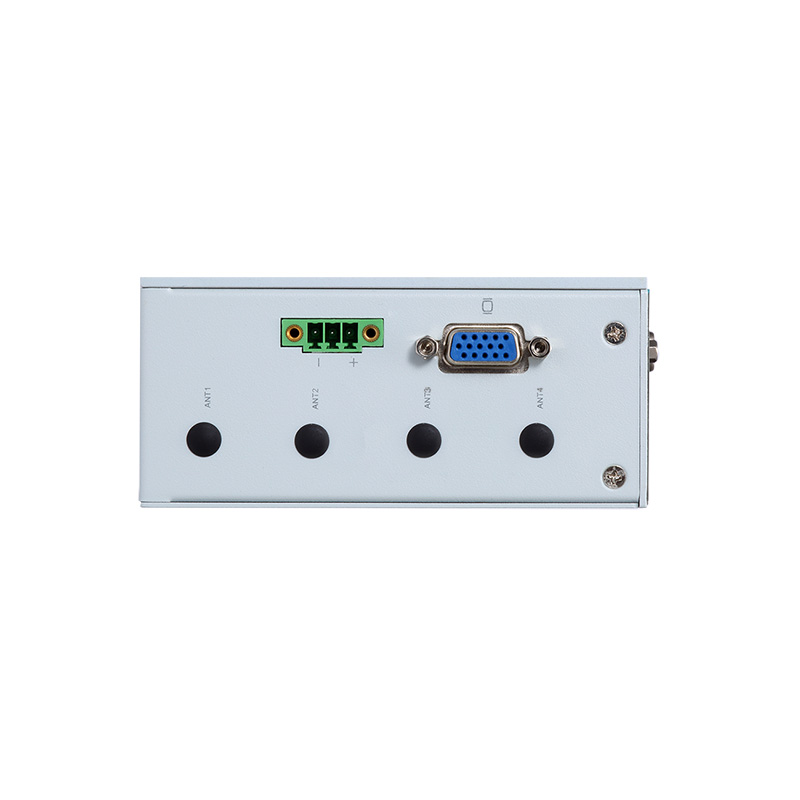

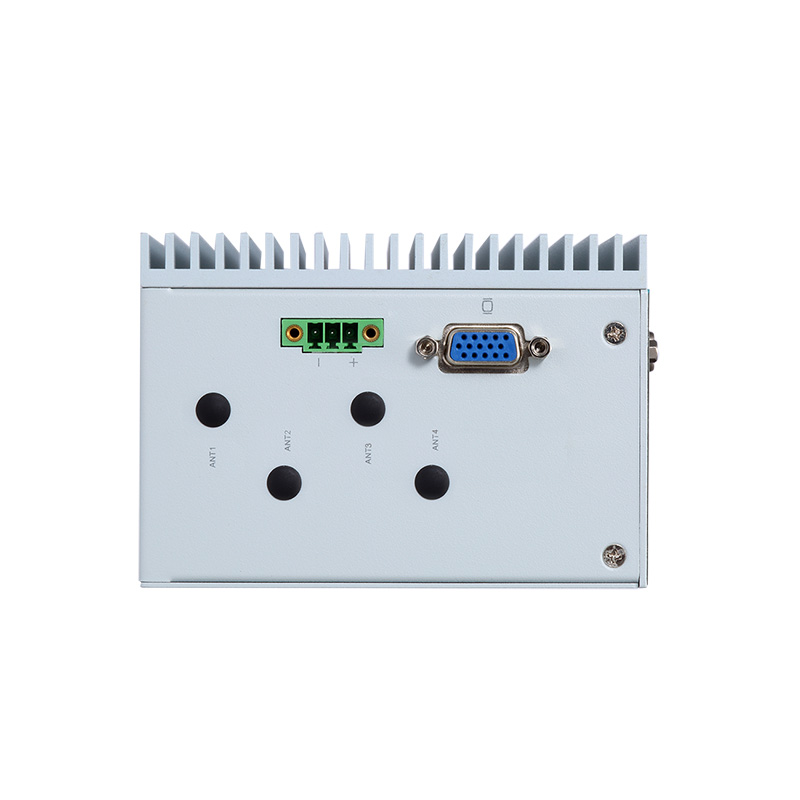

  • 4 x Antenna opening
Power
  • 1 x DC power input with terminal block Power
  • PoE SKU: 12-24VDC, 4.05-2.05A
  • LAN SKU: 12-24VDC, 1.6-0.81A
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Aluminum extrusion and heavy-duty steel, IP30
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) with W.T. peripheral
Relative Humidity
  • 0% to 95%, non-condensing
Vibration
  • 2 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating)
Dimensions<br>(W x D x H)

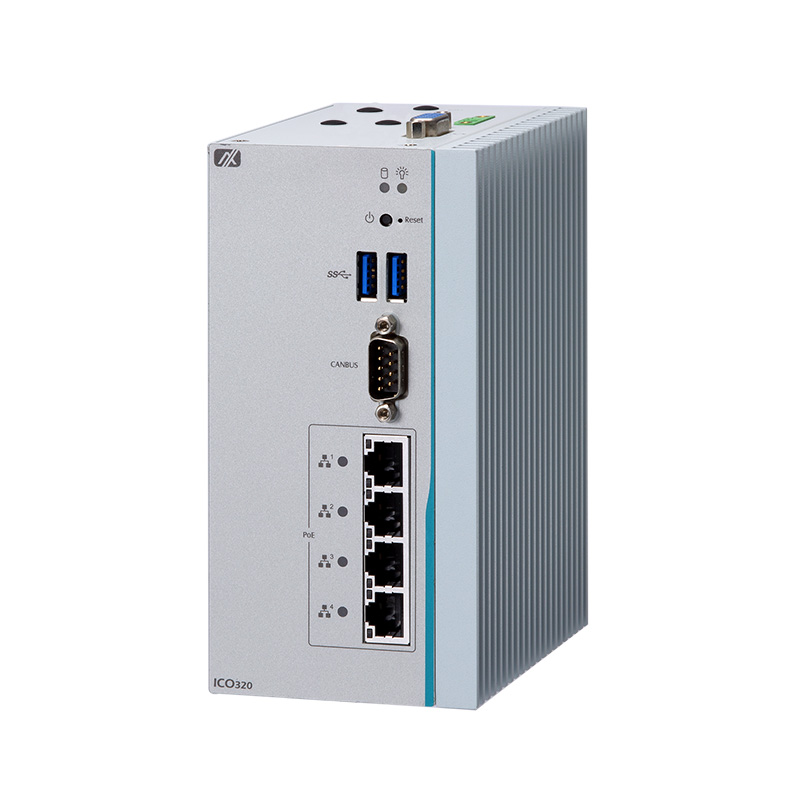

  • PoE SKU: 77 x 110 x 155 mm (3.03" x 4.33" x 6.1")

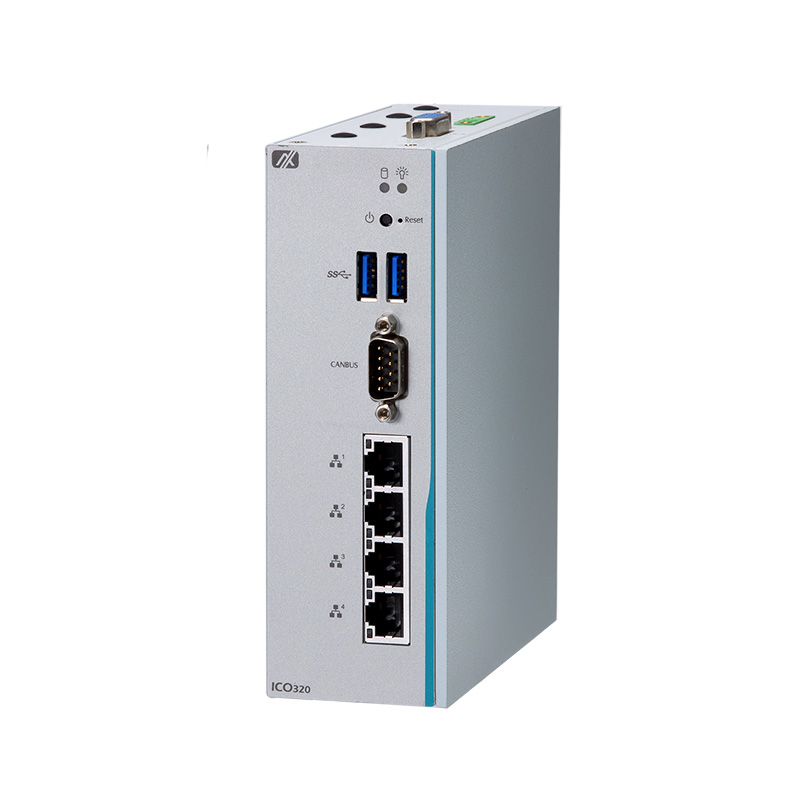

  • LAN SKU: 48 x 110 x 155 mm (1.88" x 4.33" x 6.1")
Weight (net/gross)
  • PoE SKU: 1.2 kg (2.2 lb)/1.70 kg (3.3 lb)
  • LAN SKU: 1.0 kg (2.2 lb)/1.50 kg (3.3 lb)
Certifications
  • CE (Class A)
  • FCC (Class A) compliant
EOS Support
  • Windows® 10 IoT, Linux
Software Support
  • Axiomtek EAPI
Mounting
  • DIN rail
  • Wall Mounting

Ordering Information

  • ICO320-83C-N3350-4POECAN-WT-DC (P/N-E22C320106)
    Robust DIN-rail fanless embedded system with Intel® Celeron® processor N3350 (1.1GHz), 1 COM, 4 RJ-45, PoE, GbE LAN, 2 USB, VGA, CAN, operating temperature from -40°C to 70°C, TPM 2.0, and SocketCAN supported
  • ICO320-83C-N3350-4LANCOM-CAN-WT-DC (P/N-E22C320107)
    Robust DIN-rail fanless embedded system with Intel® Celeron® processor N3350 (1.1GHz), 1 COM, 4 RJ-45, GbE LAN, 2 USB, VGA, CAN, operating temperature from -40°C to 70°C, TPM 2.0, and SocketCAN supported
  • ICO320-CSTD-1 (P/N-E22C320108)
    Robust DIN-rail fanless embedded system with Intel® Celeron® processor N3350 (1.1GHz), 2 COM, 4 RJ-45, GbE LAN, 2 USB, VGA, operating temperature from -40°C to 70°C, TPM 2.0, and SocketCAN supported
  • 509000001500
    AC to DC Adapter, PWS FSP120-AAAN3(9NA1206647) FSP 120W

Download

Drivers

Date Description Version Download File
2018/11/20 Win10_64_TXE VA1.0
2018/11/20 Win10_64_Chipset VA1.0
2018/11/20 Win10_64_Ethernet VA1.0
2018/11/20 Win10_64_Graphics VA1.0
2018/11/20 Win10_64_GPIO VA1.0

Software

Manual

Date Description Version Download File
2019/10/24 ICO320-83C User's Manual VA2_06-06-2019 VA2

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2025/02/24 FCC Verification
2025/02/24 UKCA Declaration of Conformity
2025/02/24 CE-Conformity Declaration
2025/02/24 CE EMC Verification
