AGD201

Status : Available

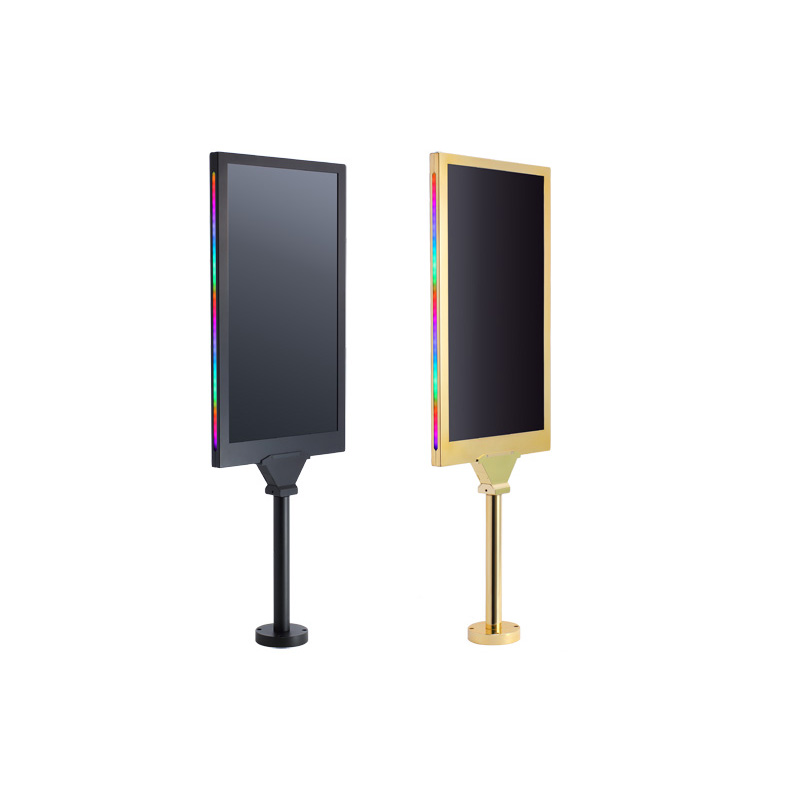

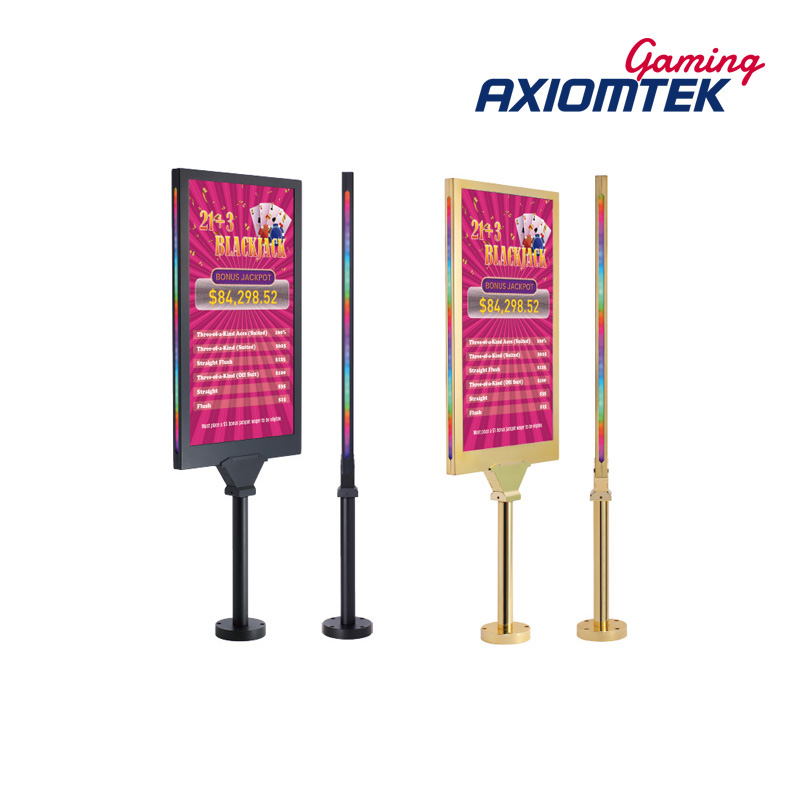

27” Lightweight and Slim Double-Sided Monitor for Table Gaming Applications

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
AGD201
AGD201
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Extremely slim double-sided monitor with only 28mm thickness
  • Panel lifetime up to 30,000 hours
  • Resolution up to 1920 x 1080@60Hz
  • Adjustable screen brightness level
  • Supports HDMI and DP interface
  • Supports tailoring LED pattern in one minute by AxLED software
  • LED light bar pattern controlled by USB interface
  • Lightweight design with only 10 kg
  • Supports trigger LED strip pattern with the game or customized events
  • Built-in LED light bar pattern for more than 13 modes

Specifications

Panel Size
  • 27-inch color TFT LCD
Aspect Ratio
  • 16:9 (portrait)
Backlight
  • LED backlight
Resolution
  • 1920 x 1080 @60Hz (max.)
Active Area
  • 597.6 mm x 336.15 mm
Pixel Pitch
  • 311.25um
Viewing Angle (H/V)
  • 178°/178° (typ.)
Contrast Ratio
  • 3000:1 (typ.)
Luminance
  • 300 cd/m<sup>2</sup> (typ.)
Response Time
  • 12ms
Surface Treatment
  • Anti-Glare, 3H
I/O
  • HDMI x 1
  • DP x 1
  • USB x 1 (LED strip pattern control)
Display
  • HDMI x 1
  • DP x 1
Power Input
  • 24V/90W DC Input
Operating Temperature
  • 0°C to 40°C (32°F to 104°F)
Dimensions (H x W x D)
  • 675 mm x 392 mm x 28 mm (without stand pole)
  • 1091 mm x 392 mm x 122 mm (with stand pole)
Weight
  • 10 kg (exclude cables and adapter)

Ordering Information

  • AGD201
    27” lightweight and slim double-sided monitor (Black)
  • AGD201-G
    27” lightweight and slim double-sided monitor (Gold)
