MotionDeck

Status : Available

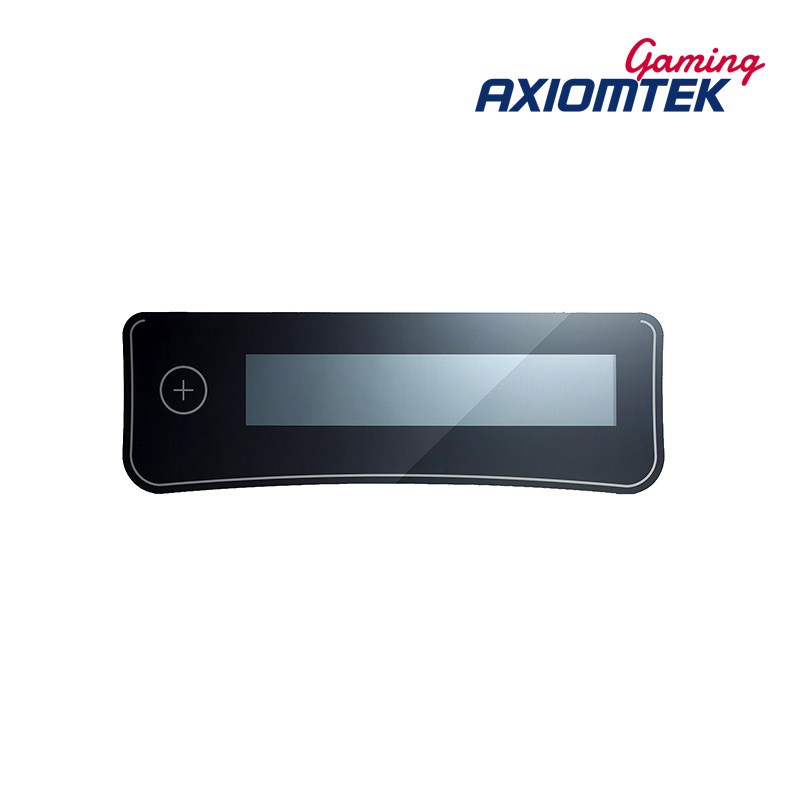

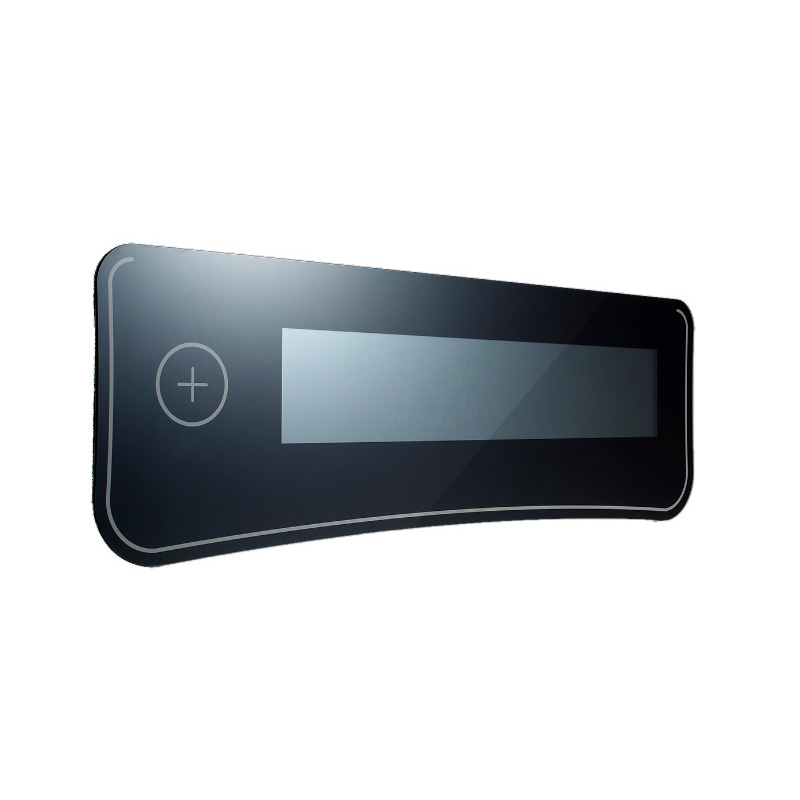

TFT LCD touch screen solution with 10-point PCAP multi-touch, true flat glass, a frameless design, and optional wireless charging for slot machines and casino gaming systems

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
MotionDeck
MotionDeck
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • High-quality and wide-viewing-angle panel
  • Support 10-point PCAP multi-touch screen
  • Customized cover glass (color printing, LED lighting, etc.)
  • Feature kits to enhance player gaming experience

Specifications

LCD Panel
  • 19.1”/15”/13.3”/12.1”/10.1” TFT LCD with LED Backlight
Touchscreen
  • 10 points PCAP multi-touch screen
Resolution
  • 1920 x 360/1024 x 768/1920 x 1080/024 x 768/1280 x 800
Brightness
  • 500/400/300/250
Contrast
  • 1200:1, 800:1, 700:1
Viewing Angle
  • 170° / 170°, 178° / 178°, 160° / 140°
Cover Glass
  • Customizable cover glass with rugged surface treatment
Input Signal
  • DVI-D
  • DP
Interface
  • 1 x DP
  • 1 x USB B Type
Power Input
  • DC +12V
Operating Temperature
  • 0°C to +50°C (32°F to 122°F)
Relative Humidity
  • 10% to 90%, non-condensing
OS
  • Windows®, Linux
Feature Kits
  • aiMotion Charger
  • aiMotion Immersive Effect
  • aiMotion LED Lightning

Ordering Information

  • MD191
    19.1” TFT LCD touch screen solution with 1920 x 360 resolution, 300 nits brightness, 1200
  • MD150
    15” TFT LCD touch screen solution with 1024 x 768 resolution, 250 nits brightness, 700
  • MD133
    13.3” TFT LCD touch screen solution with 1920 x 1080 resolution, 400 nits brightness, 800
  • MD121
    12.1” TFT LCD touch screen solution with 1024 x 768 resolution, 500 nits brightness, 700
  • MD101
    10.1” TFT LCD touch screen solution with 1280 x 800 resolution, 500 nits brightness, 800

Download

This object is currently under update, please visit later.
