GOT321B-ADL-WCD

Status : Available

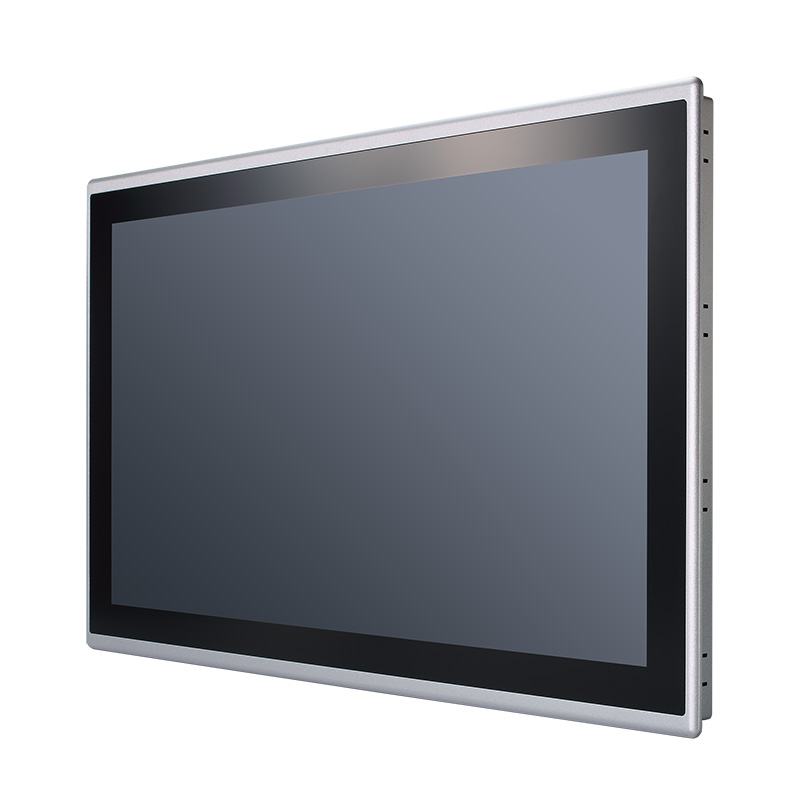

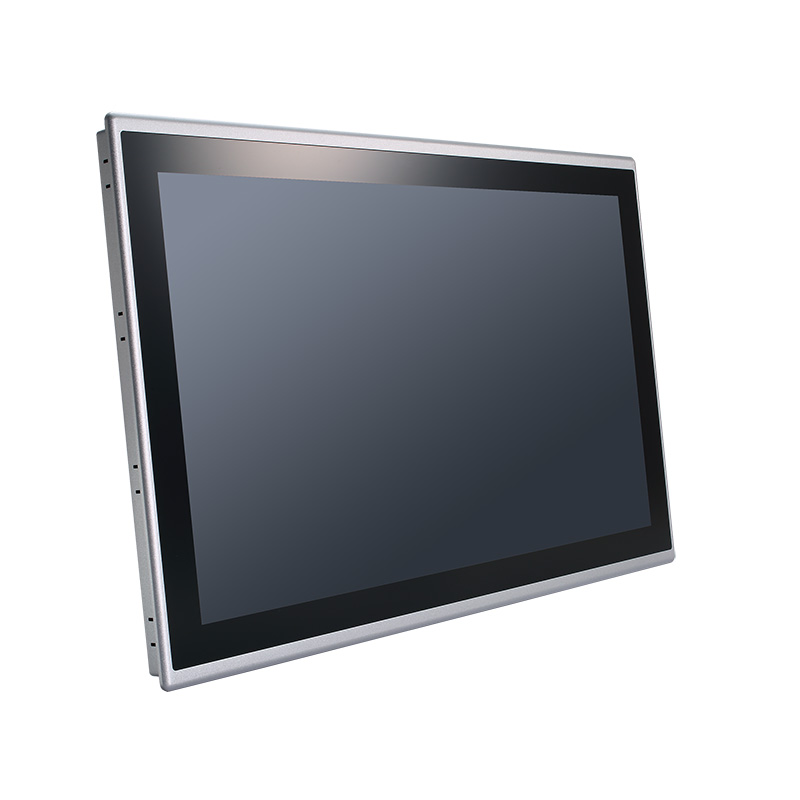

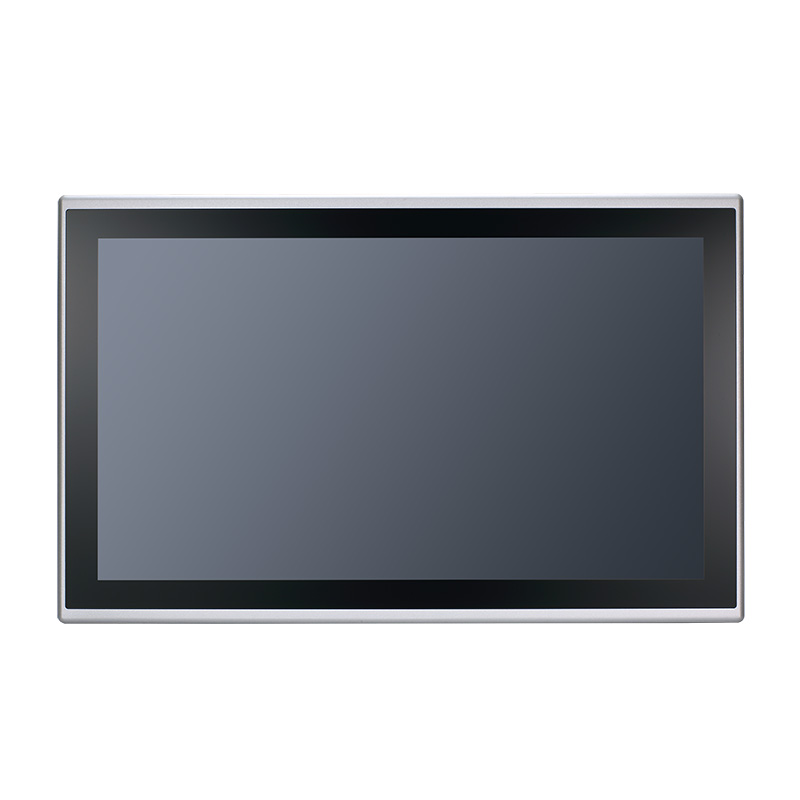

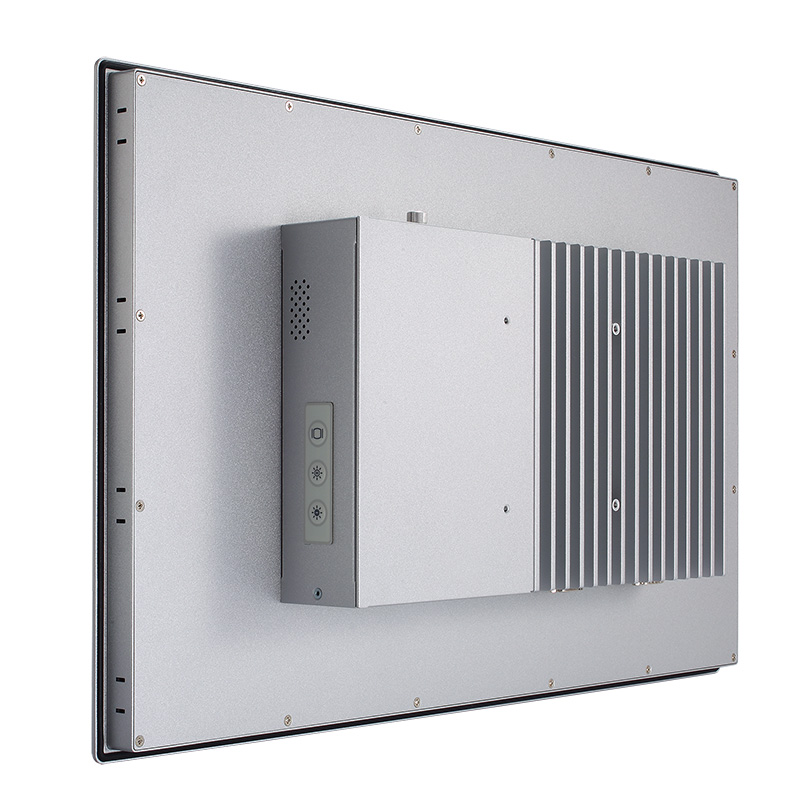

21.5" FHD Fanless Touch Panel Computer with LGA1700 Socket 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 or Pentium® Processor

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT321B-ADL-WCD
GOT321B-ADL-WCD
GOT321B-ADL-WCD
GOT321B-ADL-WCD
GOT321B-ADL-WCD
10-Point Touchscreen

10-Point Touchscreen

Fanless

Fanless

IP65 Rating

IP65 Rating

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 21.5" FHD TFT LCD with 400 nits of brightness
  • 10-point PCAP multi-touch panel
  • Supports one 2.5” SATA HDD/SSD
  • Supports 2 HDMI outputs for the second display
  • Supports WLAN module and antenna (optional)
  • Supports 4 USB and 2 COM ports
  • Flexible I/O window with support for COM3, and DIO (optional)
  • Supports panel mount, VESA mount, desktop stand, and wall mount
  • Wide temperature range of -10 to +50°C

Specifications

LCD Panel
  • 21.5" FHD TFT LCD
  • 400 nits
  • 1920 x 1080
CPU
  • LGA1700 socket 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3 or Pentium® processor (up to 35W)
Chipset
  • Intel® H610
System Memory
  • 1 x 260-pin DDR4 3200MHz SO-DIMM, up to 32GB
BIOS
  • AMI

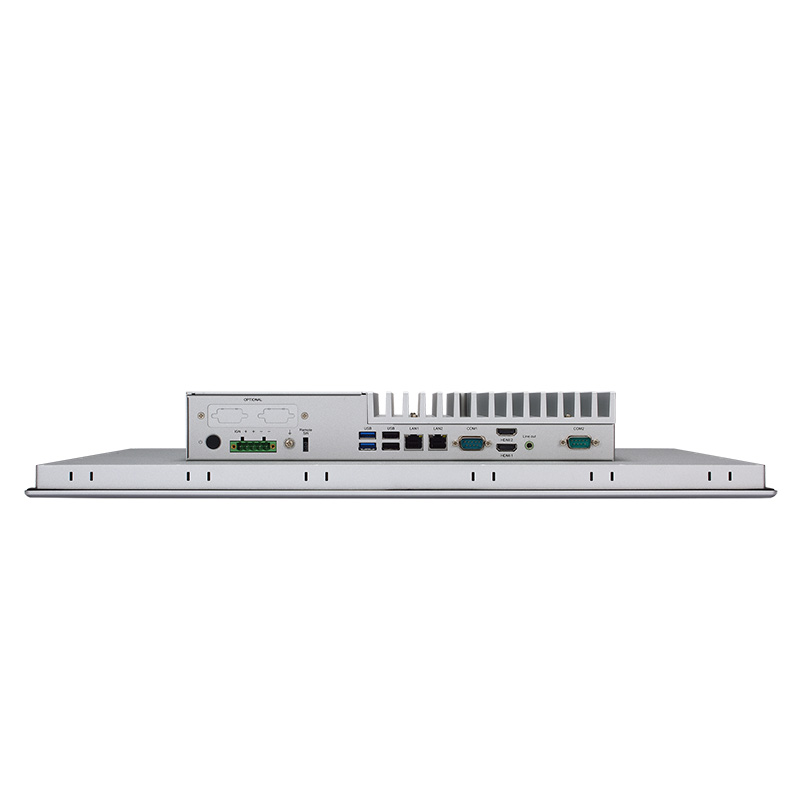

COM
  • 1 x RS-232
  • 1 x 9-pin D-sub Male RS-232/422/485
USB
  • 2 x USB 3.2 Gen1 (Type A)
  • 2 x USB 2.0 (Type A)
Ethernet
  • 1 x RJ-45 for 10/100/1000Mbps (Intel® I219-V)
  • 1 x RJ-45 for 10/100/1000/2500Mbps (Intel® I225-V)
Display
  • 2 x HDMI 1.4b
Audio
  • 1 x Line-out
Storage
  • 1 x 2.5” SATA HDD(WT)/SSD (7mm and 9.5mm height, removable)
Expansion
  • 1 x M.2 Key E 2230 with PCIe x1 and USB 2.0
  • 1 x PCI Express Mini Card (USB+PCIe signal+nano SIM slot “LTE”)
  • 1 x Flexible I/O window with support for COM3, and DIO (optional)
Others
  • 1 x Phoenix type connector for DC power input
  • 1 x Switch for power on/off (ATX)
  • 1 x Remote power switch
  • 1 x Grounding hole
  • TPM 2.0
Touchscreen
  • Projected capacitive touch
Front Bezel
  • IP65 front bezel
Power Supply
  • 10 to 36V DC-in (typical 12/24VDC) via terminal block
Power Comsumption
  • 120W
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • -10°C to +50°C (35W CPU/SSD)
Relative Humidity
  • 10% to 95% @ +40°C; non-condensing
Vibration
  • 1G/5 to 500Hz/operation (SSD, random)
Dimensions
(W x D x H)
  • 542 x 76.4 x 338 mm (21.34" x 3.01" x 13.31")
Weight (net/gross)
  • 8.7 kg (19.18 Ib)/12.40 kg (27.34 Ib)
Certifications
  • CE Class A, IEC/EN 61000-6-4, and IEC/EN 61000-6-2
  • FCC 47 CFR Part 15 Subpart B (Class A)
  • UKCA
  • RoHS standard
EOS
  • Win10, Win10 IoT, Win11, Win11 IoT, Linux
Mounting
  • Panel mount
  • VESA mount
  • Desktop stand
  • Wall mount

Ordering Information

  • GOT321B-ADL-WCD (P/N-E22B321B00)
    21.5" FHD TFT fanless touch panel computer with LGA1700 socket 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3 or Pentium® processor (up to 35W), 10-point projected capacitive multi-touch screen, and 10 to 36V DC-in terminal block connector
  • 4G LTE kit
  • Wi-Fi kit
  • 594K6220210E
    Remote power cable, L= 720 mm
  • E29R131114
    Wall mount kit
  • 50906A24000E
    Adapter 24V230W FSP230-AAAN3 WIRE FSP
  • 509000001500
    Adapter 24V120W FSP120-AAAN3 WIRE FSP
  • E392902103
    AX92902 + AX93287 full-size PCI Express Mini module with Gigabit LAN
  • E392903102
    AX92903 full-size PCI Express Mini module with CAN Bus
  • E392906101
    AX92906 full-size PCI Express Mini module with COM
  • E392918103
    AX92918 full-size PCI Express Mini module with 2 Gigabit LAN

Download

Drivers

Date Description Version Download File
2024/08/08 INF VA1
2024/08/08 Penmount touch driver VA
2024/08/08 LAN VA1
2024/08/08 Serial IO VA1
2024/08/08 ME VA1
2024/08/08 Audio VA1
2024/08/08 Graphic VA1

Software

Date Description Version Download File
2026/05/14 PSU tool VA1.1
2024/11/01 OSD AP VA1.0

Manual

Date Description Version Download File
2024/08/08 User's manual VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2024/04/29 UKCA Declaration of Conformity
2024/04/29 CE-Conformity Declaration
2024/04/29 FCC Verification
2024/04/29 CE EMC Verification

Frequently Asked Questions

You Might Also Like

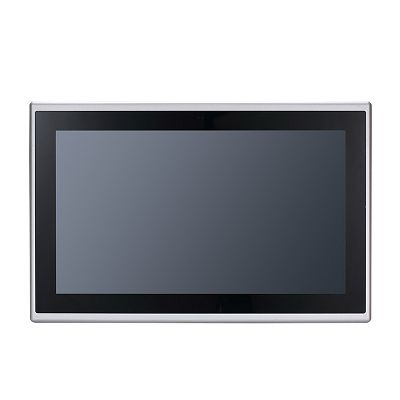

Picture of GOT315B-ADL-WCD

GOT315B-ADL-WCD

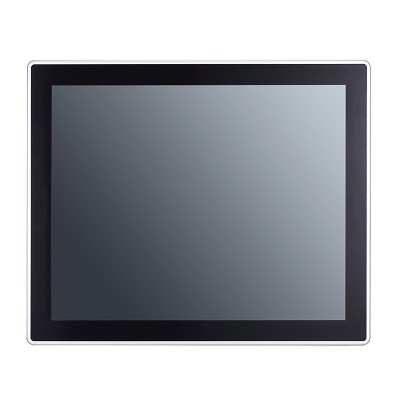

Picture of GOT317B-ADL-TRD
