GOT110-316

Status : Available

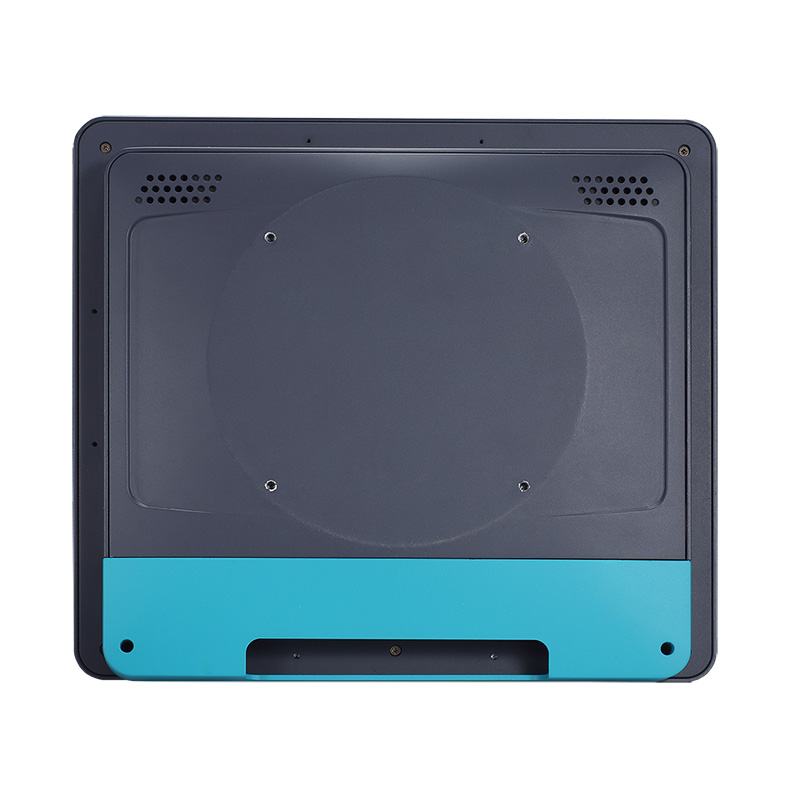

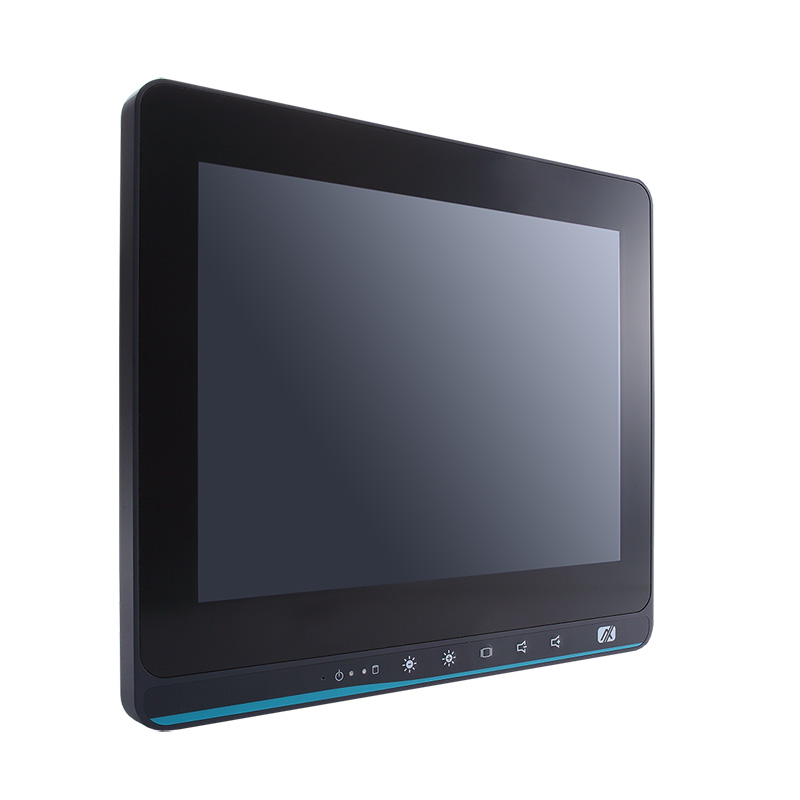

10.4" XGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3350 or Intel® Pentium® Processor N4200

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT110-316
GOT110-316
GOT110-316
GOT110-316
Dual-View

Dual-View

Fanless

Fanless

IP65 Rating

IP65 Rating

Low Power

Low Power

TPM

TPM

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 10.4" XGA TFT LCD display with LED backlight
  • Fanless design with Intel® Celeron® processor N3350 or Intel® Pentium® processor N4200

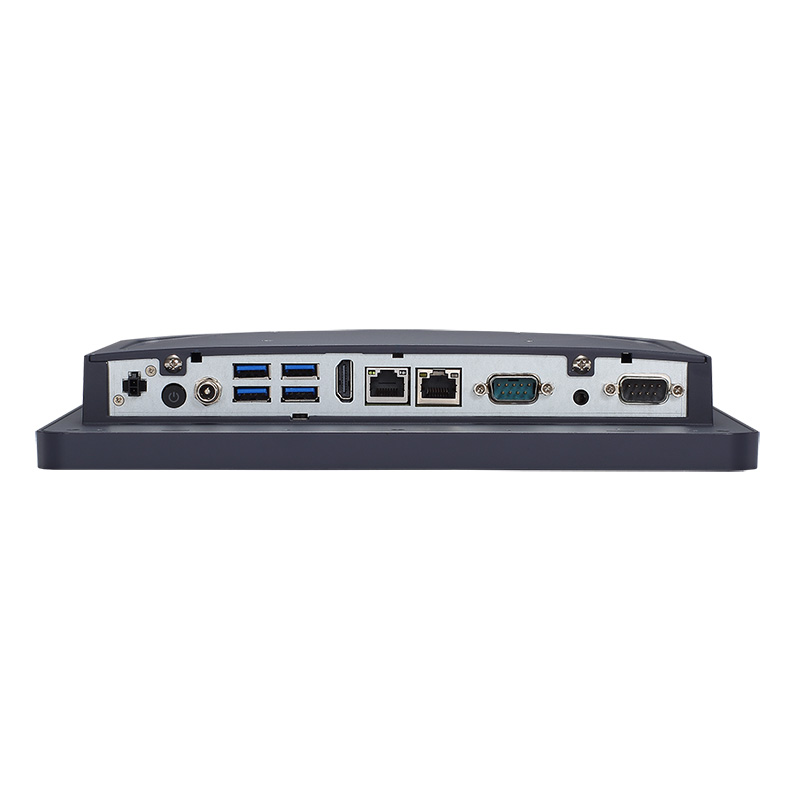

  • 2 GbE LAN, 4 USB, and 2 COM
  • IP65-rated front bezel and IPX1-rated back cover
  • Peripheral support including MSR, RFID, Wi-Fi, and barcode scanner
  • External AT/ATX mode selection switch
  • Easy maintenance design for storage and memory
  • Supports panel mount, wall mount, VESA arm, and desktop stand
  • Adjustable RS-232/422/485 setting via BIOS
  • Aluminum cover for better thermal dissipation and reliability

Specifications

LCD Panel
  • 10.4" XGA TFT LCD
  • 350 nits
  • 1024 x 768 pixels
CPU
  • Intel® Celeron® processor N3350, up to 2.4GHz
  • Intel® Pentium® processor N4200, up to 2.5GHz
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1600, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (default RS-232)
  • 1 x RS-232
USB
  • 4 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps Ethernet
Display
  • 1 x HDMI
Audio
  • 1 x Audio (Line-out)
Storage
  • 1 x 2.5" SATA HDD (9.5 mm height)
  • 1 x mSATA
Expansion
  • 1 x Full-size PCI Express Mini Card slot with mSATA
  • 1 x Full-size PCI Express Mini Card slot with SIM
Others
  • 1 x Screw-type connector for power
  • 1 x Power button (ATX)
  • 1 x Remote power switch
  • 1 x ATX/AT selectable switch
  • fTPM2.0
Touchscreen
  • Projected capacitive multi-touch
  • 5-wire flat resistive touch
Front Bezel
  • IP65, NEMA 4 rugged protection, plastic front bezel
Power Supply
  • DC version: 12/19 to 24 VDC adapter cable
  • AC version: 100 to 240 VAC-DC, 60W power adapter
Power Comsumption
  • 24W
Watchdog Timer
  • 255 levels, 0 to 255 sec
Operating Temperature
  • 0°C to +50°C (+32°F to +122°F)
Relative Humidity
  • 20% to 90% @ +40°C; non-condensing
Shock/Vibration
  • 2G, 5 - 500Hz, random for SSD
Dimensions<br>(W x D x H)
  • 259.43 x 43.5 x 232.73 mm (10.21" x 1.71" x 9.16")
Weight (net/gross)
  • 1.8 kg (3.96 lb)/3 kg (6.61 lb)
Certifications
  • CE, FCC
EOS
  • Windows® 11, Windows® 11 IoT and Linux
Mounting
  • Panel mount
  • Desktop stand
  • Wall mount
  • VESA arm

Ordering Information

  • GOT110-316-R-J (P/N-E22B110101)
    10.4" XGA fanless touch panel computer with Intel® Celeron® processor N3350, 5-wire flat resistive touch, AC-DC 60W power adapter (screw type connector), and EMI Class A

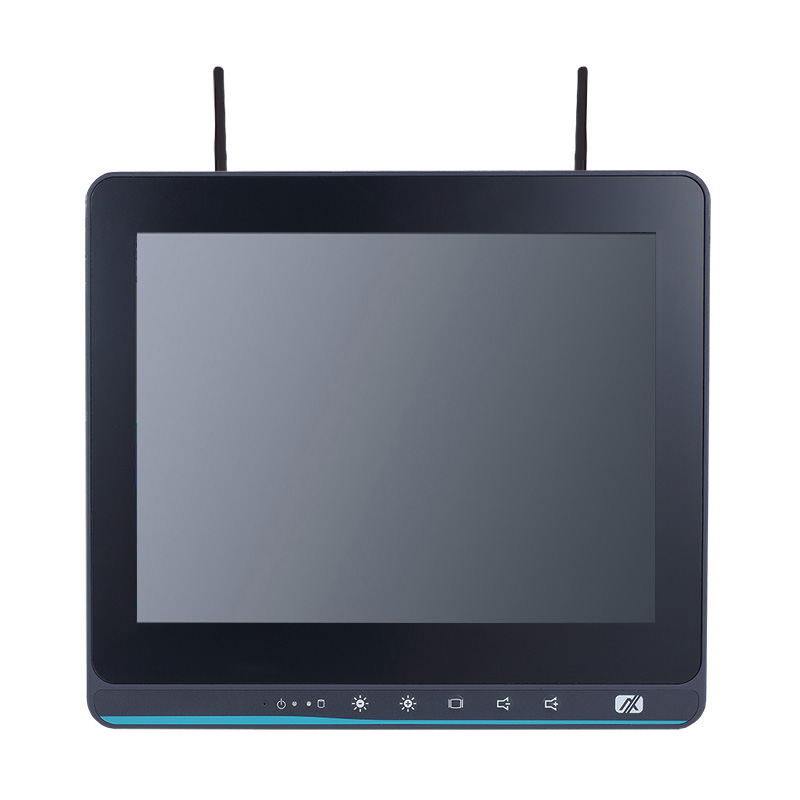

  • External Wi-Fi + Bluetooth kit
  • RFID kit
  • E29R131109
    Panel mount kit
  • E29R131103
    Wall mount kit
  • E226171119
    Stand kit
  • Barcode scanner kit

Download

Drivers

Date Description Version Download File
2021/08/03 Win10_Driver_Volume Control Tool Setup VA1.2
2021/08/03 Win10_Driver_Optional VA1.2
2021/08/03 Win10_Driver_HD Audio VA1.2
2021/08/03 Win10_Driver_LAN VA1.2
2021/08/03 Win10_Driver_TXE VA1.2
2021/08/03 Win10_Driver_Touch VA1.2
2021/08/03 Win10_Driver_Chipset VA1.2
2021/08/03 Win10_Driver_Graphic VA1.2

Software

Date Description Version Download File
2019/05/13 Optional VA1.2

Manual

Date Description Version Download File
2019/03/19 GOT110-316 User's Manual VA3_03-11-2019 VA3

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/02/09 UKCA Declaration of Conformity
2023/02/09 FCC Verification
2023/02/09 CE-Conformity Declaration
2023/02/09 CE EMC Verification

Frequently Asked Questions

You Might Also Like

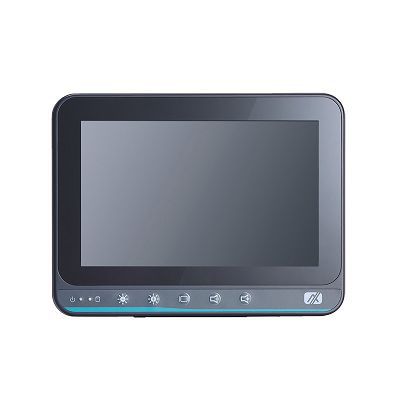

Picture of GOT107W-319
