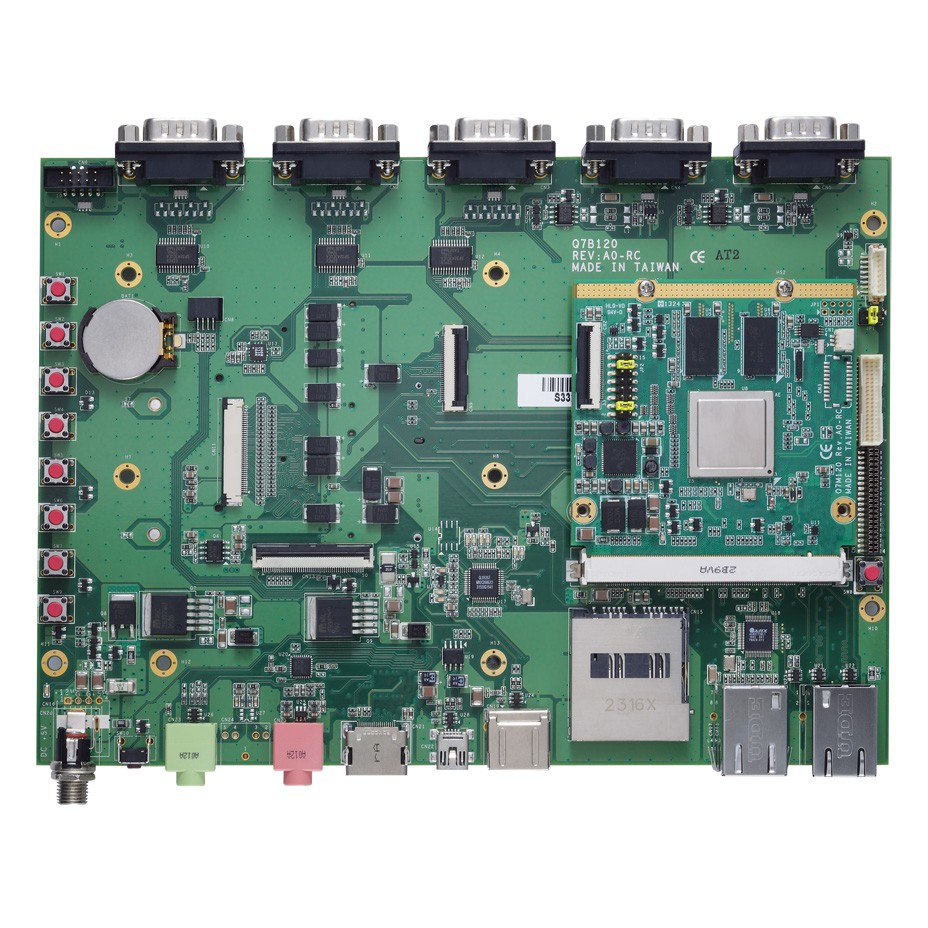

Q7M120-120-EVK

Status : Available

Qseven v2.0 SoM Evaluation Kit with Quad/DualLite 800 MHz (Industrial) SoC, 1GB Memory, 4GB eMMC, Gigabit Ethernet, Audio and CAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
Q7M120-120-EVK
  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Ultra low power consumption Cortex™-A9
  • High flexibility Qseven v2.0 compliant design
  • 2 CAN 2.0B
  • 18/24-bit TTL LCD
  • LVDS/HDMI 1080P
  • 10/100/1000 Mbps Ethernet
  • Linux3.0.35/Android4.3
  • Audio

Specifications

CPU
  • Freescale i.MX6 Quad/DualLite ARM Cortex™-A9 CPU 800 MHz (On Q7M120 SoM)
Chipset
  • SoC Integrated
System Memory
  • Onboard DDR3-1600, up to 1GB (on Q7M120 SoM)
BIOS
  • N/A
COM
  • 4 x COM with TX/RX/RTS/CTS (one with 3.3V TTL level)
  • 1 x Console port
USB
  • 1 x USB 2.0
  • 1 x OTG client
Ethernet
  • 1 x 10/100 Mbps
  • 1 x 10/100/1000 Mbps
Display
  • 1 x HDMI 1080P
  • 1 x Dual channel 24-bit LVDS
  • 1 x 18/24-bit TTL LCD
Audio
  • MIC-in/Headphone
GPIO
  • N/A
I2C
  • 3 x I2C Interface
CAN
  • 2 x CANBus 2.0B
SPI
  • SPI nor Flash
Storage
  • 1 x SD/MMC socket
  • 1 x SATA connector
Expansion
  • 2 x Full size PCI Express Mini Card (with SIM)
Others
  • 8 x button-detect circuit
Battery
  • Battery on the Baseboard is required
Power Requirement
  • +5V ± 5%, 5A
Watchdog Timer
  • N/A
Hardware Monitoring
  • N/A
Operating Temperature
  • N/A
Relative Humidity
  • 10% ~ 95%, non-condensing
Dimensions
  • 210 x 150 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • Q7M120-120-EVK DualLite-I
    Q7M120-120 (DualLite) evaluation kit board
  • Q7M120-120-EVK Quad-I
    Q7M120-120 (Quad) evaluation kit board
  • P/N-5078Q120100E
    Q7M120 heatspread (-40 ˚C ~70 ˚C)
  • P/N-5078Q120200E
    Heatsink (-40 ˚C ~75 ˚C)

Download

Drivers

Software

Manual

Date Description Version Download File
2017/05/04 Q7M120 Q7B120 manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/08 UKCA Declaration of Conformity

You Might Also Like

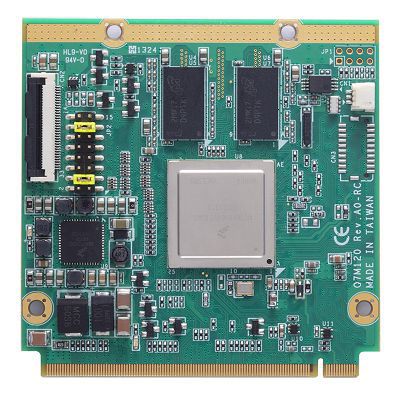

Picture of Q7M120
