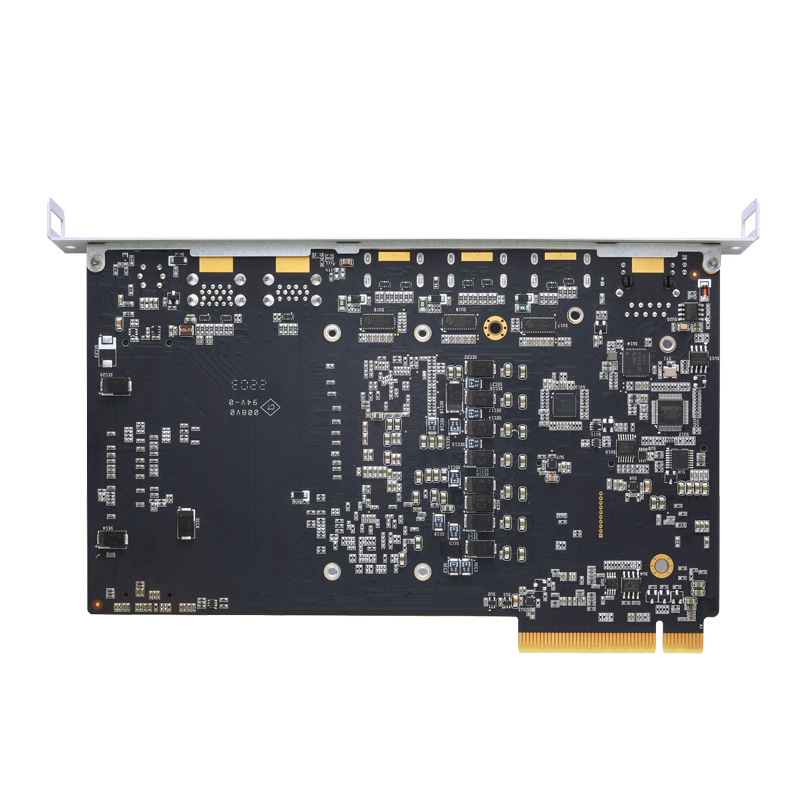

SDM510L

Status : Available

Intel® Smart Display Module Large (Intel® SDM-L) with 13th/12th Gen Intel® Core™ i7/i5/i3 or Intel® Celeron® Processor and Intel® Iris® Xe Graphics with 8K60Hz or up to Four 4K60Hz Videos Supported

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
SDM510L
SDM510L
SDM510L
4K

4K

8K

8K

Intel SDM

Intel SDM

USB 3.2

USB 3.2

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Smart Display Module (Intel® SDM) specification
  • 13th/12th gen Intel® Core™ i7/i5/i3 or Intel® Celeron® processor
  • 2 DDR4-3200 SO-DIMM
  • Supports M.2 Key E and M.2 Key M slots
  • 3 HDMI, 3 USB 3.2 Gen2, 1 USB 2.0, and 1 LAN
  • Supports Intel® OpenVINO™ and Intel vPro®

Specifications

CPU
  • 13th/12th gen Intel® Core™ i7/i5/i3 or Intel® Celeron® processor
Chipset
  • SoC integrated
System Memory
  • 2 x 260-pin DDR4-3200 SO-DIMM
SDM Edge connector
  • 1 x USB 3.0
  • 1 x HDMI 2.1 (8K60Hz)
  • 1 x DisplayPort 1.4
  • 1 x Serial TX/RX
  • 2 x I2C
I/O
  • 1 x 2.5GbE with Intel® I225; supports Wake-on LAN (Intel® Core™ i7 and i5 support Intel vPro® function)
  • 3 x HDMI 2.0 (4K60Hz)
  • Audio by HDMI
  • 3 x USB 3.2 Gen2
  • 1 x USB 2.0
Storage
  • 1 x M.2 Key M 2242 slot
Expansion
  • 1 x M.2 Key E 2230 slot for Wi-Fi/Bluetooth
Power Input
  • Through SDM golden finger
  • +12V & +3.3VSB
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Dimensions
  • 175 x 100 mm
Weight (net/gross)
  • 252g/340g
Board Thickness
  • 1.6 mm
Operation Humidity
  • 10% - 95% relative humidity, non-condensing
Operating Temperature
  • 0ºC to 60ºC (+32°F to +140°F)

Ordering Information

  • SDM510L-I5H-3H1 (P/N-E38X510L01)
    SDM-L module with 12th gen Intel® Core™ i5-12600HE processor (45W), 2 SO-DIMM, 1 M.2 SSD, 3 HDMI, 1 LAN, 3 USB 3.2 Gen2, and 1 USB 2.0
  • SDM510L-I3U-3H1 (P/N-E38X510L00)
    SDM-L module with 12th gen Intel® Core™ i3-1215UE processor (15W), 2 SO-DIMM, 1 M.2 SSD, 3 HDMI, 1 LAN, 3 USB 3.2 Gen2, and 1 USB 2.0
  • SDM510L-CLU-3H1 (P/N-E38X510L02)
    SDM-L module with 12th gen Intel® Celeron processor 7305E (15W), 2 SO-DIMM, 1 M.2 SSD, 3 HDMI, 1 LAN, 3 USB 3.2 Gen2, and 1 USB 2.0
  • SDM510L-U3E-3H1 (P/N-E38X510L06)
    SDM-L module with 13th gen Intel® Celeron® processor U300E (15W), 2 SO-DIMM, 1 M.2 SSD, 3 HDMI, 1 LAN, 3 USB 3.2 Gen2, and 1 USB 2.0
  • SDML-I5U-3H1 (P/N-E38X510L08)
    SDM-L module
  • 8812T1500A0E
    Wi-Fi kit
  • E29R323100
    Intel AX210 Wi-Fi kit
  • M.2 SSD
    M.2 Key M 2242; 64GB to 256GB
  • DDR4 SO-DIMM
    DDR4 4GB to 32GB
