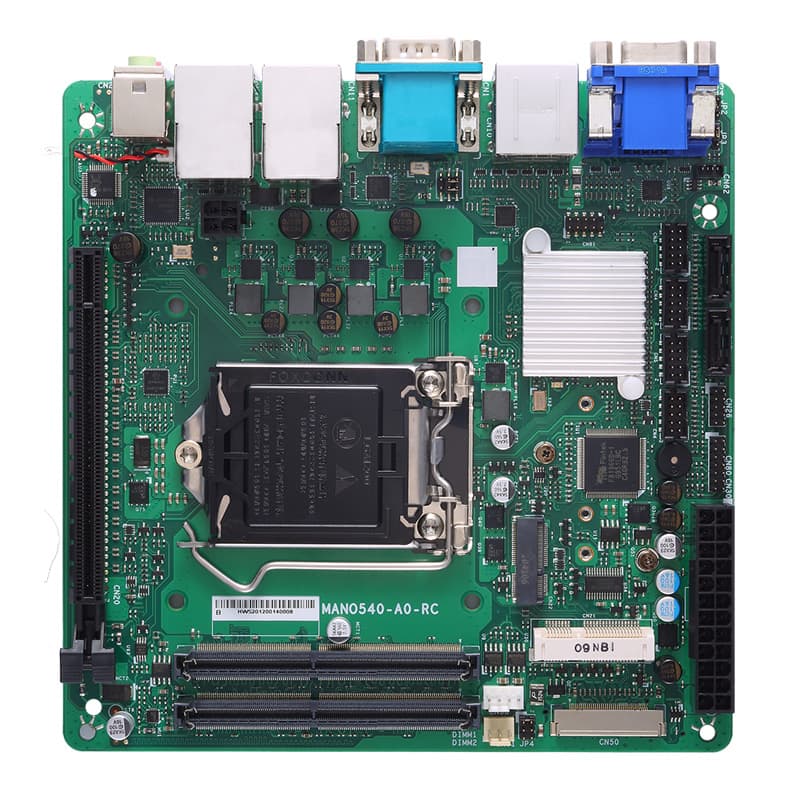

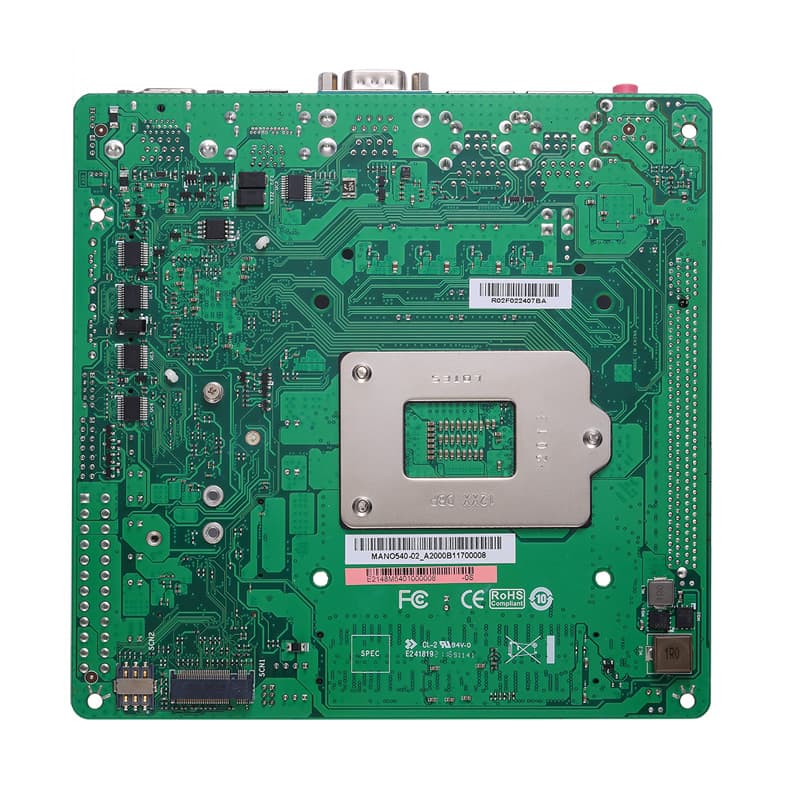

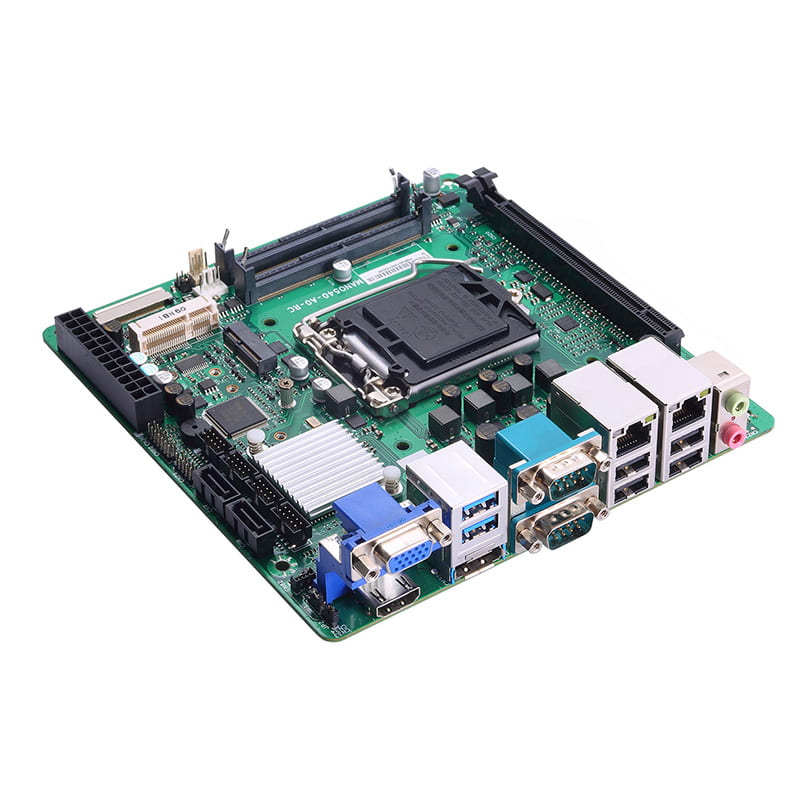

MANO540

Status : Available

Mini-ITX SBC with FCLGA1200 10th Gen Intel® Core™ i9/i7/i5/i3, DisplayPort++, HDMI, VGA, eDP, USB 3.2, M.2 and Dual GbE LAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
MANO540
MANO540
MANO540
Dual-View

Dual-View

Fanless

Fanless

PCIe Expansion

PCIe Expansion

TPM

TPM

USB 3.2

USB 3.2

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • FCLGA1200 10th gen Intel® Core™ i9/i7/i5/i3 processor
  • Intel® H410 chipset
  • 2 DDR4 SO-DIMM for up to 64GB memory
  • 2 USB 3.2 Gen1 and 5 USB 2.0
  • 6 COM port
  • 1 PCIe x16 and 1 M.2 Key E slot
  • 1 Full-size mini-PCIe slot
  • 2 SATA-600
  • 1 M.2 Key B for USB 3.2 interface 5G module

Specifications

CPU
  • FCLGA1200 10th gen Intel® Core™ i9/i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (up to 65W)
Chipset
  • Intel® H410
System Memory
  • 2 x 260-pin DDR4-2933/2666/2400 SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (with +5V/+12V power)
  • 1 x RS-232
USB
  • 2 x USB 3.2 Gen1
  • 5 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet (Intel® I210-AT)
  • 1 x 10/100/1000 Mbps Ethernet (Intel® I219-V)
Display
  • 1 x DisplayPort++
  • 1 x HDMI 2.0
  • 1 x eDP
  • 1 x VGA
Digital I/O
  • 8-channel in/out programmed
Audio
  • MIC-in/Line-out
Storage
  • 1 x M.2 Key B 2242/2280
  • 2 x SATA-600
Expansion
  • 1 x PCIe x16
  • 1 x M.2 Key B 3042/3052 for 5G module (USB 3.2 Gen1)
  • 1 x M.2 Key E 2230
  • 1 x PCIe Mini Card slot
Others
  • Onboard TPM 2.0 (optional)
Battery
  • Lithium 3V/220mAH
Power Input
  • Standard 12V ATX power
  • 24+4 pin ATX connector
  • AT Mode Auto Power Function supported
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 170 x 170 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • MANO540-H410-I210 (P/N-E38M540104)
    Mini-ITX SBC with FCLGA1200 10th gen Intel® Core™ i9/i7/i5/i3 processor, DisplayPort++, HDMI, VGA, eDP, USB 3.2, M.2 Key B, dual GbE LAN, HD Audio, and bulk packing
  • MANO540-H410-I210 (P/N-E38M540105)
    Mini-ITX SBC with FCLGA1200 10th gen Intel® Core™ i9/i7/i5/i3 processor, DisplayPort++, HDMI, VGA, eDP, USB 3.2, M.2 Key B, dual GbE LAN, HD Audi,o and Single box packing
  • 590000039200
    COM cable D-SUB9P to DuPont 2x5 P2.0 L=300 mm
  • 594P8802810E
    USB to 1.25 mm 4-pin housing, L=150 mm
  • 71377AGC000E
    FCLGA1200 1.5U Cooler
  • E272500101
    ECM500, embedded MicroBox for low power Mini-ITX SBC

Download

Drivers

Date Description Version Download File
2023/05/11 Intel ME Driver_2 VA1.1
2023/05/11 Intel ME Driver_1 VA1.1
2023/05/09 LAN Driver VA1.1
2023/05/09 Graphics Driver VA1.1
2023/05/09 Audio Driver VA1.1
2023/05/09 Intel Chipset Driver VA1.1

Software

Manual

Date Description Version Download File
2023/05/09 User Manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/06/30 CE-Conformity Declaration
2021/12/03 UKCA Declaration of Conformity
