What processor does the MANO321 use? + It is powered by the Intel® Celeron® J6412 processor (Elkhart Lake), delivering energy-efficient performance for IoT and embedded applications.
How much memory does the MANO321 support? + The motherboard features two DDR4 SO-DIMM slots and supports up to 32GB of system memory.

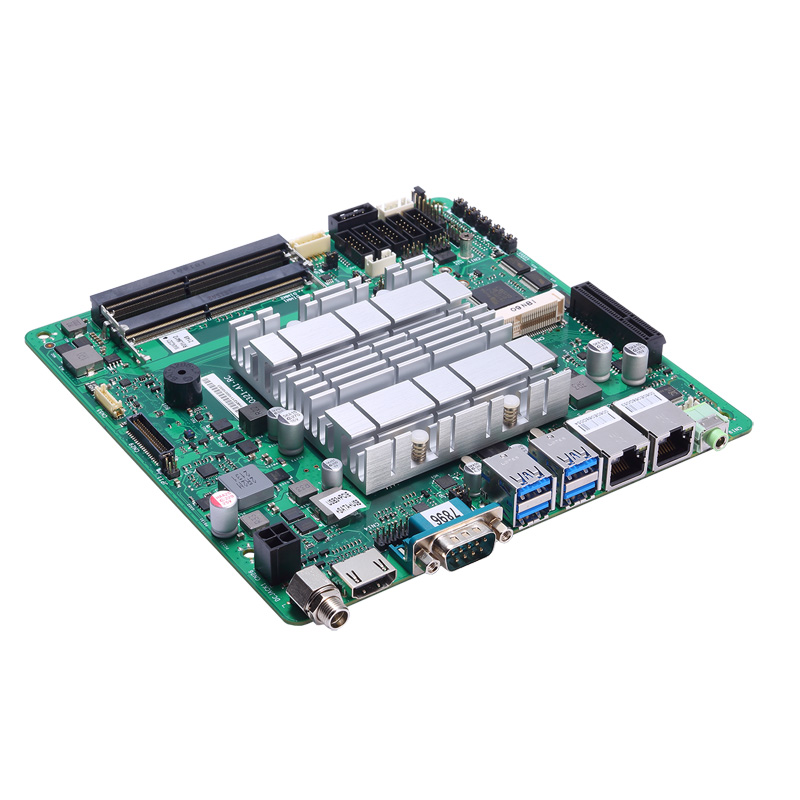

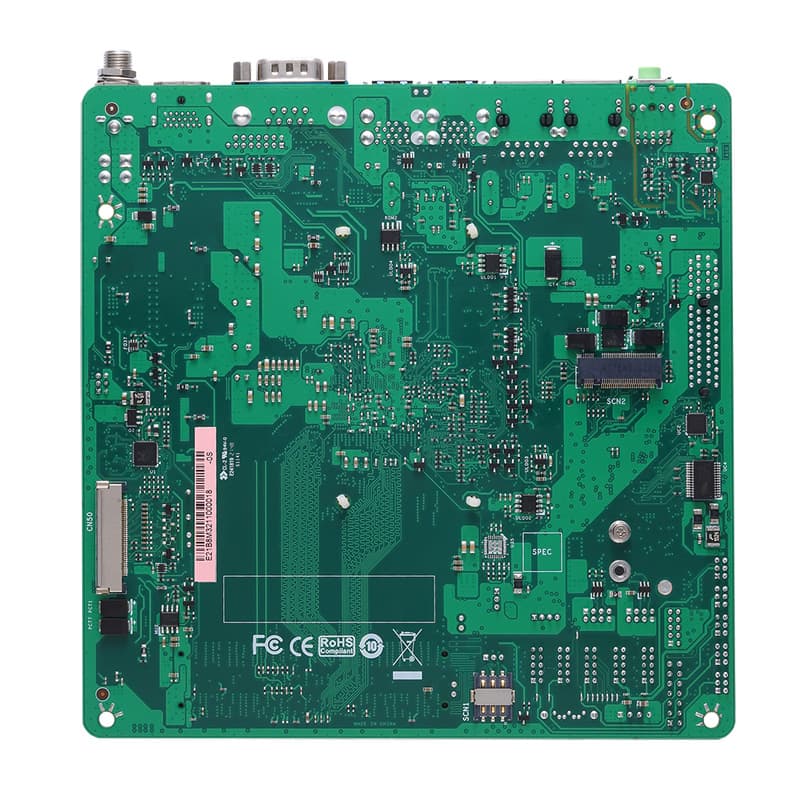

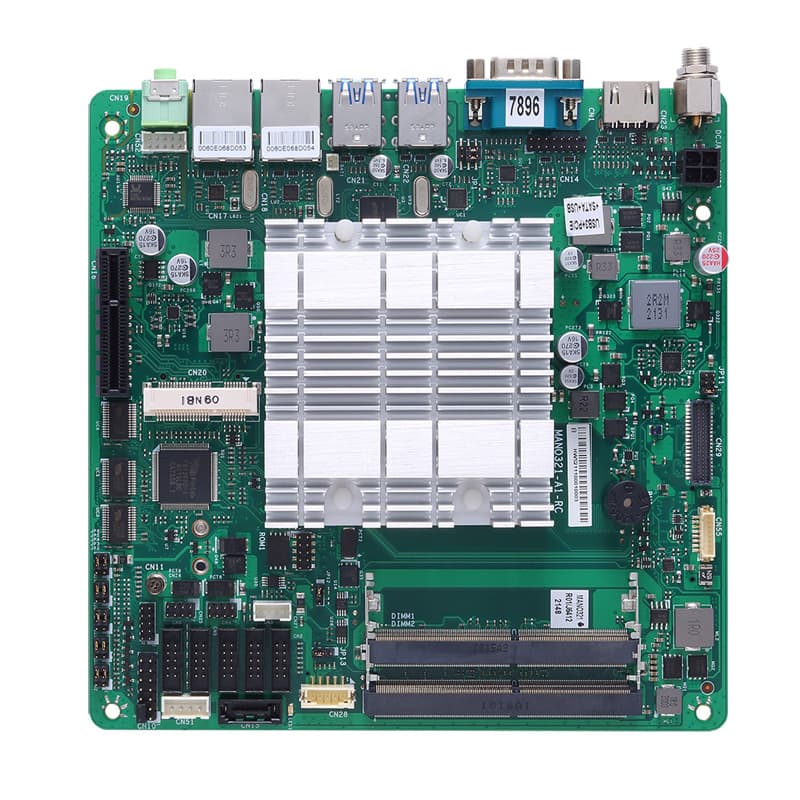

What makes the MANO321 suitable for space-constrained environments? + Its low-profile Thin Mini-ITX design reduces board height compared to standard Mini-ITX, making it ideal for compact installations.
Does the MANO321 support 5G connectivity? + Yes, it includes an M.2 Key B slot and SIM card slot, allowing integration of 5G modules for high-speed wireless communication.
What display outputs are supported? + The MANO321 supports triple display via HDMI, VGA, and LVDS, making it suitable for multi-screen applications.
What storage options are available? + It supports SATA storage, mSATA, SD card (SDHX), and M.2 Key B (also compatible with SATA SSD), offering flexible storage configurations.
What expansion options does the motherboard provide? + It includes one PCIe x4 slot (with PCIe x2 signal) and one PCI Express Mini Card slot for additional modules and customization.
What I/O interfaces are available? + The MANO321 offers rich I/O, including six COM ports, USB 3.1 and USB 2.0 ports, dual Gigabit LAN, DIO, HDMI, VGA, LVDS, and SMBus.
Is the MANO321 suitable for industrial environments? + Yes, it is designed with industrial-grade features, including reliable connectivity, multiple I/O options, and robust performance for IoT deployment.
Does it include security features? + Yes, it supports TPM 2.0 and includes a watchdog timer for enhanced system security and reliability.
Which operating systems are supported? + The MANO321 supports both Windows and Linux operating systems.
What applications is the MANO321 best suited for? + It is ideal for industrial automation, IoT gateways, digital signage, smart transportation systems, and other edge computing applications.
