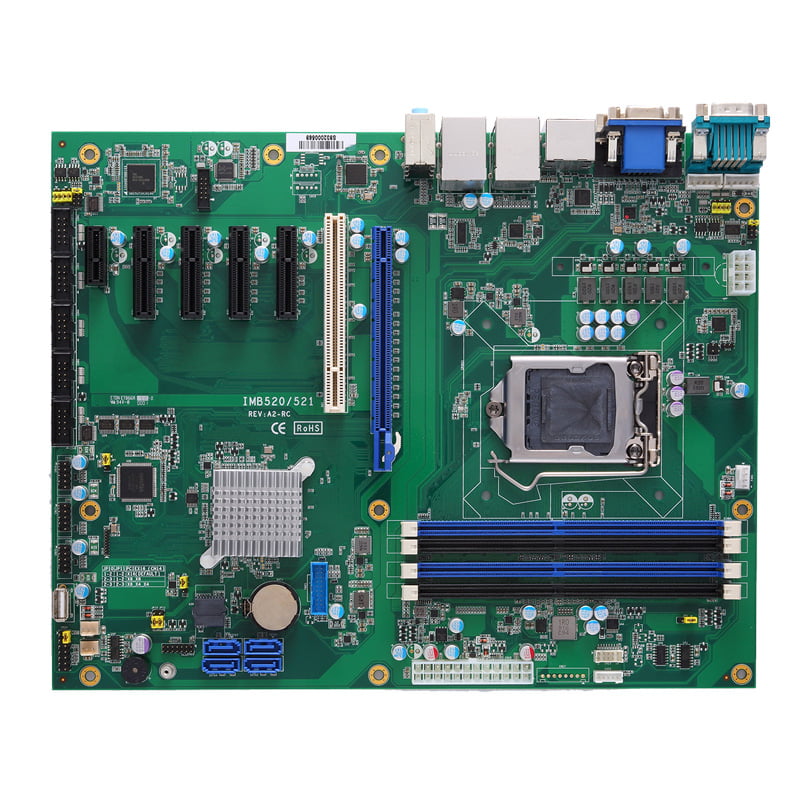

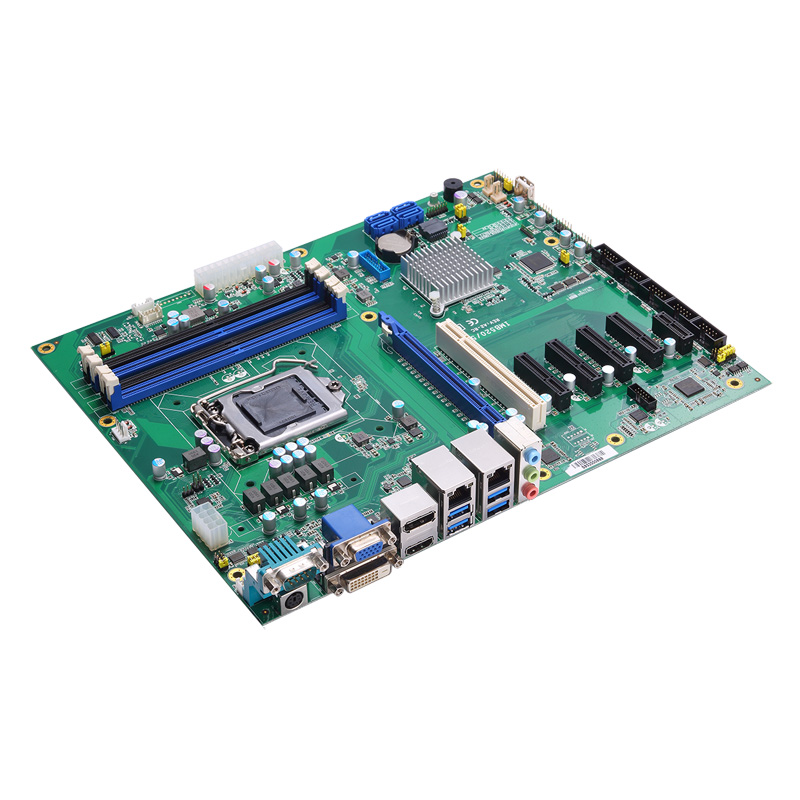

IMB521R

Status : Available

ATX Motherboard with LGA1151 Socket 9th/8th Gen Intel® Core™ i7/i5/i3, Xeon® E Processor, Intel® C246, ECC DDR4, USB 3.2 Gen1/Gen2, SATA 3.0, Dual LAN, VGA, DisplayPort++, DVI-D, and HDMI

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
IMB521R
IMB521R
PCIe Expansion

PCIe Expansion

TPM

TPM

Triple-View

Triple-View

USB 3.2

USB 3.2

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E, Pentium® or Celeron® processor (Coffee Lake Refresh)
  • Four 288-pin DDR4-2666/2400 ECC DIMM for up to 128GB of memory
  • DisplayPort++, VGA, DVI-D and HDMI with triple-view supported
  • 4 SATA-600 with RAID 0/1/5/10
  • 2 USB 3.1 Gen2 and four USB 3.1 Gen1
  • TPM 2.0 supported (optional)

Specifications

CPU
  • LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E, Pentium® or Celeron® processor (up to 95W)
Chipset
  • Intel® C246
System Memory
  • 4 x 288-pin DDR4-2666/2400 ECC DIMM, up to 128GB (Intel® Core™ i7/i5 only support non-ECC)
BIOS
  • AMI
COM
  • 4 x RS-232 (Internal box header)
  • 2 x RS-232/422/485 (1 rear I/O, 1 internal box header)
USB
  • 2 x USB 3.2 Gen2x1 (10Gbps, rear I/O)
  • 4 x USB 3.1 Gen1 (rear I/O, internal box header)
  • 7 x USB 2.0 (pin header, 180D type A)
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® I219-LM, AMT)
  • 1 x 10/100/1000 Mbps (Intel® I210-AT)
Display
  • 1 x VGA
  • 1 x DVI-D
  • 1 x HDMI
  • 1 x DisplayPort++
Digital I/O
  • 8-channel programmable
Audio
  • HD Codec audio as MIC-in/Line-in/Line-out with Realtek ALC888
Storage
  • 4 x SATA-600 with RAID 0/1/5/10
Expansion
  • 1 x PCIe x16 slot
  • 4 x PCIe x4 slot
  • 1 x PCIe x1 slot
  • 1 x PCI
Others
  • 1 x PS/2 keyboard and mouse
Battery
  • Lithium 3 V/ 220 mAH
TPM
  • TPM 2.0 (optional)
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 305 x 244 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • IMB521R (P/N-E38F521103)
    ATX motherboard with LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Xeon® E, Pentium® or Celeron® processor, Intel® C246, USB 3.2 Gen2x1 (10Gbps), SATA 3.0, 2 GbE LAN, VGA, DisplayPort++, DVI-D, and HDMI
  • 5938A808010E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=190 mm
  • 5938A808020E
    2 x USB 2.0 cable with bracket, P=2.54 mm, L=400 mm
  • 5948C122800E
    2 x USB 3.2 Gen1 cable with bracket, L=400 mm
  • 59380000290E
    PS/2 keyboard & mouse cable with bracket
  • 593826A0000E
    SATA signal cable/red, L=500 mm
  • 59384500100E
    Audio cable with bracket, P=2.0 mm, L=450 mm
  • 59380402010E
    1 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 59380703000E
    2 x COM port cable with bracket, P=2.54 mm, L=300 mm
  • 83935151000E
    TPM 2.0 module (AX93515)
  • 5076E510000E
    CPU heatsink for 1U chassis (AX61135TM)
  • 50761222000E
    CPU cooler for 2U, 4U, and wall mount chassis

Download

Drivers

Date Description Version Download File
2023/03/24 ME Driver V1.2
2023/03/24 WIn11_64_Intel LAN Driver V1.2
2023/03/24 Graphic Driver V1.2
2023/03/24 RST Driver V1.2
2023/03/24 Audio Driver V1.2
2023/03/24 Chipset Driver V1.2
2023/03/24 LAN Driver V1.2

Software

Manual

Date Description Version Download File
2020/09/08 User's Manual V2.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/03 UKCA Declaration of Conformity
2020/05/05 CE-Conformity Declaration
