CAPA332

Status : Available

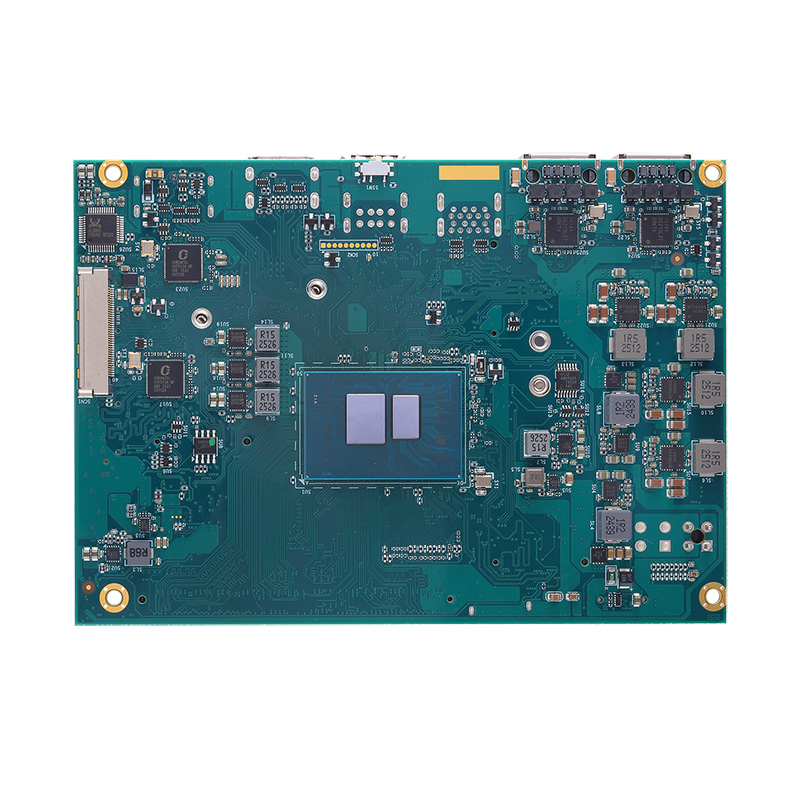

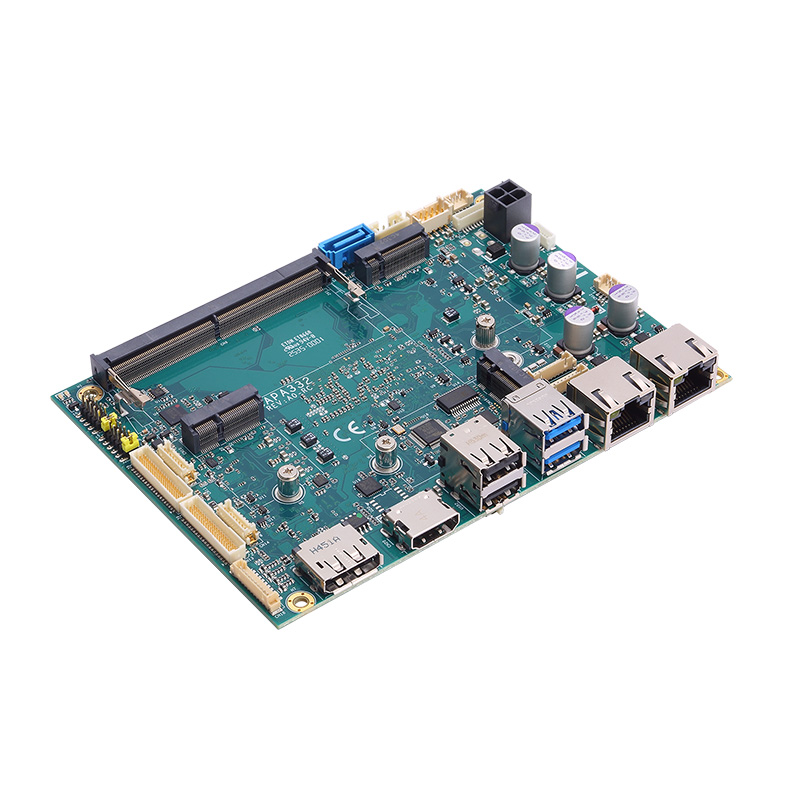

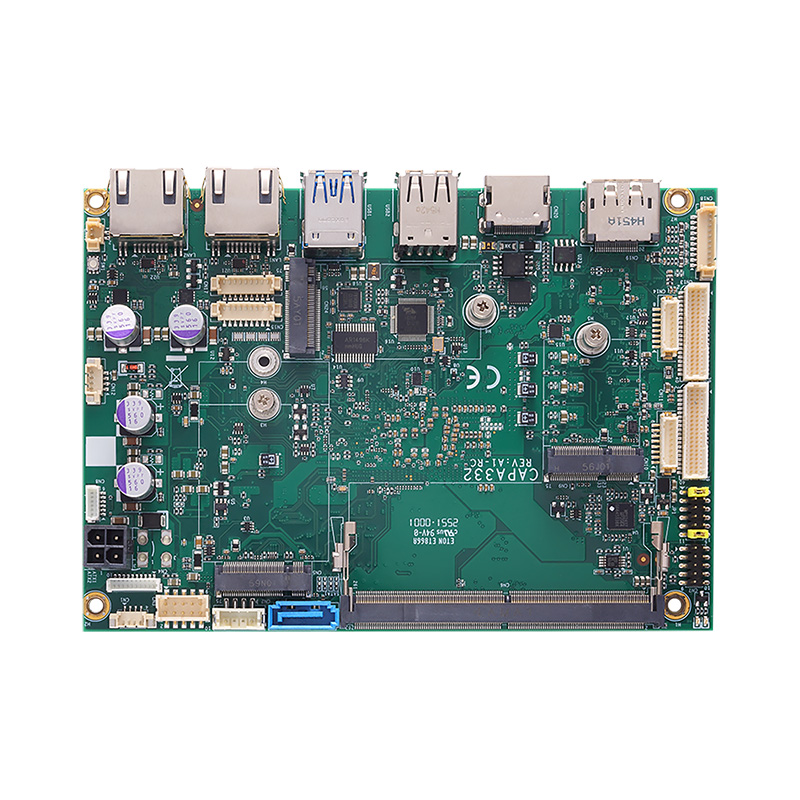

3.5" Embedded SBC with Intel® Processor N97/N150, HDMI, DisplayPort, LVDS, Two 2.5GbE, and Audio

Datasheet (PDF)
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
CAPA332
CAPA332
CAPA332
2.5G LAN

2.5G LAN

Solid CAP

Solid CAP

TPM

TPM

Triple-View

Triple-View

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® processor N97/N150
  • DDR5-4800 SO-DIMM for up to 32GB
  • 2 2.5GbE ports
  • 3 M.2 expansion slots

Specifications

CPU
  • Intel® processor N97/N150
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR5-4800 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 1 x RS-232
  • 1 x RS-232/422/485
USB
  • 2 x USB 3.2
  • 4 x USB 2.0
Ethernet
  • 2 x 2.5GbE with Intel® I226-V
Display
  • 1 x HDMI 1.4
  • 1 x LVDS
  • 1 x DisplayPort
  • 1 x eDP (optional)
  • 1 x LVDS (optional)
Digital I/O
  • 8-channel in/out programmed
Audio
  • 1 x Mic-in/Line-in/Line-out
Storage
  • 1 x SATA 3.0
  • 1 x M.2 Key M 2242 (PCIe x2)
Expansion
  • 1 x M.2 Key E 2230 (PCIe x1/USB 2.0)
  • 1 x M.2 Key B 3042/3052 (USB 3.2 Gen 2/USB 2.0)
  • 1 x SIM connector via pin header
Others
  • TPM 2.0 onboard
Battery
  • Lithium 3V/220mAH
Power Input
  • 2 x 2-pin connector
  • 12V and 19–24V DC-in (12V-only optional)
  • AT Auto Power On function supported
Power Requirements
  • N97: 23.56W
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • Passive: -20°C to +70°C (+32°F to +158°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 146 x 104 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis
  • N/A

Ordering Information

  • CAPA332-N97-L (P/N-E38E332100)
    3.5" SBC with Intel® processor N97 (2.0 to 3.6 GHz, 6MB cache, 12W), HDMI, DisplayPort, LVDS, 2.5GbE, audio, and heatsink
  • CAPA332-N150-L (P/N-E38E332101)
    3.5" SBC with Intel® processor N150 (1.0 to 3.6 GHz, 6MB cache, 6W), HDMI, DisplayPort, LVDS, 2.5GbE, audio, and heatsink
  • AX93A19 (P/N-E393A19100)
    SIM card slot board
  • 594E8422800E
    2 USB 2.0 wafer cables with bracket, 180 mm
  • 59380880250E
    COM port cable DB-9 x 1P, P=1.25 mm, L=250 mm
  • 594H3186800E
    Buzzer cable 9 x 5.5 mm 2-pin, L=40 mm
