PICO52R

Status : Available

Pico-ITX SBC with 8th Gen Intel® Core™ i7/i5/i3 & Celeron® Processor, DisplayPort++, HDMI, LVDS, and 2 GbE LAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
PICO52R
PICO52R
PICO52R
PICO52R
Pocket Size

Pocket Size

Solid CAP

Solid CAP

Triple-View

Triple-View

USB 3.2

USB 3.2

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 8th gen Intel® Core™ i7/i5/i3 and Celeron® processor
  • 1 DDR4 SO-DIMM for up to 32GB of memory
  • 2 USB 2.0 and 2 USB 3.2 Gen1
  • 2 GbE LAN
  • M.2 Key E
  • Intel® AMT 11 supported

Specifications

CPU
  • 8th gen Intel® Core™ i7/i5/i3 and Celeron® processor onboard
Chipset
  • SoC integrated
System Memory
  • 1 x 260-pin DDR4-2400 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 2 x USB 2.0
  • 2 x USB 3.2 Gen1
Ethernet
  • 1 x 10/100/1000 Mbps Ethernet (Intel® I219-LM)
  • 1 x 10/100/1000 Mbps Ethernet (Intel® I210-AT)
Display
  • 1 x DisplayPort++
  • 1 x HDMI 1.4
  • 1 x LVDS
Digital I/O
  • 4-channel in/out programmable
Audio
  • N/A
Storage
  • 64GB/128GB eMMC (optional)
  • 1 x SATA-3
Expansion
  • 1 x M.2 Key E (PCIe x1, USB 2.0 in 22x30)
Others
  • I2C
Battery
  • Lithium 3V/220 mAh
Power Input
  • 2 x 2-pin connector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • Intel® Core™ i7-8665UE @1.7 GHz 16GB DDR4, min. RMS. +12V@2.9A
  • Intel® Core™ i5-8365UE @1.6 GHz 16GB DDR4, min. RMS. +12V@2.7A
  • Intel® Core™ i3-8145UE @2.2 GHz 16GB DDR4, min. RMS. +12V@2.3A
  • Intel® Celeron® 4305UE @2.0 GHz 16GB DDR4, min. RMS. +12V@2.0A
Watchdog Timer
  • 65536 levels, 0 to 65535 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20°C to +60°C (-4°F to 140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 100 x 72 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis

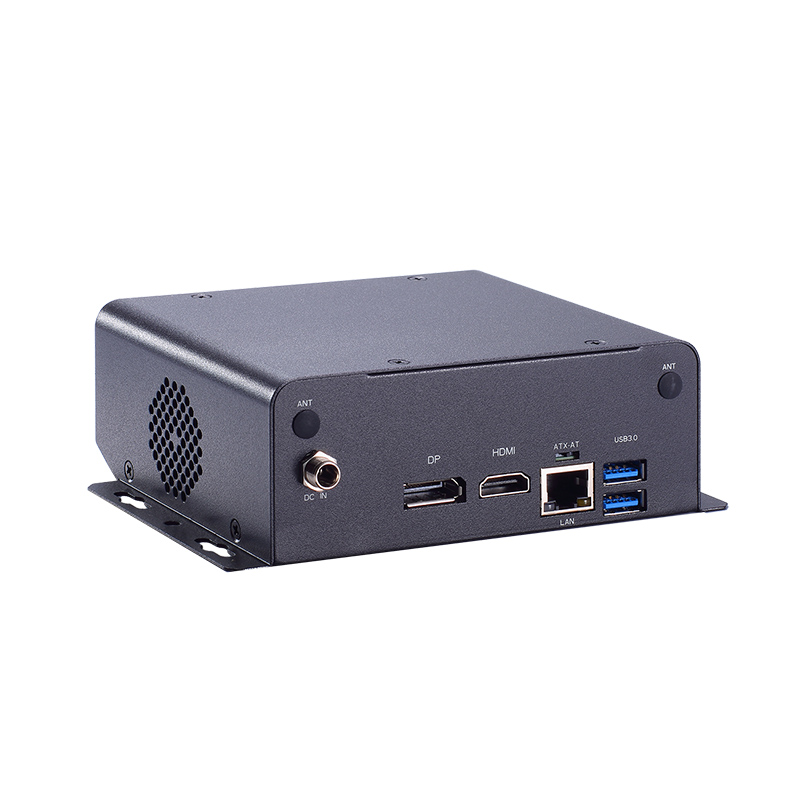

  • APC201-i3-8145UE (P/N-E27P201100): Embedded chassis with PICO52RHPGG-i3-8145UE (w/ fan), 8GB RAM, 64GB eMMC and 12V/60W adapter
  • I/O: 1 x GbE LAN, 2 x USB 3.2 Gen1, 1 x DisplayPort++, 1 x HDMI, 1 x 12V DC Jack
  • Dimensions (with wall mount ear): 152.5 mm (6”) (W) x 107.5 mm (4.23”) (D) x 50mm (1.97”) (H)
  • Operating Temperature: -10°C to +50°C (+14°F to +122°F)

Ordering Information

  • PICO52RHPGG-i7-8665UE (P/N-E38H52R100)
    8th gen Intel® CoreTM i7-8665UE Pico-ITX SBC with DisplayPort++, HDMI, LVDS, and 2 GbE LAN
  • PICO52RHPGG-i5-8365UE (P/N-E38H52R101)
    8th gen Intel® CoreTM i5-8365UEU Pico-ITX SBC with DisplayPort++, HDMI, LVDS, and 2 GbE LAN
  • PICO52RHPGG-Celeron-4305UE (P/N-E38H52R103)
    8th gen Intel® Celeron® 4305UE Pico-ITX SBC with DisplayPort++, HDMI, LVDS, and 2 GbE LAN
  • PICO52RHPGG-i7-8665UE W/FAN (P/N-E38H52R107)
    8th gen Intel® CoreTM i7-8665UE Pico-ITX SBC with DisplayPort++, HDMI, LVDS, 2 GbE LAN and fan
  • PICO52RHPGG-i5-8365UE W/FAN (P/N-E38H52R108)
    8th gen Intel® CoreTM i5-8365UE Pico-ITX SBC with DisplayPort++, HDMI, LVDS, 2 GbE LAN and fan
  • PICO52RHPGG-CELERON-4305UE W/FAN (P/N-E38H52R110)
    8th gen Intel® Celeron® 4305UE Pico-ITX SBC with DisplayPort++, HDMI, LVDS, 2 GbE LAN and fan
  • APC201-i3-8145UE (P/N-E27P201100)
    APC201 w/ i3-8145UE, 8GB RAM, 64GB eMMC and 12V/60W adapter
  • 7128H51R000E
    Heatspreader
  • 590000086600
    DC power cable for adapter, L=180 mm
  • 50966124050E
    Adapter 12V 60W FSP060-DHAN3 with screw
  • 59380880250E
    COM port cable DB9--9x1P, P=125 mm, L=250 mm
  • 594H51R2810E
    USB cable 2 x 5P-cut P9 P2.0/2 x USB-4P, L=180 mm
  • 594H3186800E
    Buzzer cable 9 x 5.5 mm 2-pin, L=40mm

Download

Drivers

Date Description Version Download File
2022/03/25 LAN Driver VA1.1
2022/03/25 ME Firmware VA1.1
2022/03/25 RST Driver VA1.1
2022/03/25 Graphics Driver VA1.1
2022/03/25 Chipset Driver VA1.1

Software

Manual

Date Description Version Download File
2023/06/14 User's Manual VA3

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/03 UKCA Declaration of Conformity
2021/04/14 CE-Conformity Declaration
