AX92322

Status : Available

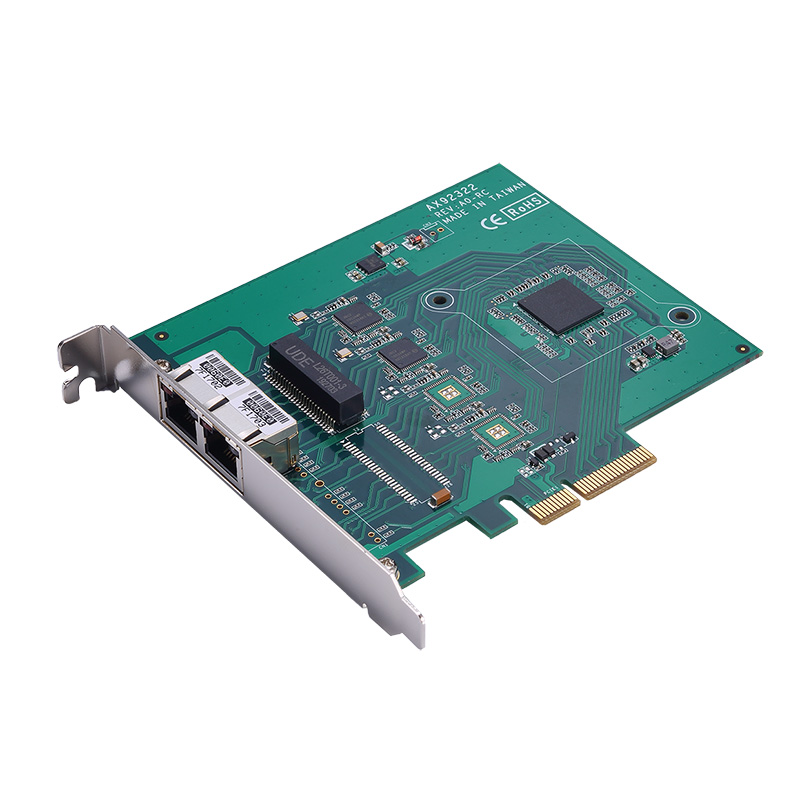

2-port/4-port GigE PCI Express Card

Datasheet
Datasheet (PDF)
Get a Quote
Get a Quote
AX92322
AX92322
AX92322
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 2 or 4 independent Intel® Ethernet Controller i210-AT
  • Supports 9.5KB Jumbo Frame and IEEE 1588
  • Supports two or four GbE LAN ports
  • PCI Express x4 interface
  • Operating temperature from 0˚C to 70°C

Specifications

Bus Type
  • PCI Express x4
Connector
  • 2 x GbE LAN port or 4 x GbE LAN port
  • Intel® Ethernet Controller i210-AT
  • Supports 9.5KB Jumbo Frame and IEEE 1588
Power Connector
  • Power from PCIe slot
  • 1.73A@+3.3V max.
Power Requirements
  • N/A
Operating Temperature
  • 0°C to +70°C (+32°F to +158°F)
Relative Humidity
  • 10 - 95% RH, non-condensing
Dimensions
  • 125 x 111 mm
Certifications
  • CE
Software
  • N/A
OS
  • Windows® 7/Windows® 10 (32/64bit), Linux

Ordering Information

  • AX92322-2GbE (P/N-E392322103)
    2-port GigE PCI Express card
  • AX92322-4GbE (P/N-E392322102)
    4-port GigE PCI Express card

Download

Drivers

Date Description Version Download File
2019/11/06 I210-AT Driver VA1.0

Software

Manual

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2020/02/15 CE-Conformity Declaration
