GOT107W-319

Status : Available

7" WSVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3350

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT107W-319
GOT107W-319
GOT107W-319
GOT107W-319
Fanless

Fanless

IP65 Rating

IP65 Rating

Low Power

Low Power

TPM

TPM

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • 7" WSVGA TFT LCD display with LED backlight
  • Fanless design with Intel® Celeron® processor N3350 or Intel® Pentium® Processor N4200
  • 2 GbE LAN, 2 USB, and 2 COM ports
  • Plastic and IP65-rated front bezel
  • External AT/ATX mode selection switch
  • Easy access storage & RAM design
  • Supports panel mount, wall mount, VESA arm, and desktop stand
  • RS-232/422/485 with RI/5V/12V selectable via BIOS
  • Programmable OSD function key

Specifications

LCD Panel
  • 7" WSVGA TFT LCD
  • 320 nits
  • 1024 x 600 pixels
CPU
  • Intel® Celeron® processor N3350 2 cores (up to 2.4 GHz)
  • Intel® Pentium® Processor N4200 4 cores (up to 2.5 GHz) (optional)
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
  • 1 x RS-232
USB
  • 2 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps Ethernet
Display
  • N/A
Audio
  • N/A
Storage
  • 1 x mSATA (default storage)
  • 1 x MicroSD card
Expansion
  • 1 x M.2 Key E for wireless module
  • 1 x Full-size PCI Express Mini Card slot
Others
  • 1 x Screw type connector for power
  • 1 x Power button
  • 1 x AT/ATX switch
  • fTPM2.0
Touchscreen
  • Projected capacitive multi-touch
Front Bezel
  • IP65, NEMA 4 rugged protection, plastic front bezel
Power Supply
  • 9 to 24VDC with adapter cable
Power Comsumption
  • 20.4W
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • 0°C to +50°C (+32°F to +122°F)
Relative Humidity
  • 20% to 90% @ +40°C; non-condensing
Shock/Vibration
  • 2G, 5 to 500Hz, random for SSD
Dimensions
(W x D x H)
  • 192 x 37.4 x 145 mm (7.56" x 1.47" x 5.7")
Weight (net/gross)
  • 0.75 kg (1.65 lb)/2.0 kg (4.41 lb)
Certifications
  • CE, FCC class B
EOS
  • Windows® 11, Windows® 11 IoT and Linux
Mounting
  • Panel mount kit
  • Wall mount kit
  • Stand kit
  • VESA arm

Ordering Information

  • GOT107W-319 PCT-DC (P/N-E22B107101)
    7" WSVGA fanless touch panel computer with Intel® Celeron® N3350 processor onboard, projected capacitive multi-touch screen, EMI Class B with screw type connector, DC cable, and logo
  • Wi-Fi + Bluetooth kit
  • E29R131108
    Panel mount kit
  • E29R131115
    Wall mount kit
  • E226171119
    Stand kit
  • 50956A24030E
    Adapter 12V/36W FSP036-RHBN3 w/ screw plug

Download

Drivers

Date Description Version Download File
2020/11/11 Step 5. TXE VA1.1
2020/11/11 Step 3. LAN VA1.1
2020/11/11 Step 4. HD Audio VA1.1
2020/11/11 Step 2. Graphic VA1.1
2020/11/11 Step 1. Chipset VA1.1

Software

Manual

Date Description Version Download File
2019/06/28 User's Manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/12/05 CE LVD Verification
2023/12/05 FCC Verification
2023/12/05 UKCA Declaration of Conformity
2023/12/05 CE-Conformity Declaration
2023/12/05 CE EMC Verification

You Might Also Like

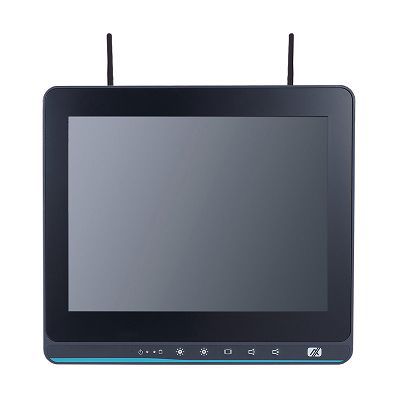

Picture of GOT110-316
