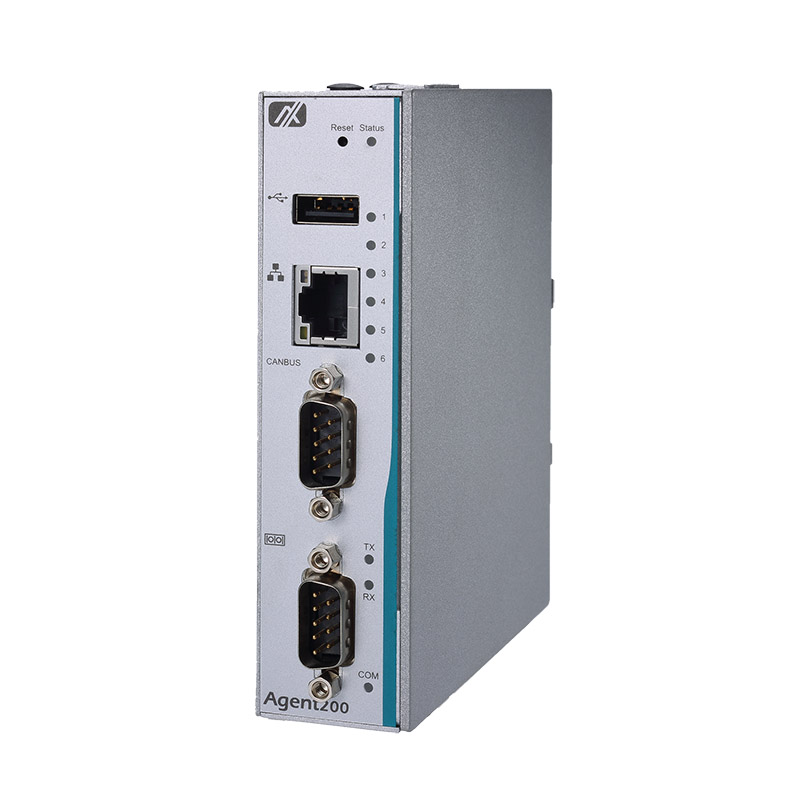

Agent200-FL-DC

Status : Available

RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor,1 COM, 1 LAN, DIO (4-in/4-out), and CANBus

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
Agent200-FL-DC
Agent200-FL-DC
Agent200-FL-DC
Agent200-FL-DC
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • RISC-based (i.MX 6UltraLite) processor 528 MHz
  • 256MB DDR3L SDRAM onboard
  • 4GB eMMC Flash onboard
  • 2 PCI Express Mini Card slots (Wi-Fi or 3G/4G)
  • 4 digital inputs and 4 digital outputs
  • Power input range of 9 to 48 VDC with terminal block
  • Embedded Linux (Yocto) operating system
  • Fanless and compact design
  • Wide operating temperature range from -40°C to +70°C

Specifications

CPU
  • NXP i.MX 6UL processor, ARM® Cortex®-A7 @ 528 MHz
Chipset
  • SoC Integrated
System Memory
  • 256 MB DDR3-1600 onboard
COM
  • 1 x RS-232/422/485
USB
  • 1 x USB 2.0
Ethernet
  • 1 x 10/100 Mbps Ethernet
  • Magnetic isolation protection 1.5KV
PoE
  • N/A
CANbus
  • 1 x CANBus

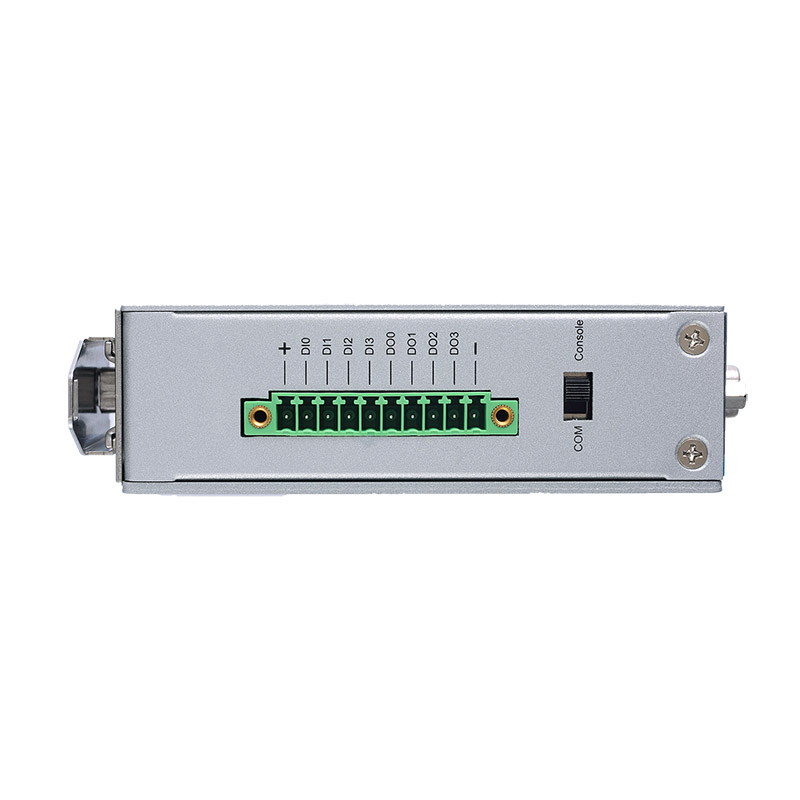

Digital I/O
  • 1 x DIO (4-in/4-out)
Analog Input
  • N/A
Display
  • N/A
Expansion
  • 2 x PCI Express Mini Card slot (USB signal only)
  • 1 x SIM card socket
Storage
  • 1 x eMMC 4GB flash onboard
  • 1 x Micro SD card slot
Others
  • 1 x EEPPROM (2 Kb)
  • Console Port for user setting with debug
Power

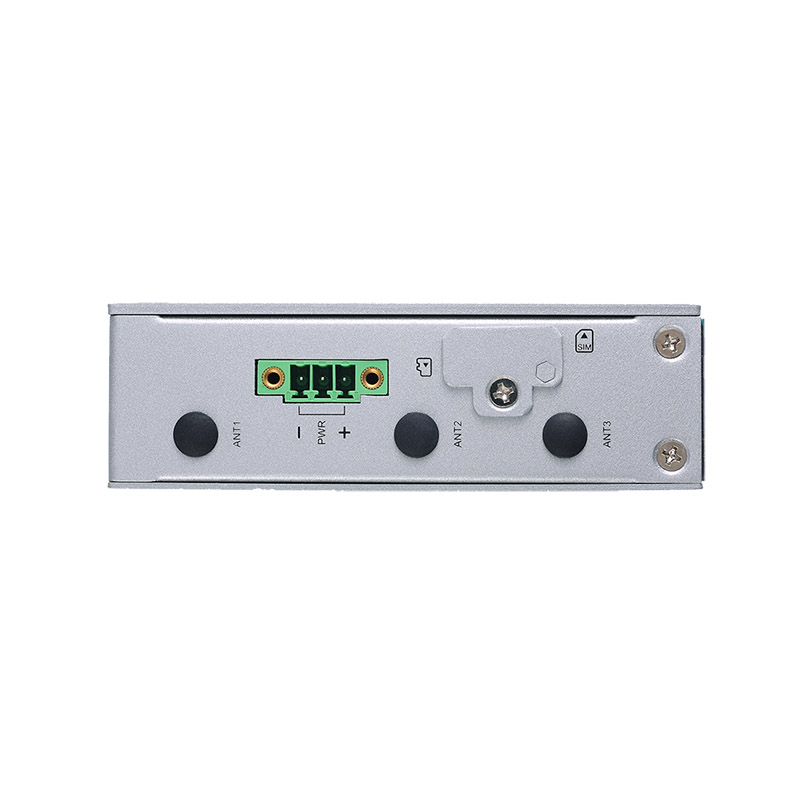

  • 9 to 48 VDC power input range
Watchdog Timer
  • 0.5 to 128 sec. with a time resolution of 0.5 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP20
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F)
Relative Humidity
  • 10% to 95%
Vibration
  • 2 Gms @ (10 to 150Hz random; operation)
Dimensions (W x D x H)
  • 31 x 100 x 125 mm (1.22" x 3.94" x 4.92")
Weight (net/gross)
  • 0.3 kg (0.66 lb)/0.44 kg (0.97 lb)
Certifications
  • CE, FCC
EOS Support
  • Yocto Sumo
Mounting

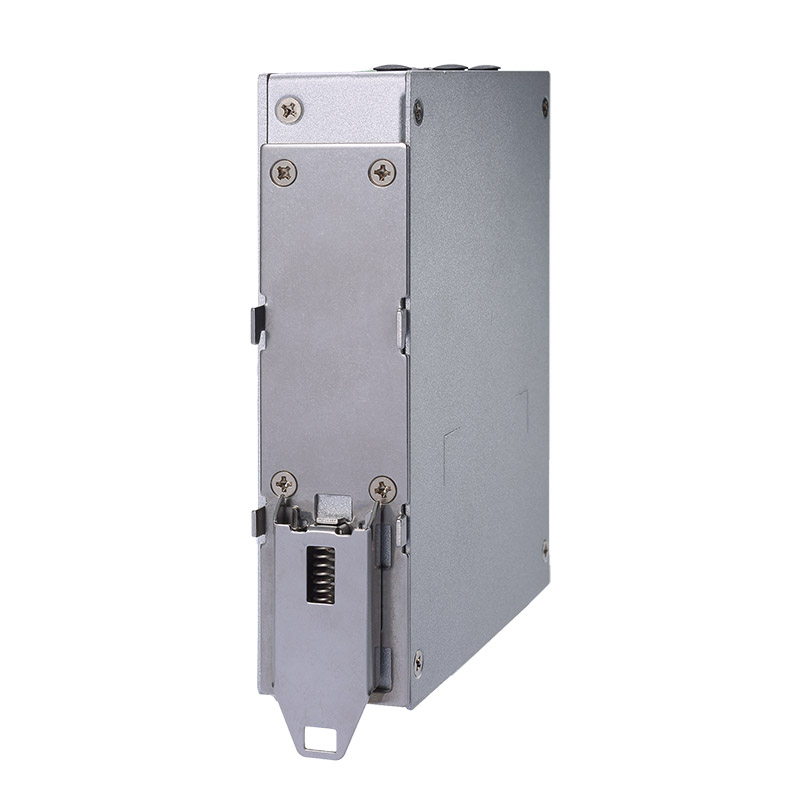

  • DIN-rail
  • Wall mount

Ordering Information

  • Agent200-FL-DC (P/N-E278200100 )
    Robust RISC-based DIN-rail Fanless Embedded System with i.MX 6UL Processor, 1 COM, 1 LAN, DIO (4-in/4-out), and CANbus
  • Wall mount kit
  • Wireless (3G/GPS/Wi-Fi) module
