PICO842

Status : Available

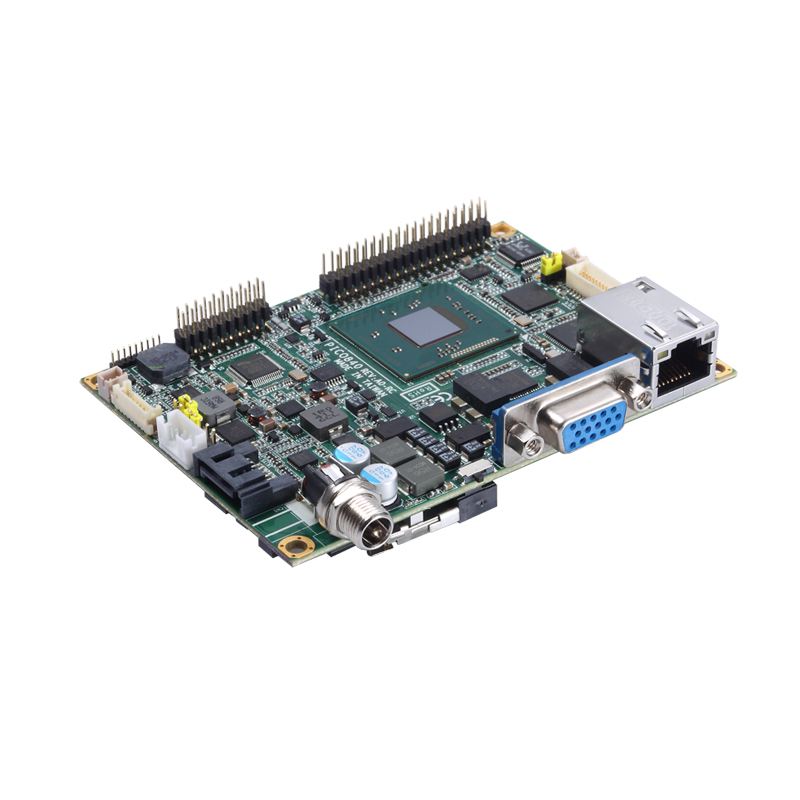

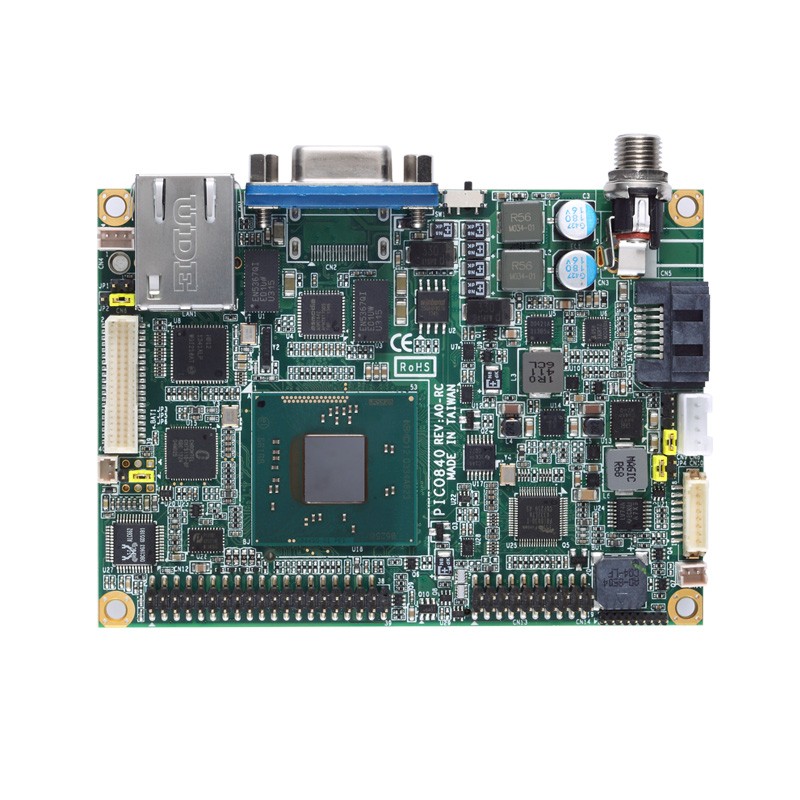

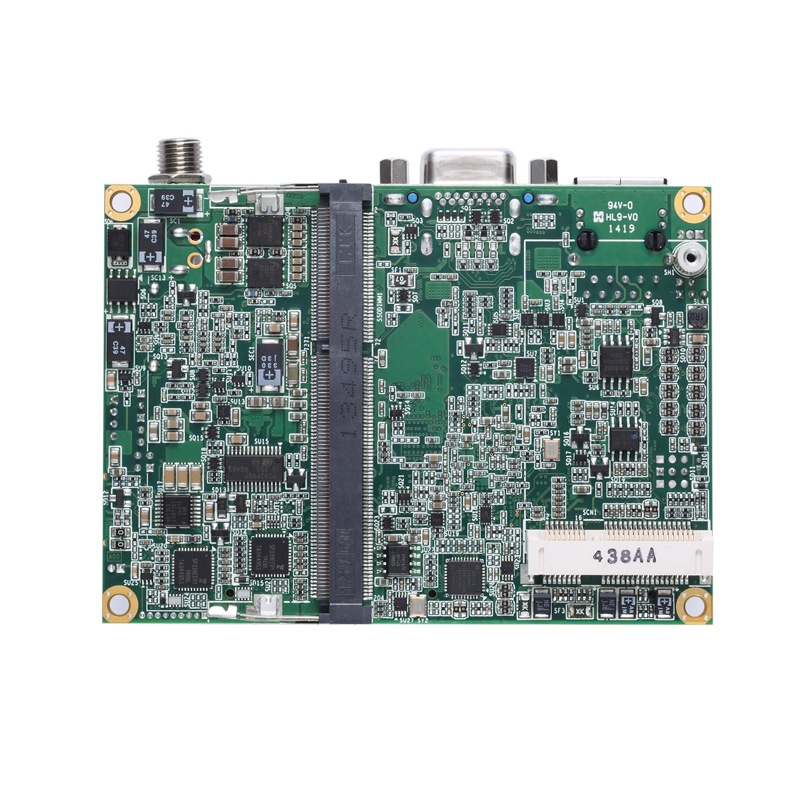

Pico-ITX SBC with Intel® Celeron® Processor J1900/N2807, LVDS/VGA (HDMI), LAN and Audio

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
PICO842
PICO842
PICO842
Dual-View

Dual-View

Fanless

Fanless

Low Power

Low Power

TPM

TPM

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Celeron® processor J1900/N2807 (Bay Trail SoC)
  • 1 DDR3L-1066/1333 SO-DIMM, up to 8GB
  • 4 USB 2.0 ports
  • 2 COM ports (RS-232/422/485 selectable)
  • PCI Express Mini Card with mSATA supported

Specifications

CPU
  • Intel® Celeron® processor J1900 (up to 2.42 GHz) /N2807 (up to 2.16 GHz)
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485
USB
  • 4 x USB 2.0
Ethernet
  • 1 x 10/100/1000 Mbps (Intel® i211AT)
Display
  • 1 x VGA or 1 x HDMI
  • 1 x LVDS
Digital I/O
  • N/A
Audio
  • MIC-in/Line-out
Storage
  • 1 x SATA-300
Expansion
  • 1 x Full-Size PCI Express Mini Card with mSATA supported
Others
  • SMbus
  • ST ST33TPM12LPC with TPM 1.2 compliant
Battery
  • Lithium 3 V/ 220 mAH
Power Input
  • DC power jack connector
  • +12V DC-in only
  • AT Auto Power On function supported
Power Requirements
  • Intel® Celeron® J1900 @ 8GB DDR3L:
  • Max. RMS. +12V @ 0.9A
  • Intel® Celeron® N2807 @ 8GB DDR3L:
  • Max. RMS. +12V @ 0.7A
Watchdog Timer
  • 255 levels, 1~255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • -20°C ~ +70°C (-4°F ~ 158°F)
Relative Humidity
  • 10% ~ 95% relative humidity, non-condensing
Dimensions
  • 100 x 72 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE
Industrial Chassis
  • N/A

Ordering Information

  • PICO842VGA-J1900 (P/N-E38H842100)
    Pico-ITX SBC with Intel® Celeron® processor J1900 (2-2.4 GHz, 2 MB Cache, 10W), VGA/LVDS, 1 GbE LAN, audio and gift box
  • PICO842VGA-N2807 (P/N- E38H842101)
    Pico-ITX SBC with Intel® Celeron® processor N2807 (1.58-2.16 GHz, 1 MB Cache, 4.3W), VGA/LVDS, 1 GbE LAN, audio and gift box

Download

Drivers

Date Description Version Download File
2017/07/12 Function driver for Windows 10 VA1.3
2017/07/12 Function driver for Windows 8 VA1.3
2017/07/12 Function driver for Windows 7 VA1.3

Software

Manual

Date Description Version Download File
2015/12/25 PICO840_PICO842 User's Manual VA2_ 09-01-2015 VA2.0
2015/12/25 AX93283 Quick Manual VA1_03-03-2015 VA1.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/03 UKCA Declaration of Conformity
2021/03/26 CE-Conformity Declaration
2017/08/09 CE-Conformity Declaration
