- Intel® Atom® x5 and x7 processors (Apollo Lake)
- 2 DDR3L-1600 SO-DIMM for up to 8GB of memory
- Max. up to 4 lanes of PCI Express
- 2 SATA-600
- 4 USB 3.0 and 8 USB 2.0
- AXView 2.0 intelligent remote management software
- TPM 1.2 supported (optional)

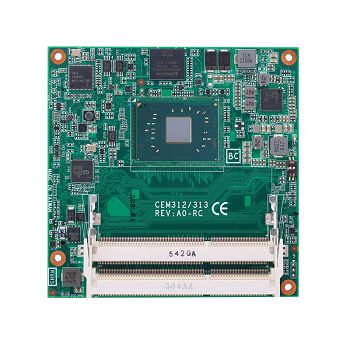

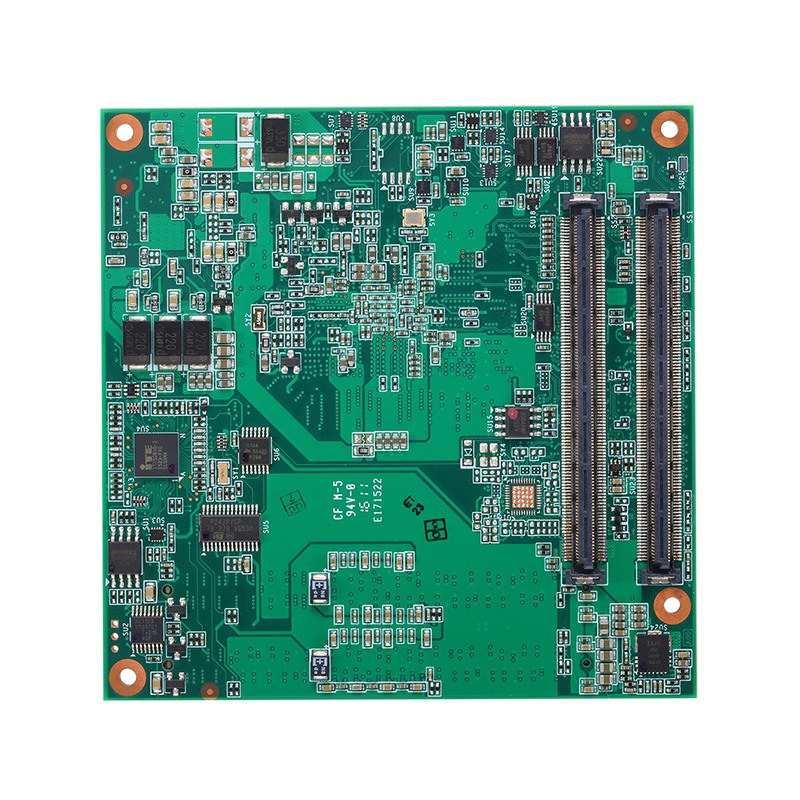

The CEM312 supports Intel® Atom® x5 and x7 processors in a board size of 95 x 95 mm. It has two 204-pin DDR3L-1600 SO-DIMMs with up to 8GB of system memory and an optional eMMC for a maximum of 64GB memory. The COM Express Type 6 module is integrated with Intel® Gen 9 graphics and supported with DX12.0, OCL 2.0 and OGL 4.3 for immersive graphics and media performance with a resolution up to 4K. Moreover, the industrial grade system on module can operate under wide temperature ranging from -40 to 85°C (-40°F to 185°F). The Intel® Atom®-based computer module also offers diverse comprehensive I/O interfaces to meet requirements for a variety of industrial applications. The CEM312 can serve as an excellent solution for graphics-intensive, industrial IoT applications such as industrial control, medical imaging, digital signage, gaming, military, and networking.
