NA860

Status : Available

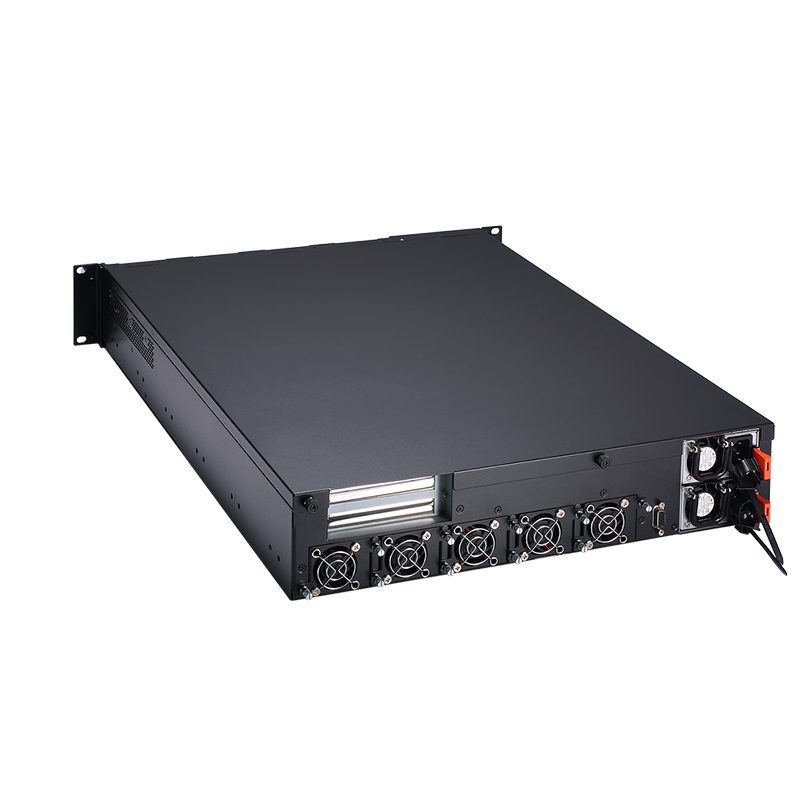

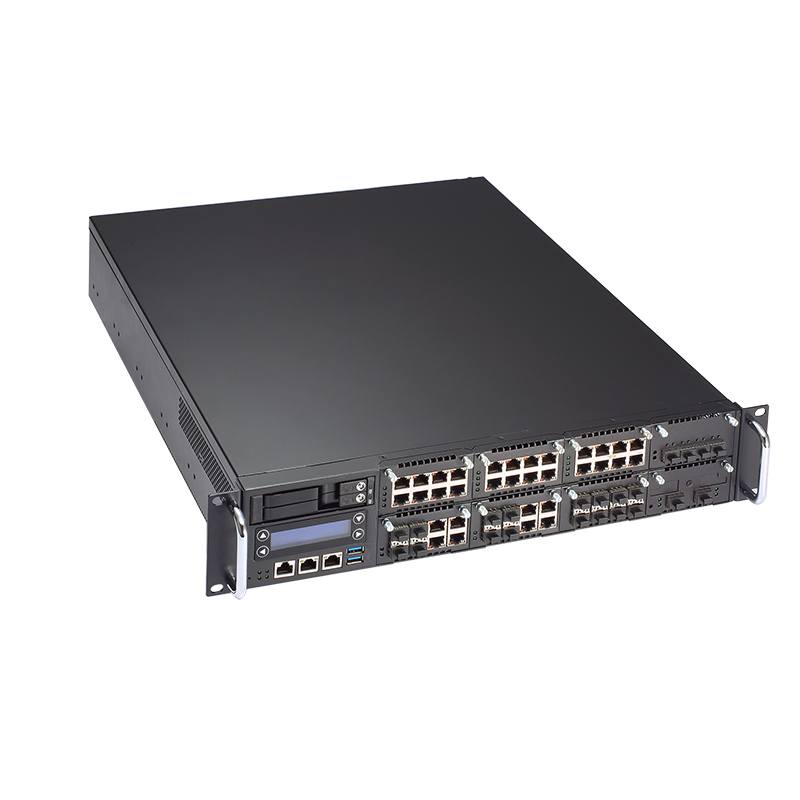

2U Rackmount Network Appliance Platform with Dual LGA3647 Socket Intel® Xeon® Scalable Processors, Intel® C621 (Purley) and up to 66 LAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
NA860
NA860
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Dual LGA3647 socket Intel® Xeon® Scalable processors
  • 12 DDR4-2400 R-DIMM for up to 384GB of memory
  • Max. up to 66 LAN ports
  • 8 expandable LAN modules supporting 1GbE/10GbE/25GbE/40GbE/Fiber/Copper/Bypass
  • Supports 2U redundant power supply
  • Supports IPMI (onboard) for optional
  • Supports onboard TPM
  • High computing power for SDN, NGFW, IDS, IPS and UTM applications

Specifications

Form Factor
  • 2U rackmount
CPU
  • Dual LGA3647 socket Intel® Xeon® Scalable processors (Cascade Lake/Skylake)
Chipset
  • Intel® C621
System Memory
  • 12 x DDR4-2400 R-DIMM, up to 384GB non-buffer non-ECC/ECC memory
BIOS
  • AMI
Ethernet
  • 2 x GbE RJ-45 (Intel® i210)
  • Single CPU: 4 x LAN module (optional), max. up to 34 LAN ports
  • Dual CPU: 8 x LAN module (optional), max. up to 66 LAN ports
LAN Bypass
  • LAN Bypass function through latch relay (depends on LAN modules)
LAN Module
  • Single CPU: 4 x LAN module (optional), max. up to 34 LAN ports
  • Dual CPU: 8 x LAN module (optional), max. up to 66 LAN ports
Storage
  • 2 x 2.5" SATA HDD hot swappable
  • 1 x mSATA
Expansion
  • 2 x PCIe x8 through AX96709 riser card (optional)
I/O Interface
  • 1 x Console (RJ-type)
  • 2 x USB 3.0
  • 2 x RJ-45
  • 1 x VGA
Power Supply
  • 800 W 2U redundant power supply
LCM Module
  • Yes
Watchdog Timer
  • 255 stepping for system reset
  • 8 stepping for LAN Bypass
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions<br>(H x W x D)
  • 88 x 430 x 562 mm (3.46" x 16.92” x 22.12")
Weight (net/gross)
  • 12 kg (26.4 lb)/20 kg (44 lb)
OS
  • Linux
Certifications
  • FCC class A
  • CE class A
Others
  • Onboard TPM 2.0
  • Onboard BMC AST2500, IPMI 2.0 for optional

Ordering Information

  • NA860-R2GI-C621-US (P/N-E26E860100)
    2U rackmount appliance with dual LGA3647 socket Intel® Xeon® Scalable processors and 2 GbE LAN
  • 5916E552000E
    DB9F-RJ-45 1.8M console cable for Cisco

Download

Drivers

Software

Date Description Version Download File
2017/11/30 Demo utility

Manual

Date Description Version Download File
2017/11/30 User's Manual VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/07/18 UKCA Declaration of Conformity
2018/06/27 CE LVD Verification
2018/06/27 FCC Verification
2018/06/27 CE-Conformity Declaration
2018/06/27 CE EMC Verification
