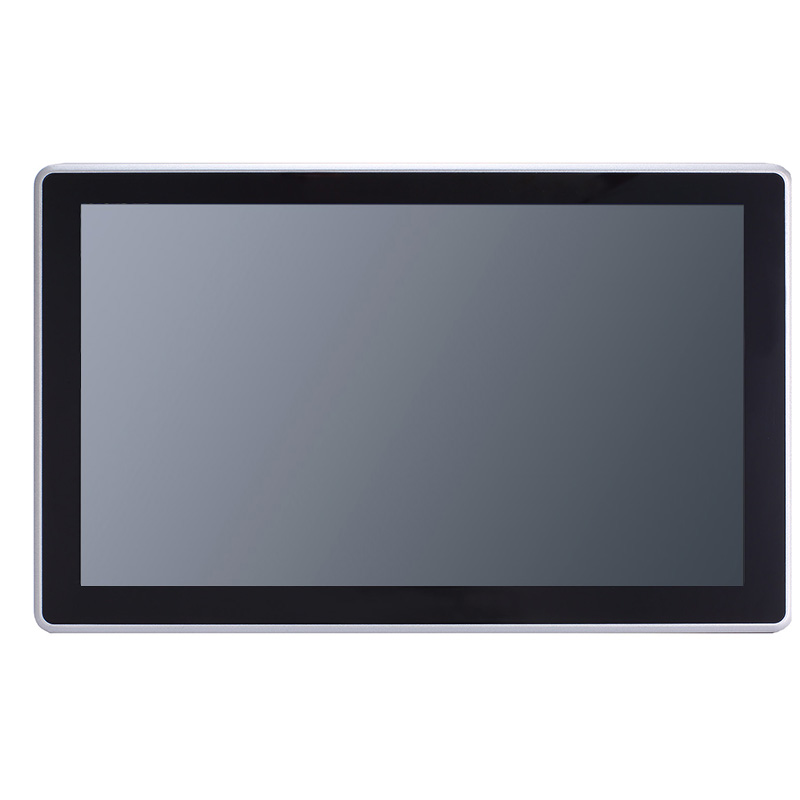

GOT321W-521

Status : Available

21.5" FHD TFT Expandable Touch Panel Computer with LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3, Intel® Pentium® Gold or Intel® Celeron® Processor (up to 35W)

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT321W-521
GOT321W-521
GOT321W-521
Dual-View

Dual-View

Fanless

Fanless

IP65 Rating

IP65 Rating

Low Power

Low Power

Touchscreen

Touchscreen

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 21.5" FHD 10-point multi-touch projected capacitive widescreen or 5-wire resistive touch
  • Fanless design with LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® Gold or Intel® Celeron® processor (up to 35W)
  • Supports WLAN module and antenna (optional)
  • 2.5" SATA HDD/SSD
  • 2 LAN, 4 USB, 2 COM, 1 HDMI, 1 DisplayPort, and 1 VGA
  • IP65-rated aluminum front bezel
  • Supports panel mount, VESA mount, and wall mount

Specifications

LCD Panel
  • 21.5" FHD TFT LCD
  • 250 nits
  • 1920 x 1080 pixels
CPU
  • LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® Gold or Intel® Celeron® processor (up to 35W)
Chipset
  • Intel® H310
System Memory
  • 1 x 260-pin DDR4-2666/2400 SO-DIMM, up to 32GB
BIOS
  • AMI
COM
  • 1 x 9-pin D-sub Male for RS-232
  • 1 x RS-232/422/485
USB
  • 2 x USB 3.0
  • 2 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps Ethernet
Display
  • 1 x HDMI 1.4b
  • 1 x DisplayPort v1.2 (DisplayPort++)
  • 1 x VGA
Audio
  • 1 x Line-out
Storage
  • 1 x mSATA
  • 1 x 2.5" SATA HDD/SSD (7 mm and 9.5 mm height; removable)
Expansion
  • 1 x Full-size PCI-Express Mini Card slot (PCIe + SATA + USB)
  • 1 x M.2 Key E 2230 (for Wi-Fi)
Others
  • TPM 2.0
  • 1 x Phoenix-type connector for DC power input
  • 1 x Switch for power on/off (ATX)
  • 1 x Remote power switch
  • 1 x AT/ATX switch (DC type only)
  • 1 x Grounding hole (DC Version)
Touchscreen
  • 10-point projected capacitive multi-touch
  • 5-wire flat resistive touch
Front Bezel
  • Aluminum w/ IP65/NEMA 4 rugged protection
Power Supply
  • +12V/+19V/+24VDC
  • 1 x Terminal block
Power Comsumption
  • 105W
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • 0°C to +50°C (+32°F to +122°F)
Relative Humidity
  • 20% to 90% @ +40°C; non-condensing
Vibration
  • 1.0G, 5 - 500Hz, random
Dimensions<br>(W x D x H)
  • 547.59 x 75.6 x 339.05 mm (21.56" x 2.98" x 13.49")
Weight (net/gross)
  • 8.4 kg (18.5 lb)/11.3 kg (24.9 lb)
Certifications
  • CE
EOS
  • Windows® 11/10 IoT Enterprise
Mounting
  • Wall mount
  • Panel mount
  • VESA mount

Ordering Information

  • GOT321W-521-C-DC (P/N-E22B321105)
    21.5" FHD TFT fanless touch panel computer with LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® Gold or Intel® Celeron® processor (up to 35W), projected capacitive multitouch screen, and 24 VDC terminal block with small Phoenix connector
  • GOT321W-521-R-DC (P/N-E22B321106)
    21.5" FHD TFT fanless touch panel computer with LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® Gold or Intel® Celeron® processor (up to 35W), resistive touch screen, and 24 VDC terminal block with small Phoenix connector
  • Wi-Fi kit
  • E29R131114
    Wall mount kit
  • 509000001500
    Adaptor 24V/120W, wire only, FSP120-AAAN3
  • 594K6220210E
    Remote power cable, L=720 mm

Download

Drivers

Date Description Version Download File
2025/04/22 ME(windows11) VA1.2
2025/04/22 Option(windows11) VA1.2
2025/04/22 Touch(windows11) VA1.2
2025/04/22 IRST(windows11) VA1.2
2025/04/22 Seral IO(windows11) VA1.2
2025/04/22 LAN(windows11) VA1.2
2025/04/22 Audio(windows11) VA1.2
2025/04/22 Graphic(windows11) VA1.2
2025/04/22 Chipset(windows11) VA1.2
2025/04/22 Touch(windows10) VA1.2
2025/04/22 Option(windows10) VA1.2
2025/04/22 Audio(windows10) VA1.2
2025/04/22 Seral IO(windows10) VA1.2
2025/04/22 IRST(windows10) VA1.2
2025/04/22 Lan(windows10) VA1.2
2025/04/22 ME(windows10) VA1.2
2025/04/22 Graphic(windows10) VA1.2
2025/04/22 Chipset(windows10) VA1.2

Software

Manual

Date Description Version Download File
2022/04/01 GOT321W-521 User's Manual VA1_18-03-2022 VA1

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/12/05 UKCA Declaration of Conformity
2023/12/05 FCC Verification
2023/12/05 CE-Conformity Declaration
2023/12/05 CE EMC Verification

Frequently Asked Questions

You Might Also Like

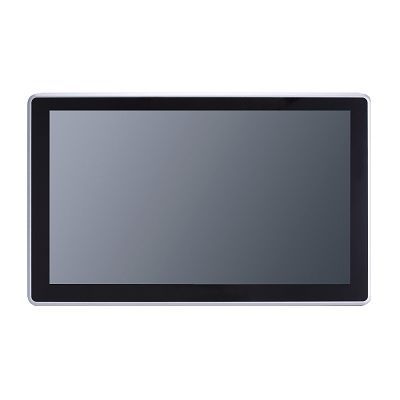

Picture of GOT315W-521
