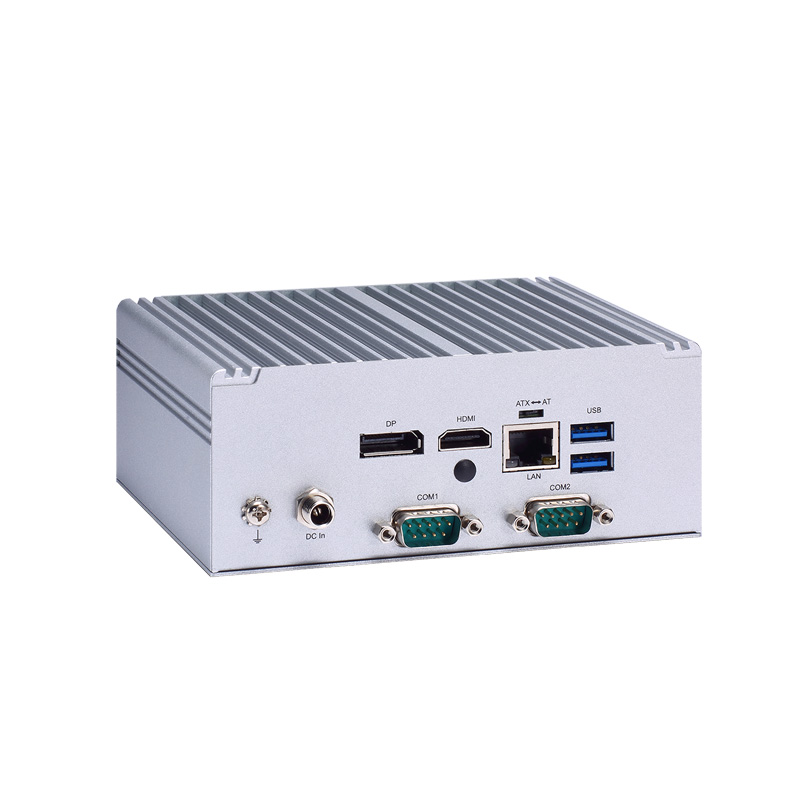

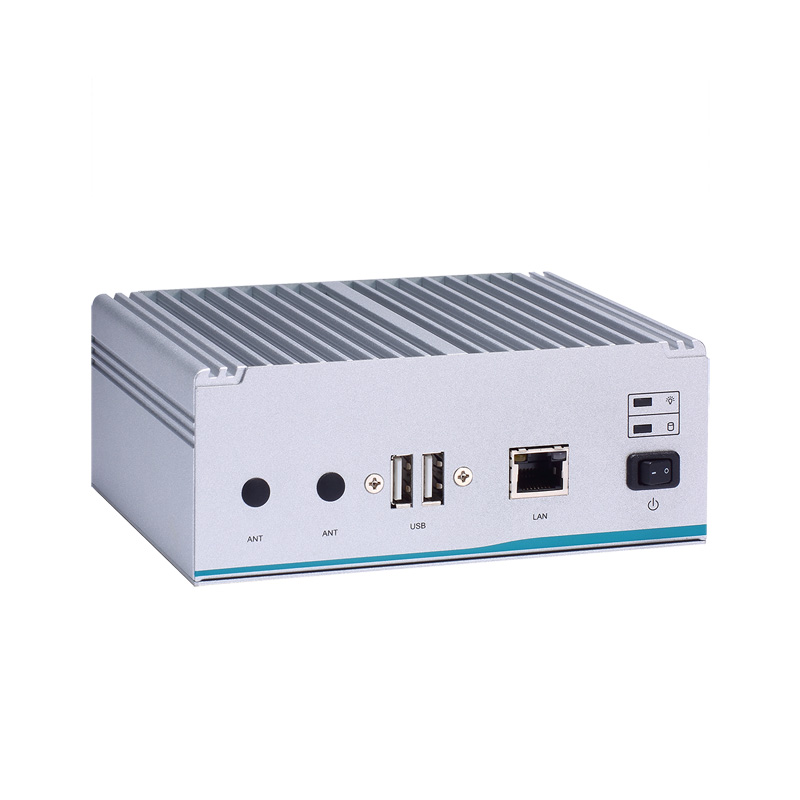

Features
- 8th gen Intel® Core™ and Celeron® processor onboard
- 1 M.2 Key E 2230 for Wi-Fi module
- 260-pin DDR4-2400 SO-DIMM, max. up to 32GB
- 2 GbE LAN and 2 USB 3.1 Gen2
- Supports DisplayPort++ and HDMI for dual independent displays
- Multiple mounting designs: Wall mount, DIN-rail and VESA mount
Introduction
The MANO500 is based on the new 14nm 7th/6th generation Intel® Core™ i7/i5/i3 and Pentium® processors in the LGA1151 package. Featuring the new Intel® H110 Express chipset with DDR4 2133MHz memory support, this motherboard is built to perform. Its three SATA 6G ports, four USB 3.0 ports, and two RS-232/422/485 ports provide robust storage and I/O options. Users also can increase board functionality with PCIe x16 slot and PCI Express Mini Card slot. The high quality MANO500 allows the connection of up to four display interfaces via HDMI, VGA, DisplayPort, and LVDS/ Embedded DisplayPort (eDP), making it an ideal solution for gaming, workstation, digital signage, medical and other IoT&M2M applications.
