Features
- Cost-effective with fanless and cableless design
- Intel® Celeron® processor N3060 (1.6 GHz/2-core) or N3160 (1.6 GHz/4-core)
- 2 RS-232/422/485 ports
- 4 USB ports
- 2 isolated 10/100/1000 Mbps Ethernet ports
- 1 PoE PD compliant with IEEE 802.3at standard through LAN 1
- 1 DIO port
- 2 PCI Express Mini Card slots (for 3G/GPRS and Wi-Fi)
- 1 mSATA & SATA SSD (or HDD)
- 12 to 24 VDC wide range power input
- AMS.AXView intelligent remote monitoring software for IIoT
Introduction

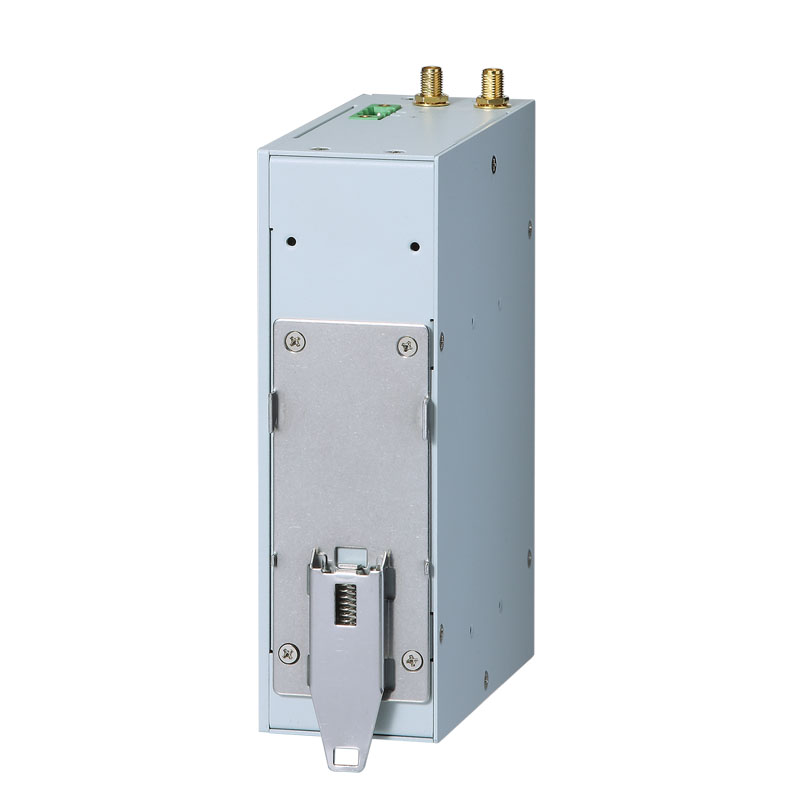

The ICO310, a robust din-rail IIoT (Industrial IoT) embedded platform, supports low power Braswell Intel® Celeron® processor N3060 1.6 GHz dual-core or N3160 1.6 GHz quad-core with up to 8GB DDR3L system memory, delivering high performance and low power consumption at competitive price. The outstanding Braswell Intel® Celeron® SoC-based embedded field controller offers complete expandability and full featured I/O, including two Gigabit LAN ports, two RS-232/422/485 ports, two USB 2.0 ports, two USB 3.0 ports, one VGA port, and one DIO interface. Two PCI Express Mini Card slots, one SIM card slot and three internal antennas are available for 3G/GPRS and Wi-Fi connections. Furthermore, the ICO310 features PoE PD function, which can simplify network installation and minimize the total costs of replacement and maintenance. Its storage interfaces include an SATA SDD, as well as mSATA support on the PCI Express Mini Card slot. Additionally, the wide range 12V-24V DC terminal block power input with overvoltage and reverse protection can lower the risk of data loss under human manipulation. The reliable yet robust ICO310 is a perfect solution for industrial IoT applications such as smart energy, smart factory automation, facility monitoring systems and many more.
