NA345

Status : Available

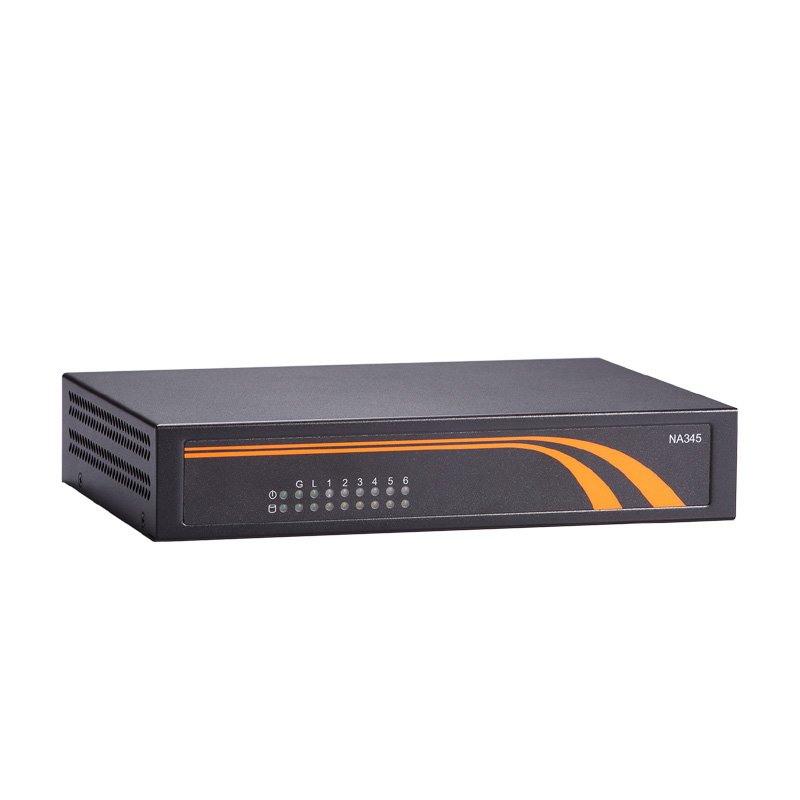

Desktop Network Appliance Platform with Intel® Celeron® N3350/J3455 up to 4 LAN for VPN, Network Bandwidth Controller and Firewall

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
NA345
NA345
NA345
LAN Bypass

LAN Bypass

Low Power

Low Power

TPM

TPM

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • Intel® Celeron® processor N3350/J3455 (Apollo Lake)
  • 1 DDR3L-1866 SO-DIMM for up to 8GB of memory
  • 4 GbE RJ-45 ports (Intel® i211)
  • 1 PCI Express Mini Card slot for mSATA
  • 2 PCI Express Mini Card slots for WiFi and LTE module
  • Suitable for VPN, network bandwidth controller and firewall applications

Specifications

Form Factor
  • 1U desktop
CPU
  • Intel® Celeron® processor N3350/J3455
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1600 SO-DIMM, up to 8GB non-ECC memory
BIOS
  • AMI
Ethernet
  • 4 x GbE RJ-45 (Intel® I210, 6 ports available on request)
LAN Bypass
  • 2 pairs (optional)
LAN Module
  • N/A
Storage
  • 1 x 2.5" SATA 3 HDD
  • 1 x mSATA
Expansion
  • 1 x Full-size PCI Express Mini Card slot (SATA+USB)
  • 1 x Half-size PCI Express Mini Card slot (USB+PCIe)
  • 1 x Full-size PCI Express Mini Card slot (USB+PCIe)
  • 1 x Standard SIM Socket
I/O Interface
  • 1 x Console (RJ-type)
  • 2 x USB 3.0
  • 4 x RJ-45
  • 1 x HDMI (optional, requires customized chassis)
Power Supply
  • 1 x 12V, 5A power adapter
LCM Module
  • N/A
TPM
  • Onboard TPM 1.2 (optional)
Operating Temperature
  • 0°C to +40°C (+32°F to +104°F)
Dimensions<br>(H x W x D)
  • 44 x 231.9 x 152 mm (1.73" x 9.00" x 5.98")
Weight (net/gross)
  • 2.35 kg (5.18 lb)/2.61 kg (5.75 lb)
EOS Support
  • Linux
Certifications
  • FCC class B
  • CE class B

Ordering Information

  • NA345-D4GI-N3350-US without LBP (P/N-E26E345100)
    1U desktop network appliance with Intel® Celeron® N3350 (1.10GHz, 2 cores, 6W), 4 LAN, without LAN Bypass (LBP) and TPM
  • NA345-D4GI-J3455-US without LBP (P/N-E26E345107)
    1U desktop network appliance with Intel® Celeron® J3455 (2.30GHz, 4 cores, 10W), 4 LAN, without LAN Bypass (LBP) and TPM
  • 5916E552000E
    DB9F-RJ-45 1.8M console cable for Cisco
  • 59906000010E
    Power cord YP-12/YC-12 (JP)
  • 59903000000E
    Power cord YP-22/YC-12 (EU)
  • 59905000000E
    Power cord YP-35/YC-12 (AU)
  • 59904010000E
    Power cord YP-61A/YC-12 (UK)
  • 826E3420220E
    NA345 rackmount kit

Download

Drivers

Software

Date Description Version Download File
2019/01/08 Board Support Package for User mode API Library 1.01

Manual

Date Description Version Download File
2017/08/08 User's Manual VA1.2

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2023/01/04 CE LVD Verification
2023/01/04 FCC Verification
2023/01/04 UKCA Declaration of Conformity
2023/01/04 CE EMC Verification
2023/01/04 CE-Conformity Declaration
