ICO330

Status : Available

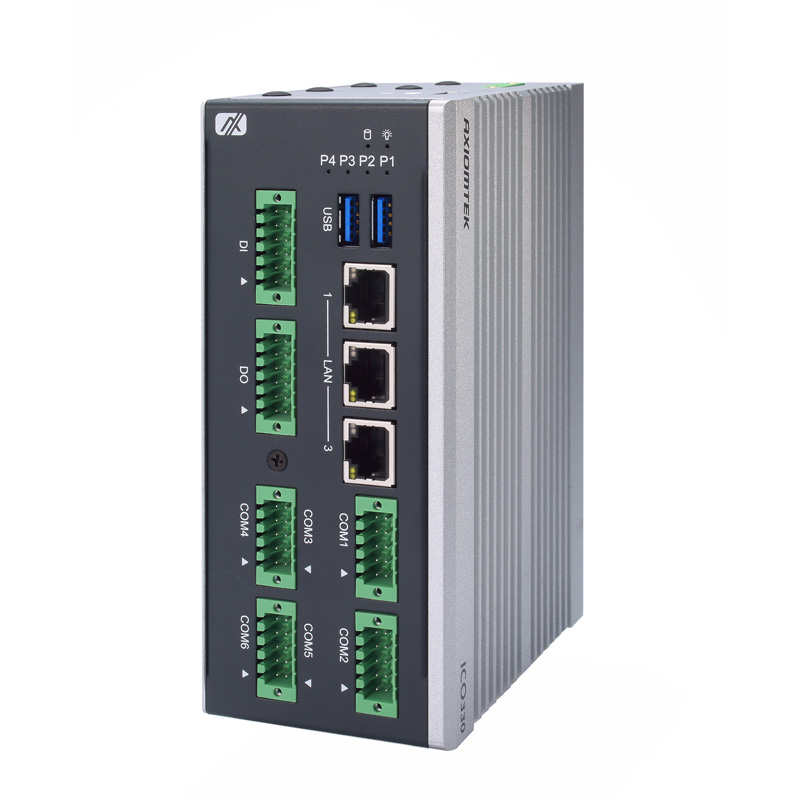

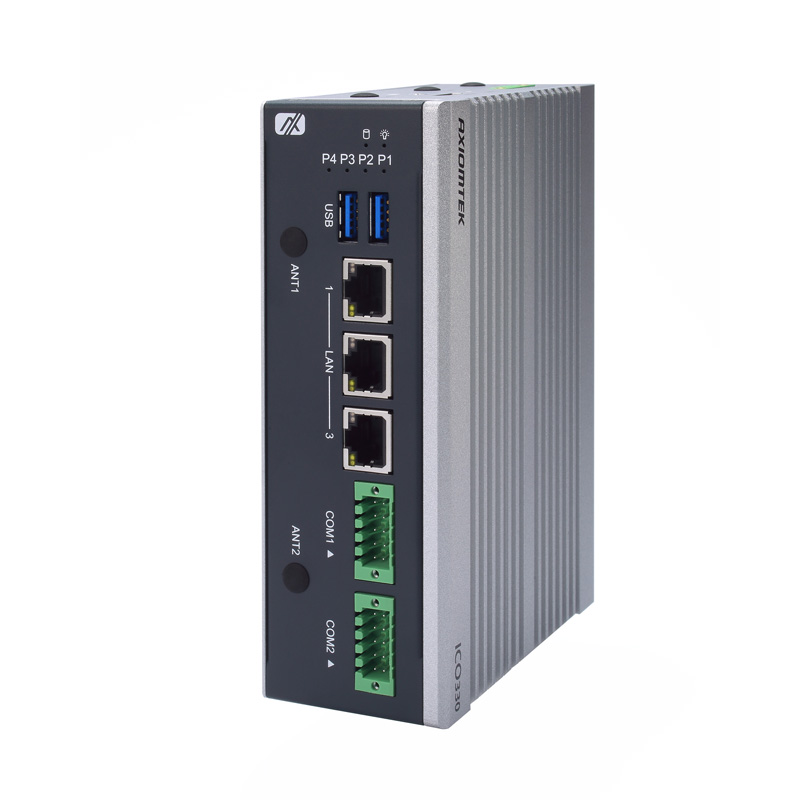

DIN-Rail Fanless Embedded System with Intel Atom® x6212RE or x6414RE Processor, 3 2.5GbE LAN, Isolated COM, and Isolated DIO

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
ICO330
ICO330
ICO330
ICO330
ICO330
ICO330
Axiomtek EAPI

Axiomtek EAPI

Fanless

Fanless

Isolation

Isolation

Low Power

Low Power

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Cost-effective with fanless design
  • Intel Atom® x6212RE or x6414RE processor
  • 6 isolated COM, isolated DIO (8-in/8-out), and 3 2.5 GbE LAN
  • Wide operating temperature range from -40°C to +70°C
  • 9 to 36 VDC, typical 12 to 24V power input with OVP, UVP, OCP, and RPP
  • Supports TPM 2.0
  • Supports cold boot at -40°C

Specifications

CPU
  • Intel Atom® x6212RE processor, 1.2GHz/2C/6W
  • Intel Atom® x6414RE processor, 1.5GHz/4C/9W
Chipset
  • SoC integrated
System Memory
  • 1 x DDR4-3200 SO-DIMM, up to 32GB
COM
  • 2 x Terminal block isolated RS-232/422/284 (for slim type)
  • 6 x Terminal block isolated RS-232/422/485 (for full type)
USB
  • 2 x USB 3.2
Ethernet
  • 3 x RJ-45 isolated 2.5 GbE LAN (Intel® I226-IT)
  • Isolation voltage: 1.5 kV
PoE
  • N/A
CANbus
  • N/A
Analog Input
  • N/A
Digital I/O
  • 1 x Isolated 8-in/8-out DIO (for full type)
Display
  • 1 x HDMI (up to 1920 x 1080 @60Hz)
Expansion
  • 1 x M.2 Key B 3050/3052 slot: PCIe/USB 3.2/USB 2.0 (for Wi-Fi/5G with SIM slot)
  • 1 x Full-size Rev. 1.2 PCI Express Mini Card slot: USB 2.0 (for Wi-Fi/LTE with SIM slot)
  • 1 x Half-size Rev. 1.2 PCI Express Mini Card slot: PCIe/USB 2.0/SATA (for Wi-Fi/mSATA)
Storage
  • 1 x Internal 2.5" SATA Drive
  • 1 x mini mSATA (occupied 1 x PCI Express Mini Card slot)
  • 1 x eMMC (optional)
Others
  • TPM 2.0
  • 5 x Antenna opening
Power
  • 1 x Terminal block, 9 to 36 VDC, typical 12/24V
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP40
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F)
  • Cold boot at -40°C
Relative Humidity
  • 10% to 95%
Vibration
  • 3 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating)
Dimensions<br>(W x D x H)

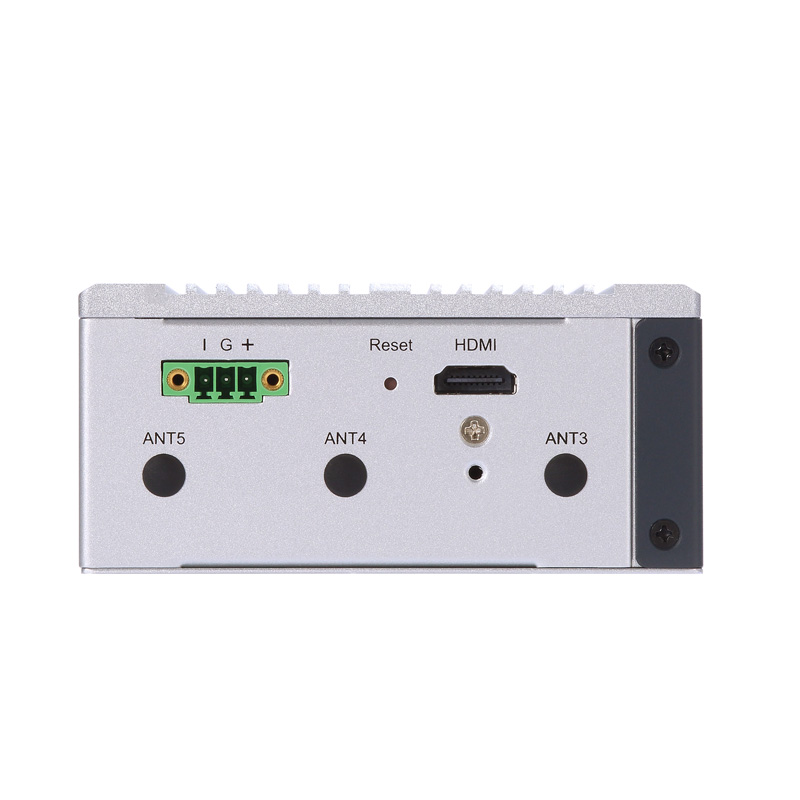

  • Slim type: 55 x 110 x 155 mm (2.48" x 4.33" x 6.1")

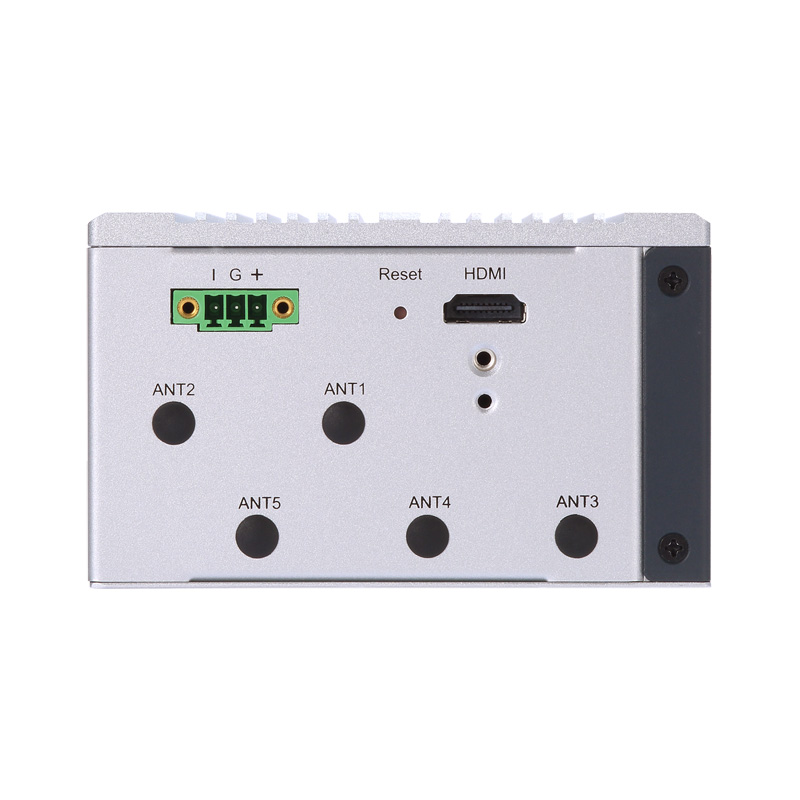

  • Full type: 66 x 110 x 155 mm (2.48" x 4.33" x 6.1")
Weight (net/gross)
  • Slim type: 1 kg (2.2 lb)
  • Full type: 1.5 kg (3.3 lb)
Certifications
  • CE (Class A), FCC (Class A)
Software Support
  • Axiomtek EAPI
EOS Support
  • Windows® 10 IoT, Linux
Mounting

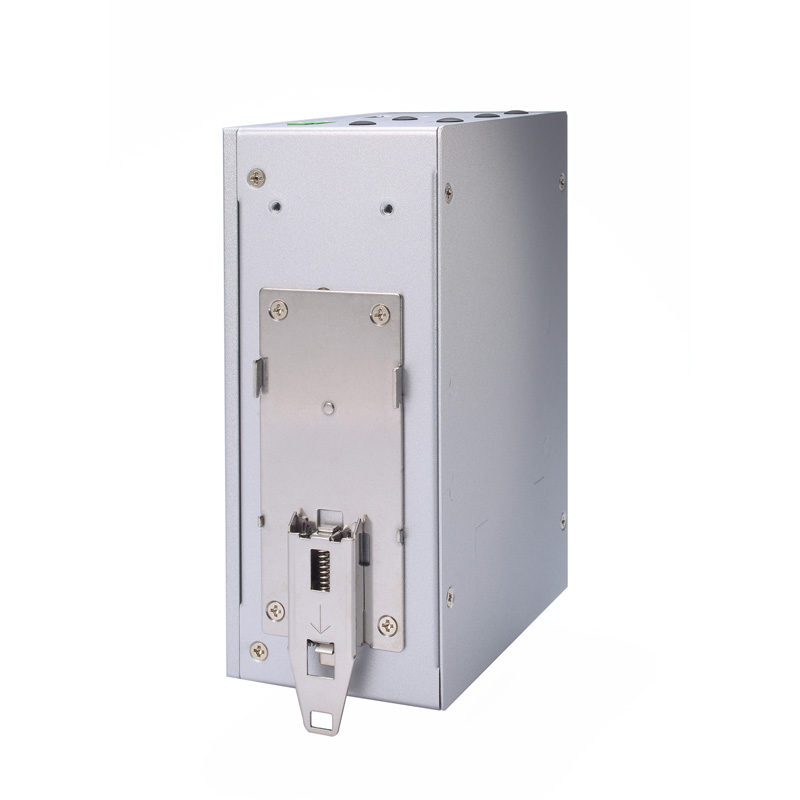

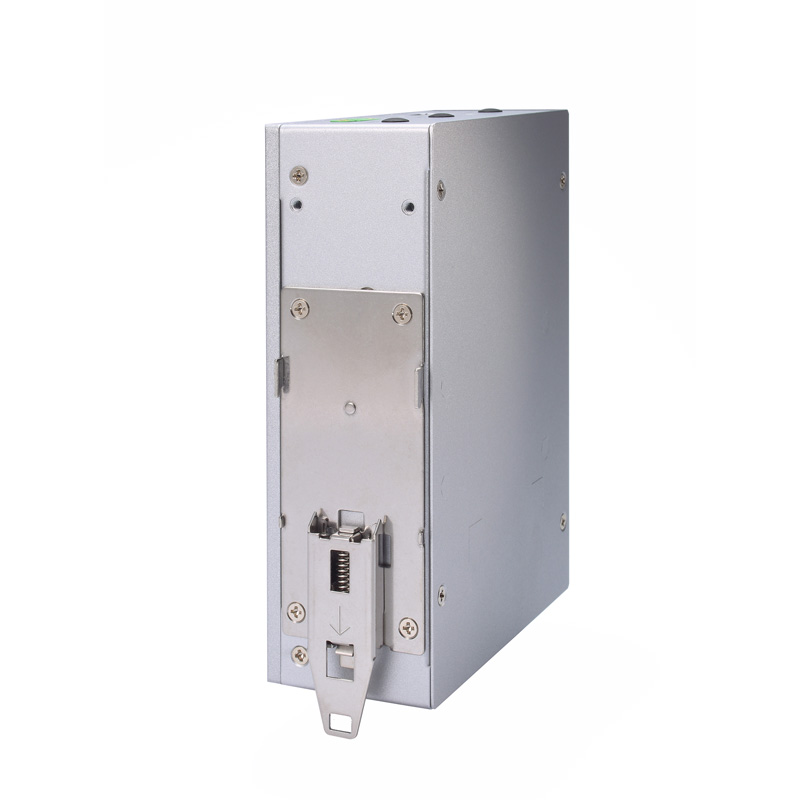

  • DIN-rail
  • Wall Mounting

Ordering Information

  • ICO330-X6212-A (P/N-E22C330101)
    DIN-rail fanless embedded system with Intel Atom® x6212RE processor, 2 USB, 3 2.5GbE LAN, 6 isolated COM, isolated DIO (8-in/8-out), and HDMI
  • ICO330-X6212-AS (P/N-E22C330100)
    DIN-rail fanless embedded system with Intel Atom® x6212RE processor, 2 USB, 3 2.5GbE LAN, 2 isolated COM, and HDMI
  • ICO330-X6414-A (P/N-E22C330103)
    DIN-rail fanless embedded system with Intel Atom® x6414RE processor, 2 USB, 3 2.5GbE LAN, 6 isolated COM, isolated DIO (8-in/8-out), and HDMI
  • ICO330-X6414-AS (P/N-E22C330102)
    DIN-rail fanless embedded system with Intel Atom® x6414RE processor, 2 USB, 3 2.5GbE LAN, 2 isolated COM, and HDMI

Download

Drivers

Date Description Version Download File
2025/08/25 Intel_CSE V1.1
2025/08/25 Chipset V1.1
2025/08/20 Graphics V1.1
2025/02/17 Wired V1.1
2025/02/14 Serial IO V1.1
2024/08/13 BIN V1.0
2024/08/13 RS485_CDM212364 V1.0

Software

Manual

Date Description Version Download File
2025/03/11 User Manual V1.5

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2024/11/28 CE EMC Verification
2024/11/28 FCC Verification
2024/11/06 UKCA Declaration of Conformity
2024/11/06 UKCA Declaration of Conformity
2024/11/06 CE-Conformity Declaration
2024/11/06 CE-Conformity Declaration
