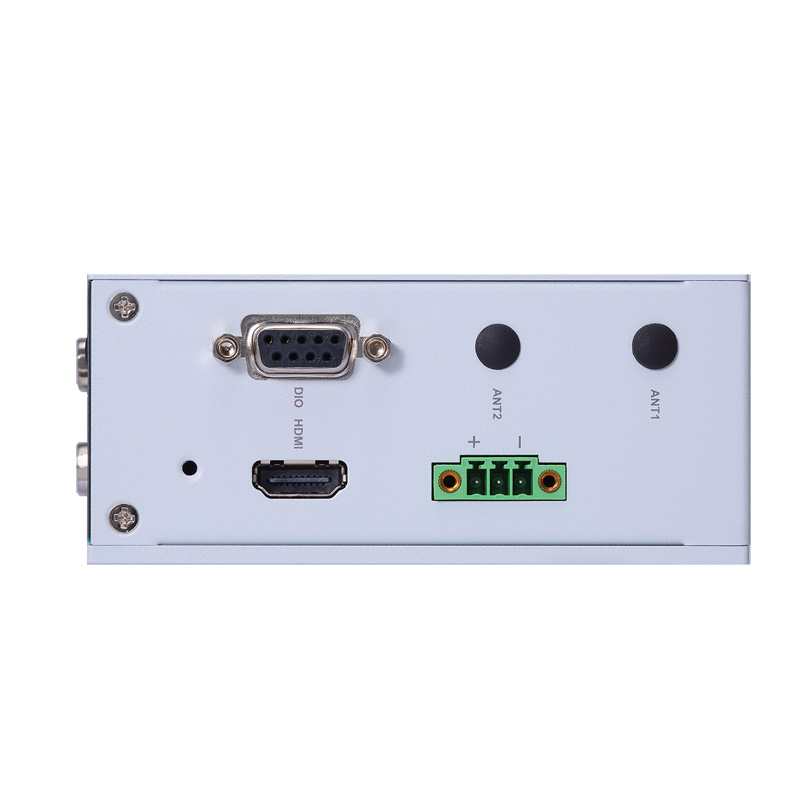

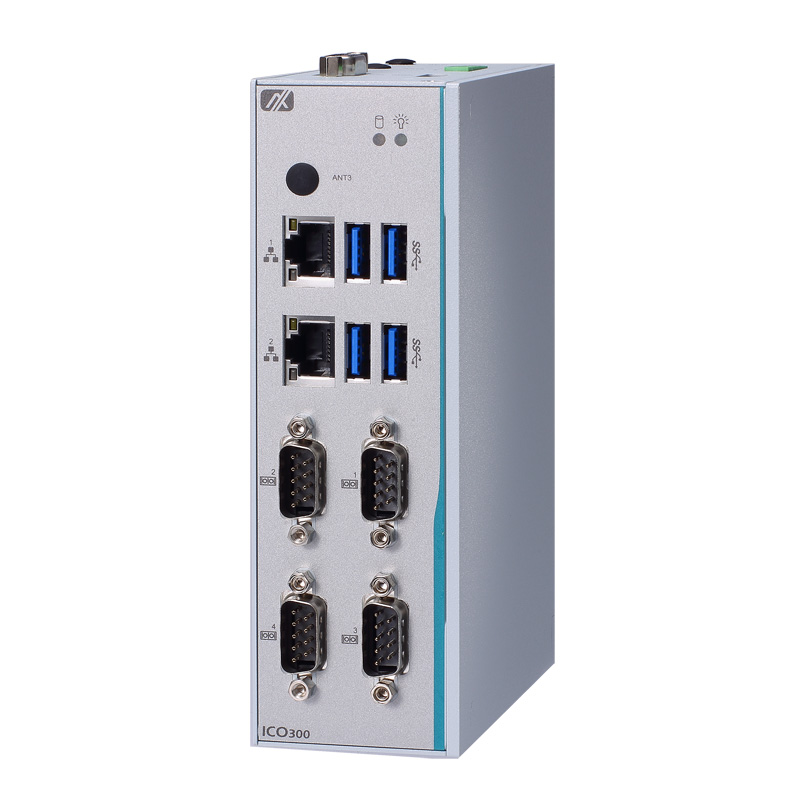

ICO300-83B

Status : Available

DIN-Rail Fanless Embedded System with Intel® Celeron® Processor N3350/Pentium® Processor N4200, Isolated COM, LAN and DIO

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
ICO300-83B
ICO300-83B
Axiomtek EAPI

Axiomtek EAPI

Fanless

Fanless

IP30 Rating

IP30 Rating

Low Power

Low Power

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Cost-effective, fanless, and cable-free design
  • Intel® Celeron® processor N3350/Pentium® processor N4200, reliable F1 stepping version CPU
  • 4 isolated COM, 4 USB, and 2 GbE LAN
  • 8-bit programmable DIO for IoT gateway applications
  • Wide operating temperature range from -40°C to +70°C
  • 12 to 24 VDC wide range power input
  • OVP, UVP, OCP, RPP power protection design
  • Axiomtek EAPI middleware service package for IIoT remote management

Specifications

CPU
  • Intel® Celeron® N3350 2C @1.1 GHz, TDP: 6W
  • Intel® Pentium® N4200 4C @1.1 GHz, TDP: 6W
Chipset
  • SoC integrated
System Memory
  • 1 x DDR3L-1600 SO-DIMM, up to 8GB
COM
  • 4 x DB9 Isolated RS-232/422/485 (ICO300-83B-4COM)
  • 2 x DB9 Isolated RS-232/422/485 (ICO300-83B-2COM)
USB
  • 4 x USB 3.0
Ethernet
  • 2 x RJ-45 isolated 10/100/1000 Mbps Ethernet (Intel® I210-IT)
  • isolation voltage: 1.5 kV
PoE
  • N/A
CANbus
  • N/A
Digital I/O
  • 1 x DB9 8-bit programmable DIO
Analog Input
  • N/A
Display
  • 1 x HDMI (up to 1920 x 1200 @60Hz)
Expansion
  • 2 x Full-size Rev. 1.2 PCI Express Mini Card slot:
  • • 1 x USB/PCIe with SIM socket
  • • 1 x mSATA/USB/PCIe
Storage
  • 1 x mSATA (occupied 1 x PCI Express Mini Card slot)
  • 1 x Internal 2.5" SATA drive (9.5 mm height)
Others
  • 3 x Antenna opening
Power
  • 1 x Terminal block, 12 to 24 VDC
  • 12 to 24VDC, 2.82-1.34A
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Construction
  • Extruded aluminum and heavy-duty steel, IP30
Operating Temperature
  • -40°C to +70°C (-40°F to +158°F) with W.T. peripheral
Relative Humidity
  • 0% to 95%
Vibration
  • 3 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating)
Dimensions<br>(W x D x H)
  • 48 x 110 x 155 mm (1.88" x 4.33" x 6.1")
Weight (net/gross)
  • 1.0 kg (2.2 lb)/1.50 kg (3.3 lb)
Certifications
  • CE (Class A)
  • FCC (Class A)
EOS Support
  • Windows® 10 IoT, Linux
Software Support
  • Axiomtek EAPI
Mounting
  • DIN-rail
  • Wall Mounting

Ordering Information

  • ICO300-83B-N3350-4ICOM-HDMI-DIO-WT-DC (P/N-E22C300144)
    DIN-rail Fanless Embedded System with Intel® Celeron® Processor N3350 (1.1GHz), 4 Isolated COM, 2 GbE, 4 USB, HDMI, DIO, TPM 2.0
  • ICO300-83B-N3350-4COM-HDMI-DIO-WT-DC (P/N-E22C300146)
    DIN-rail Fanless Embedded System with Intel® Celeron® Processor N3350 (1.1GHz), 4 COM, 2 GbE, 4 USB, HDMI, DIO, TPM 2.0
  • ICO300-83B-N4200-4ICOM-HDMI-DIO-WT-DC (P/N-E22C300147)
    DIN-rail fanless embedded system with Intel® Pentium® processor N4200 (1.1 GHz), 4 COM, 2 GbE, 4 USB, HDMI, DIO, and TPM 2.0
  • ICO300-83B-N4200-4COM-HDMI-DIO-WT-DC (P/N-E22C300145)
    DIN-rail fanless embedded system with Intel® Pentium® processor N4200 (1.1 GHz), 4 COM, 2 GbE, 4 USB, HDMI, DIO, and TPM 2.0
  • ICO300-83B-N3350-2COM-2CAN-HDMI-DIO-WT (P/N-E22C300149)
    DIN-rail fanless embedded system with Intel® Celeron® processor N3350 (1.1 GHz), 2 COM, 2 CAN, 2 GbE, 4 USB, HDMI, DIO, and TPM 2.0

Download

Drivers

Date Description Version Download File
2019/10/24 05- Intel TXE Firmware VA1.3
2019/10/24 06- CAN_EMUC-B202-W1161 VA1.3
2019/10/24 02- Intel Graphic VA1.3
2019/10/24 04- Intel Serial IO VA1.3
2019/10/24 03- Intel Ethernet VA1.3
2019/10/24 01- Intel Chipset VA1.3

Software

Manual

Date Description Version Download File
2020/12/01 User Manual VA5

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/07/27 UKCA Declaration of Conformity
2022/07/27 CE-Conformity Declaration
2022/07/27 FCC Verification
2022/07/27 CE EMC Verification
2019/10/23 CE LVD Verification
