AIE100-ONA

Status : Available

Fanless Edge AI System with NVIDIA® Jetson Orin™ Nano, 1 HDMI, 1 GbE LAN, 1 GbE PoE, and 2 USB, featuring Remote Management Service Powered by Allxon

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
AIE100-ONA
AIE100-ONA
AIE100-ONA
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • NVIDIA® Jetson Orin™ Nano (up to 67 TOPS)
  • Supports Super Mode with Jetpack 6.2 and above
  • Ideal for edge AI smart city applications
  • Supports one 15W GbE PoE for camera
  • Wide operating temperature from -25°C to +70°C
  • Optional IP42 cover kit for semi-outdoor applications
  • Enables 24/7 secure remote monitoring, control, and OTA deployment, powered by Allxon
Rugged Design
Rugged Design

Operating temperature: -25°C to +70°C
IP42 Rating

AI Vision
AI Vision

Jetson Orin™ Nano / Up to 67 TOPS
PoE Port

Compact Size
Compact Size

148.6 mm × 129.8 mm × 34.6 mm



Powered with NVIDIA Jetson Orin

The AIE100-ONX system is an edge AI system powered by the NVIDIA® Jetson Orin™ Nano platform, which features a 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU (1.5MB L2 + 4MB L3), delivering up to 67 TOPS of accelerated AI computing performance, and integrates an advanced 1024-core NVIDIA Ampere GPU with 32 Tensor Cores.

Partner with NVIDIA JetPack Ecosystem

The AIE100-ONX system can seamlessly integrate with the full portfolio of NVIDIA JetPack, offering a comprehensive development environment tailored for accelerated development on NVIDIA Jetson modules.




Compact yet Evolving

By leveraging the ultra-compact form factor of the NVIDIA® Jetson Orin™ Nano, the AIE100-ONX delivers exceptional deployment flexibility for space-constrained environments while providing room for future expansion. With a full-size PCI Express Mini Card slot, an M.2 Key M 2280 slot supporting PCIe x4 NVMe SSD, and a SIM card slot for convenient network connectivity, the system adapts easily to evolving application needs. Combined with NVIDIA JetPack and Jetson Generative AI Lab, developers can accelerate AI development and shorten time to market.

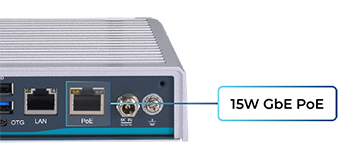

15 W GbE PoE Port

The AIE100-ONX features a 15 W GbE PoE port for robotics and intelligent video analytics deployments. This enables customers to simplify integration with cameras and sensors.

15W GbE PoE Port

Rugged & Reliable Design

The AIE100-ONX operates efficiently within a wide temperature range of -25°C to +70°C and can withstand vibrations up to 3 Grms. In addition to fanless operation, it offers an optional waterproof IP42-rated cover kit for enhanced protection in semi-outdoor environments.

Rugged & Reliable Design


Applications

Railway Safety

  • Crowd Management
  • Passenger Counting
  • Security Warnings
  • Abnormal Behavior Detection
  • Passenger Flow Detection

Customer Analysis

  • Facial Recognition
  • People Counting
  • People Flow Detection
  • Abnormal Behavior Detection

Smart Manufacturing

  • Appearance Defect Detection
  • Object Filtering and Sorting
  • Size, Shape and Color Detection

Smart Parking

  • ANPR/ALPR Solutions
  • Parking Space Detection
  • Automatic Paying
  • VIP/Valet Parking Management

Rich I/O Interfaces

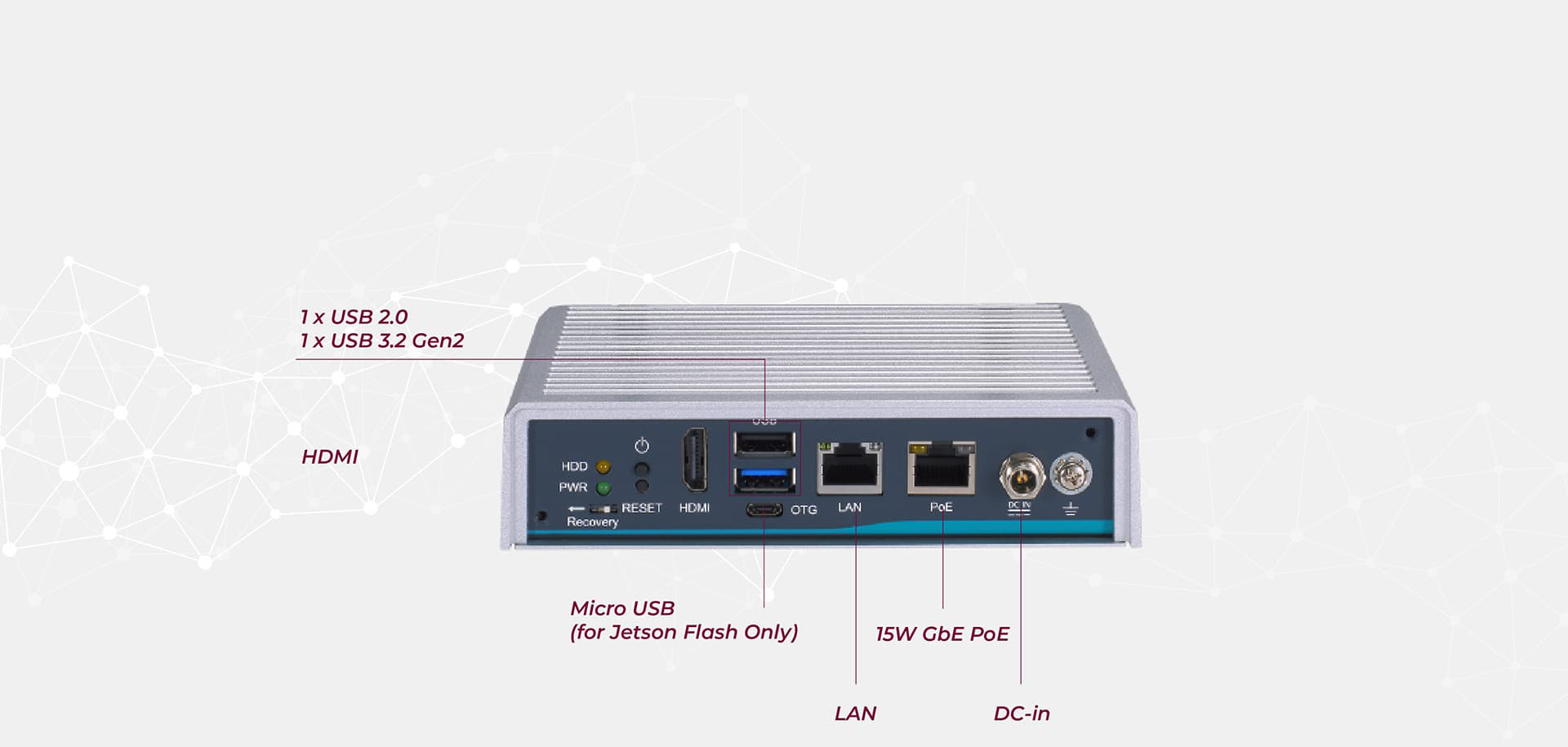

Front View
AIE100-ONX Front I/O

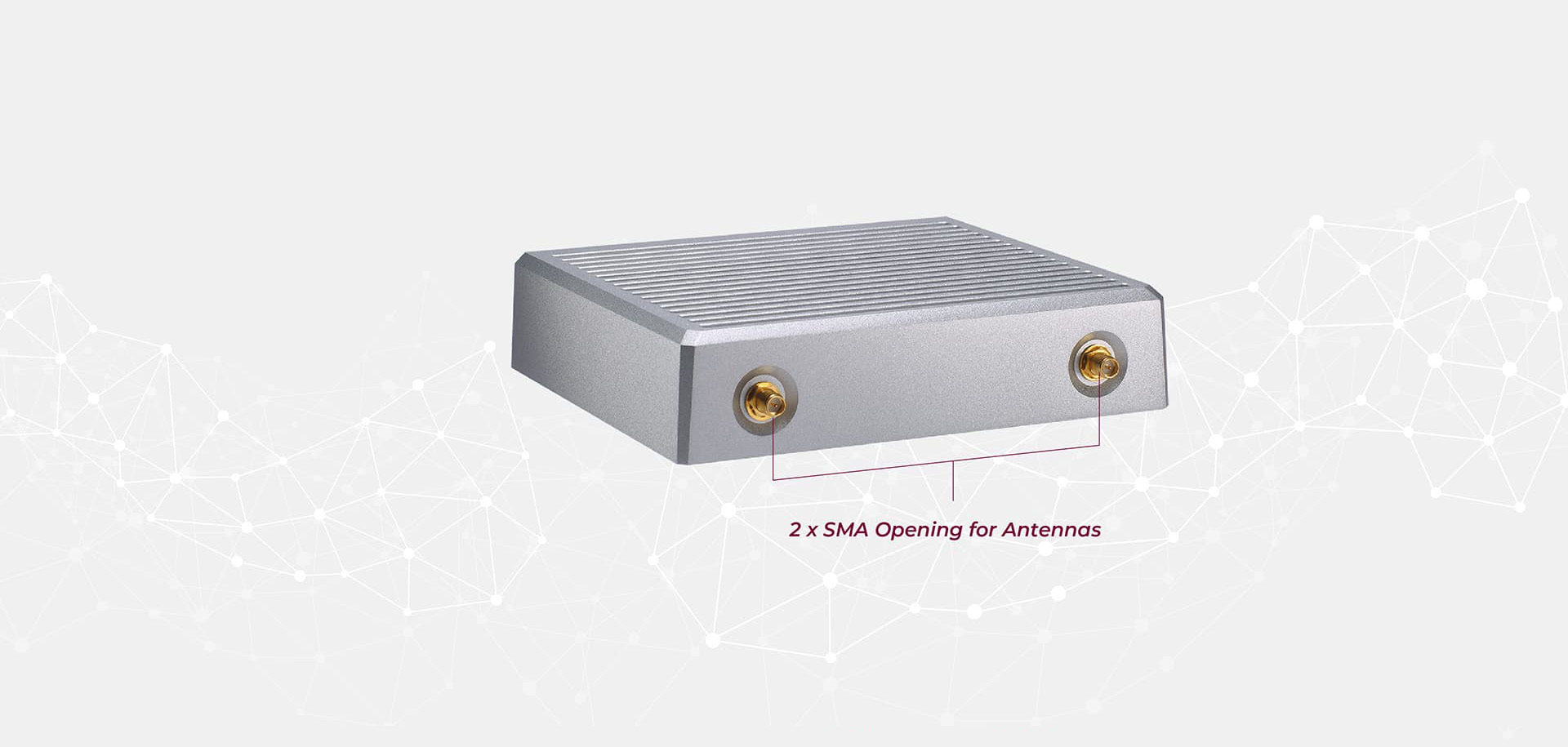

Rear View
AIE100-ONX Rear I/O

Specifications

AI Accelerator
  • NVIDIA® Jetson Orin™ Nano (up to 67 TOPS)
CPU
  • 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
GPU
  • 4GB: 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
  • 8GB: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
Chipset
  • SoC integrated
System Memory
  • 4GB 64-bit LPDDR5 onboard
  • 8GB 128-bit LPDDR5 onboard
COM
  • N/A
USB
  • 1 x USB 3.2 Gen2
  • 1 x USB 2.0
  • 1 x Micro USB for image flash
Ethernet/PoE
  • 1 x 10/100/1000 Mbps Ethernet (via Jetson Orin™ Nano)
  • 1 x 10/100/1000 Mbps PoE (Intel® I210-IT, up to 15W)
GMSL
  • N/A
Display
  • 1 x HDMI 1.4 with 4K2K supported
Digital I/O
  • N/A
Audio
  • N/A
Storage
  • 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
Expansion
  • 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
  • 1 x SIM slot
Others
  • 1 x Recovery switch
  • 1 x Reset button
  • 1 x Power button
  • 1 x 12 VDC power input connector
  • 2 x SMA-type antenna connector
Power Supply
  • 12 VDC screw type
Watchdog Timer
  • Built-in Orin Nano
Construction
  • Aluminum extrusion and heavy-duty steel, IP40 (IP42 by optional cover kit)
Operating Temperature
  • AIE100-ONA-8GB: -25°C to +60°C (-13°F to +140°F)
  • AIE100-ONA-4GB: -25°C to +70°C (-13°F to +158°F)
  • *Super mode: -25°C to +60°C (-13°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Vibration
  • IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
Shock
  • IEC 60068-2-27 (with SSD: 50G, half-sine, 11 ms duration)
Dimensions (W x D x H)
  • 148.6 x 129.8 x 34.6 mm (5.85" x 5.11" x 1.36")
Weight (net/gross)
  • 0.9 kg (1.93 lb)/1.8 kg (3.97 lb)
Certifications
  • CE, FCC Class A, and UKCA
EOS Support
  • Linux Ubuntu 20.04 or later
  • *Super mode is only supported in Jetpack 6.2 or above
Mounting
  • Wall mount kit
  • DIN-rail kit
  • VESA mount kit

Ordering Information

  • AIE100-ONA-4GB (P/N-E27H100107)
    Fanless edge AI system with NVIDIA® Jetson Orin™ Nano 4GB, 1 HDMI, 1 GbE LAN, 1 GbE PoE, and 2 USB
  • AIE100-ONA-8GB (P/N-E27H100106)
    Fanless edge AI system with NVIDIA® Jetson Orin™ Nano 8GB, 1 HDMI, 1 GbE LAN, 1 GbE PoE, and 2 USB
  • E29R150100
    Wall mount kit
  • E29R150102
    DIN-rail kit
  • E29R150101
    VESA mount kit
  • E29R150103
    IP42 waterproof cover kit
  • M.2 NVMe SSD
    128GB or above
  • LTE module
  • Wi-Fi module
  • Power cord
  • 50966124050E
    12V/60W adapter
