P115-ADL-TRA

Status : Available

15" XGA TFT Expandable Industrial Touch Panel Computer with 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Celeron® or Pentium® Processor and PCIe Slot

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
P115-ADL-TRA
P115-ADL-TRA
P115-ADL-TRA
P115-ADL-TRA
Smart Fan

Smart Fan

TPM

TPM

Triple-View

Triple-View

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 15” XGA LCD with 300nits of brightness
  • 5-wire resistive touch
  • Supports one 2.5” SATA HDD/SSD
  • HDMI, DisplayPort and VGA output available for 2nd display
  • 1 flexible I/O window
  • Supports WLAN module and antenna (optional)
  • Supports 2 USB 3.2, 4 USB 2.0, and 2 COM (up to 4 COM with flexible I/O)
  • TPM 2.0 onboard
  • Supports panel, VESA and wall mount kit
  • 0°C to +50°C operating temperature

Specifications

LCD Panel
  • 15" XGA TFT LCD
  • 300 nits
  • 1024 x 768 pixels
CPU
  • LGA1700 socket 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3, Celeron® & Pentium® processor (Tj 100°C) TDP 35W/65W
Chipset
  • Intel® H610
System Memory
  • 2 x 260-pin DDR4-3200/2666/2400MHz SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 1 x RS-232
  • 1 x RS-232/422/485
USB
  • 2 x USB 3.2 Gen1
  • 4 x USB 2.0
Ethernet
  • 1 x 2500/1000/100/10Mbps Ethernet (Intel® I225-V )
  • 1 x 1000/100/10Mbps Ethernet (Intel® I219-V)
Display
  • 1 x HDMI
  • 1 x VGA
  • 1 x DisplayPort
Audio
  • 1 x Audio (Mic-in & Line-out)
Storage
  • 1 x 2.5” SATA HDD(WT)/SSD
Expansion
  • 1 x M.2 Key E 2230 (PCIe/USB 2.0 signal)
  • 1 x Full-size PCIe Mini Card slot (PCIe/USB signal + nano SIM slot)
  • 1 x PCIe x16 slot
  • 1 x Flexible IO window (optional)
Others
  • 1 x Remote power switch
  • 1 x AC socket
  • TPM 2.0
Touchscreen
  • 5-wire resistive touch
Front Bezel
  • Aluminum w/ IP65/NEMA 4 rugged protection
Power Supply
  • 100 to 240 VAC, 250W
Power Comsumption
  • 120W
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Operating Temperature
  • 0°C to +50°C (+32°F to +122°F)
Relative Humidity
  • 10% to 90% @ +40°C, non-considering
Vibration
  • 1G, 5 - 500Hz, operation (SSD, random)
Dimensions<br>(W x D x H)
  • 378.3 x 88.8 x 310.3 mm (14.89" x 3.5" x 12.22")
Weight (net/gross)
  • 6.3kg (13.89lb)/ 8.6kg (18.96lb)
Certifications
  • CE Class A, IEC/EN 61000-6-4, IEC/EN 61000-6-2, FCC 47 CFR Part 15 Subpart B (Class A), UKCA, and RoHS standard
EOS
  • Windows® 11, Windows® 11 IoT
Mounting
  • Wall mount kit
  • Stand kit

Ordering Information

  • P115-ADL-TRA (P/N-E226115100)
    15" XGA TFT expandable industrial touch panel computer with 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3, Celeron® or Pentium® processor and PCIe slot
  • Wi-Fi kit
  • E29R131114
    Wall mount kit
  • E226171119
    Stand kit
  • 59403200B00E
    Remote power switch cable (100 cm)
  • 59409322100E
    COM port cable DB9 DUPONT P=2.0 L=100MM
  • E392902103
    AX92902 full-size PCI Express Mini module with Gigabit LAN
  • E392903102
    AX92903 full-size PCI Express Mini module with CAN Bus
  • E392906101
    AX92906 full-size PCI Express Mini module with 2 COM
  • E392918103
    AX92918 full-size PCI Express Mini module with 2 Gigabit LAN

Download

Drivers

Date Description Version Download File
2024/11/01 OSD AP VA1.0
2024/03/18 Serial IO VA1.0
2024/03/18 PenMount Winows driver VA1.0
2024/03/18 ME VA1.0
2024/03/18 LAN VA1.0
2024/03/18 Inf VA1.0
2024/03/18 Graphic VA1.0

Software

Manual

Date Description Version Download File
2024/03/18 User's manual VA2

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2024/08/12 CE LVD Verification
2024/08/12 FCC Verification
2024/08/12 UKCA Declaration of Conformity
2024/08/12 CE-Conformity Declaration
2024/08/12 CE EMC Verification

Frequently Asked Questions

You Might Also Like

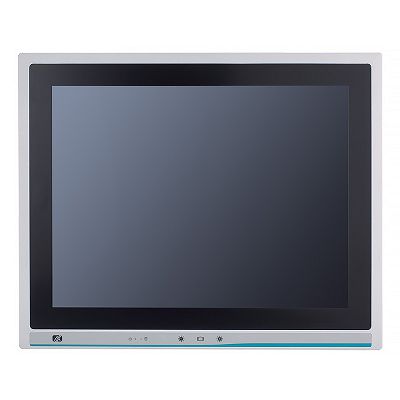

Picture of P117-ADL-TRA
