GOT3177T-834

Status : Available

17" SXGA TFT Flat Bezel Touch Panel Computer with Intel® Celeron® Processor J1900 (-10°C to +50°C)

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
GOT3177T-834
GOT3177T-834
GOT3177T-834
GOT3177T-834
Fanless

Fanless

IP65 Rating

IP65 Rating

Low Power

Low Power

Wide Power Input

Wide Power Input

Wide Temperature

Wide Temperature

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

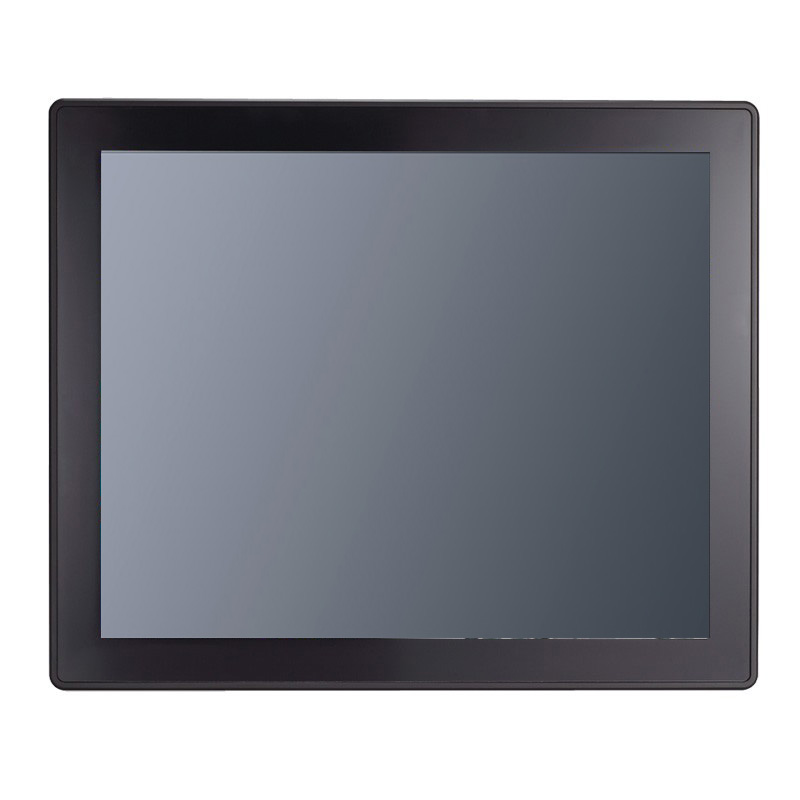

  • 17" SXGA TFT flat resistive touch
  • Fanless and modularized design
  • Intel® Bay Trail-D Celeron® processor J1900
  • 2.5" 7/9.5 mm SATA HDD & CFast™ or mSATA
  • WLAN/3G module & antenna (optional)

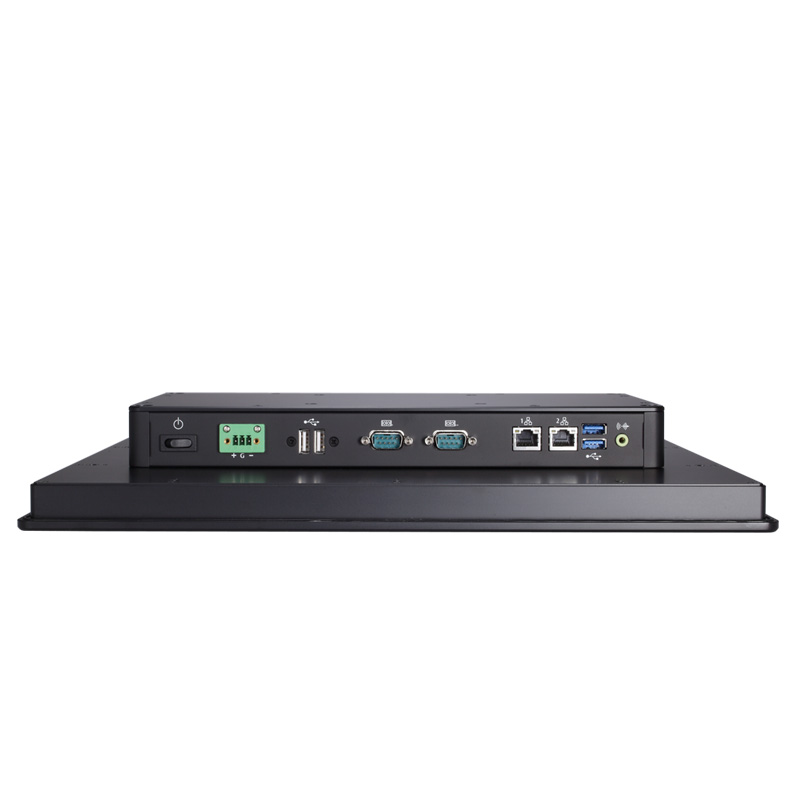

  • 2 GbE LAN, 2 USB 2.0, 2 USB 3.0 and 2 COM
  • IP65 front bezel

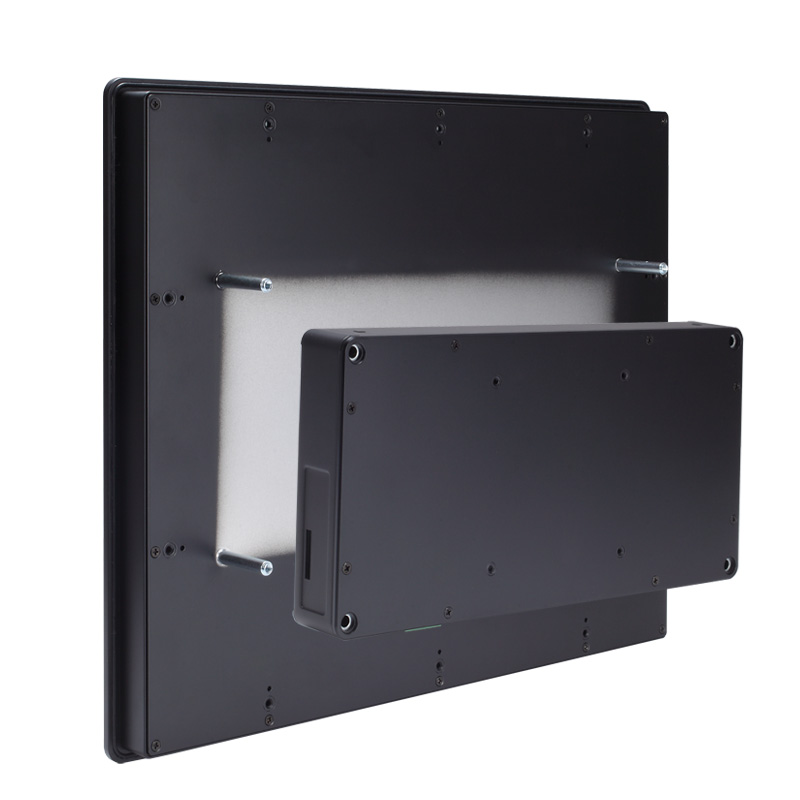

  • Supports panel mount and optional VESA arm/desktop stand/wall mount
  • -10°C to +50°C wide operating temperature range

Specifications

LCD Panel
  • 17" SXGA TFT LCD
  • 350 nits
  • 1280 x 1024 pixels
CPU
  • Intel® Celeron® processor J1900 4C @2.0 GHz
Chipset
  • SoC Integrated
System Memory
  • 1 x 204-pin DDR3L-1333 SO-DIMM, up to 8GB
BIOS
  • AMI
COM
  • 2 x RS-232/422/485 (default RS-232)
USB
  • 2 x USB 2.0
  • 2 x USB 3.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® I210-IT)
Display
  • N/A
Audio
  • 1 x Audio (Line-out)
Storage
  • 1 x 2.5" SATA HDD (7-9.5 mm height)
  • 1 x CFast™ or 1 x mSATA
Expansion
  • 1 x Full-size PCI Express Mini Card slot with SIM
  • 1 x Full-size PCI Express Mini Card slot with mSATA (optional)
Others
  • WLAN/3G module & antenna
Touchscreen
  • 5-wire resistive touch
Front Bezel
  • IP65 front bezel
Power Supply
  • 9 to 36 VDC with terminal block
Power Comsumption
  • 50W
Watchdog Timer
  • 255 levels, 0 to 255 sec.
Operating Temperature
  • -10°C to +50°C (+14°F to +122°F)
Relative Humidity
  • 20% to 90% @ +40°C; non-condensing
Vibration
  • 2G, 10 to 500Hz, random for CFast™
Dimensions<br>(W x D x H)
  • 398.02 x 59.9 x 330.44 mm (15.64" x 2.36" x13.01")
Weight (net/gross)
  • 4.8 kg (10.6 lb)/7.1 kg (15.67 lb)
Certifications
  • CE
EOS
  • WES 7, WES8, Windows® 8.1,Windows® 7
Mounting
  • Panel mount
  • VESA mount
  • Desktop stand
  • Wall mount

Ordering Information

  • GOT3177T-834-FR-DC (P/N-E223177100)
    17" SXGA TFT fanless touch panel computer with Intel® Celeron® J1900 2.0GHz quad core processor, 5-wire flat resistive touch screen and 9 to 36 VDC terminal block connector
  • Wi-Fi
  • E29R131114
    Wall mount kit
  • 50906D24000E
    Adaptor 24V/120W, wire only, FSP120-AAAN3

Download

Drivers

Date Description Version Download File
2018/12/18 Win10 driver VA1.8
2018/12/18 Win8.1 driver VA1.8
2018/12/18 Win7 driver VA1.8

Software

Manual

Date Description Version Download File
2018/12/18 GOT3177T-834-FR User's Manual VA3_09-10-2014 VA3

Design Guide

Technical Announcement

Certificates

You Might Also Like

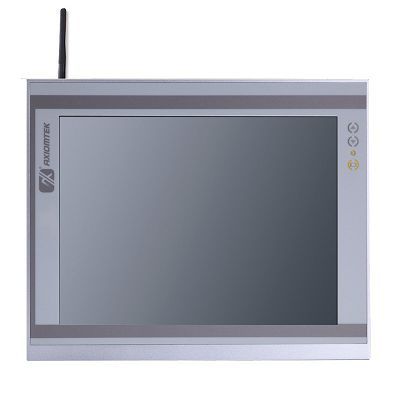

Picture of GOT3156T-834
