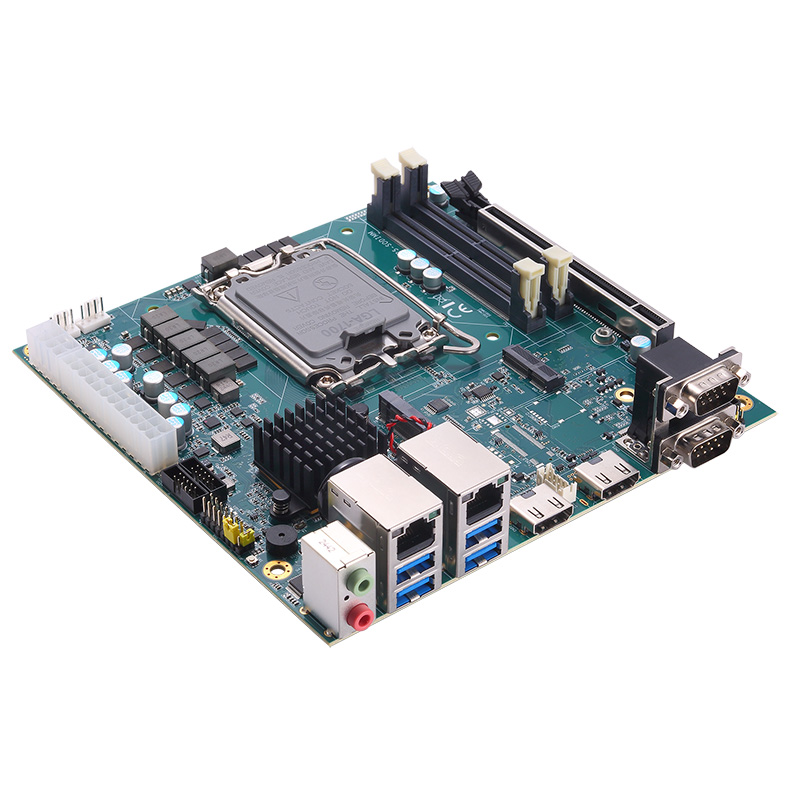

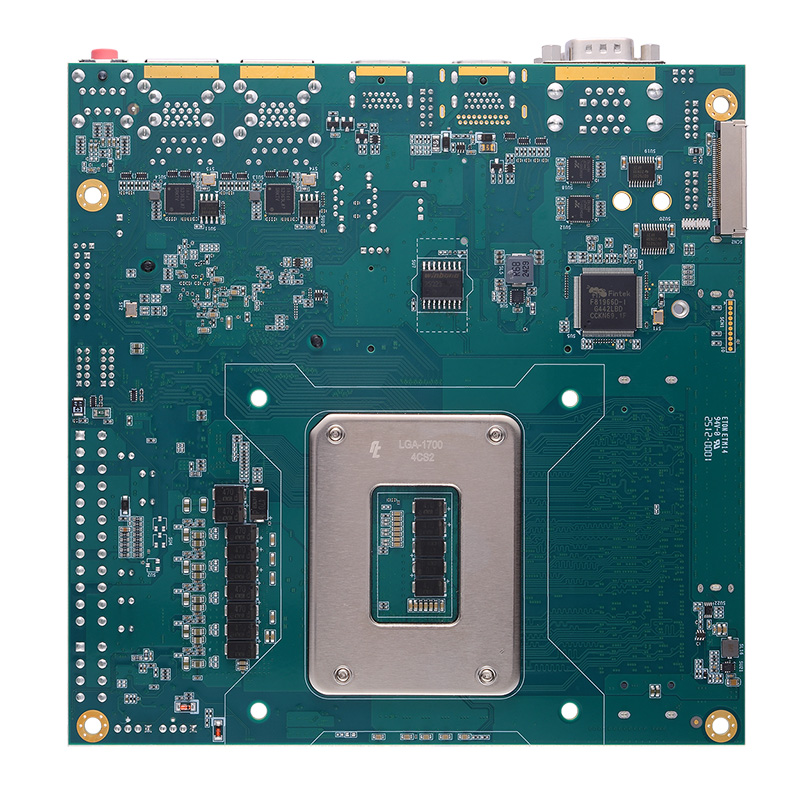

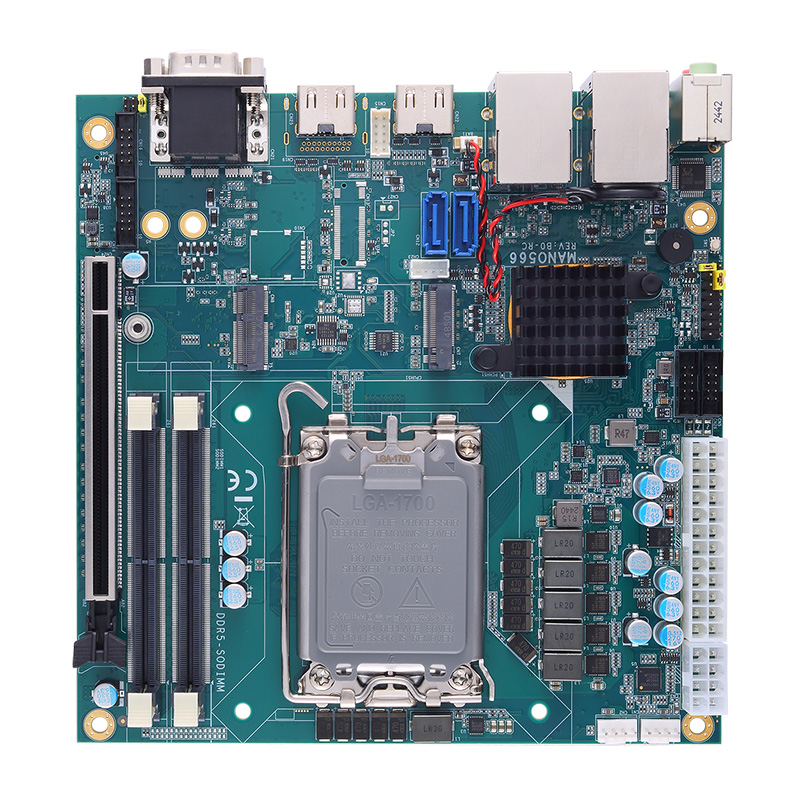

MANO566

Status : Available

Mini-ITX SBC with LGA1700 Socket 14th/13th/12th Gen Intel® Core™ Processor, Intel® Q670E/R680E/H610E/H610, 2 HDMI, DisplayPort++, eDP, 2 GbE LAN, and HD Audio

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
MANO566
MANO566
MANO566
MANO566
MANO566
MANO566
PCIe Expansion

PCIe Expansion

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • 14th/13th/12th Gen Intel® Core™ desktop power
  • Next-gen DDR5 or cost-effective DDR4 flexibility
  • Quad independent displays for visual applications
  • Next-gen 2.5GbE high-bandwidth networking
  • Comprehensive wireless & storage expansion via M.2
  • Industrial-grade connectivity and hardware security
High-performance CPU
High-performance CPU

12th/13th/14th Gen Intel Core™ processor

Rugged Design
High-Density Expansion

1 PCIe x16, 1 M.2 Key E 2230, and 1 M.2 Key B 3052/3042

Quad View Display
Quad View Display

1 x DisplayPort++, 1 x eDP, 2 x HDMI



Powerful Performance with 14th/13th/12th Gen Intel® Core™

The MANO566 supports 14th, 13th, and 12th Gen Intel® Core™ processors with Intel® Q670E, R680E, H610E, or H610 chipsets, delivering scalable computing performance for industrial and embedded applications.



Quad View Display Capability

Powered by the Intel® UHD Graphics 700 series engine, the MANO566 supports up to four independent displays through two HDMI ports, DisplayPort++, and eDP, depending on the selected SKU. This multi-display capability enables users to present different content across multiple screens while simultaneously running monitoring, visualization, control, and data-processing applications.

Realizing Machine Vision with Rich I/O Connectivity and PCIe x16

The MANO566 features a PCIe x16 slot to provide users with the flexibility to easily enhance visual data processing for legacy automation control devices, machine vision, and entry-level medical imaging. In addition, it features two GbE LAN, four COM, and eight USB ports to ensure swift and reliable connectivity when connecting sensors for manufacturing or real-time quality inspections.

TPM 2.0 & Hardware Monitoring

To ensure critical information security, the MANO566 features onboard TPM 2.0 and a watchdog timer, providing additional layers of protection.

TPM 2.0 & Hardware Monitoring

Rich Expansion and I/O Interface

The MANO566 has great expandability for wireless connections, including 5G, 4G, LTE, and Wi-Fi. To enable rich integration with various applications, it features 2 x LAN, 7 x USB, 4 x COM, and 1 x DIO.

Rich Expansion and I/O Interface

Great Expandability

  • 1 x PCIe x16 for graphic card
  • 1 x M.2 Key B 3042/3052 for 5G module
  • 1 x M.2 Key E 2230 for Wi-Fi/Bluetooth modules

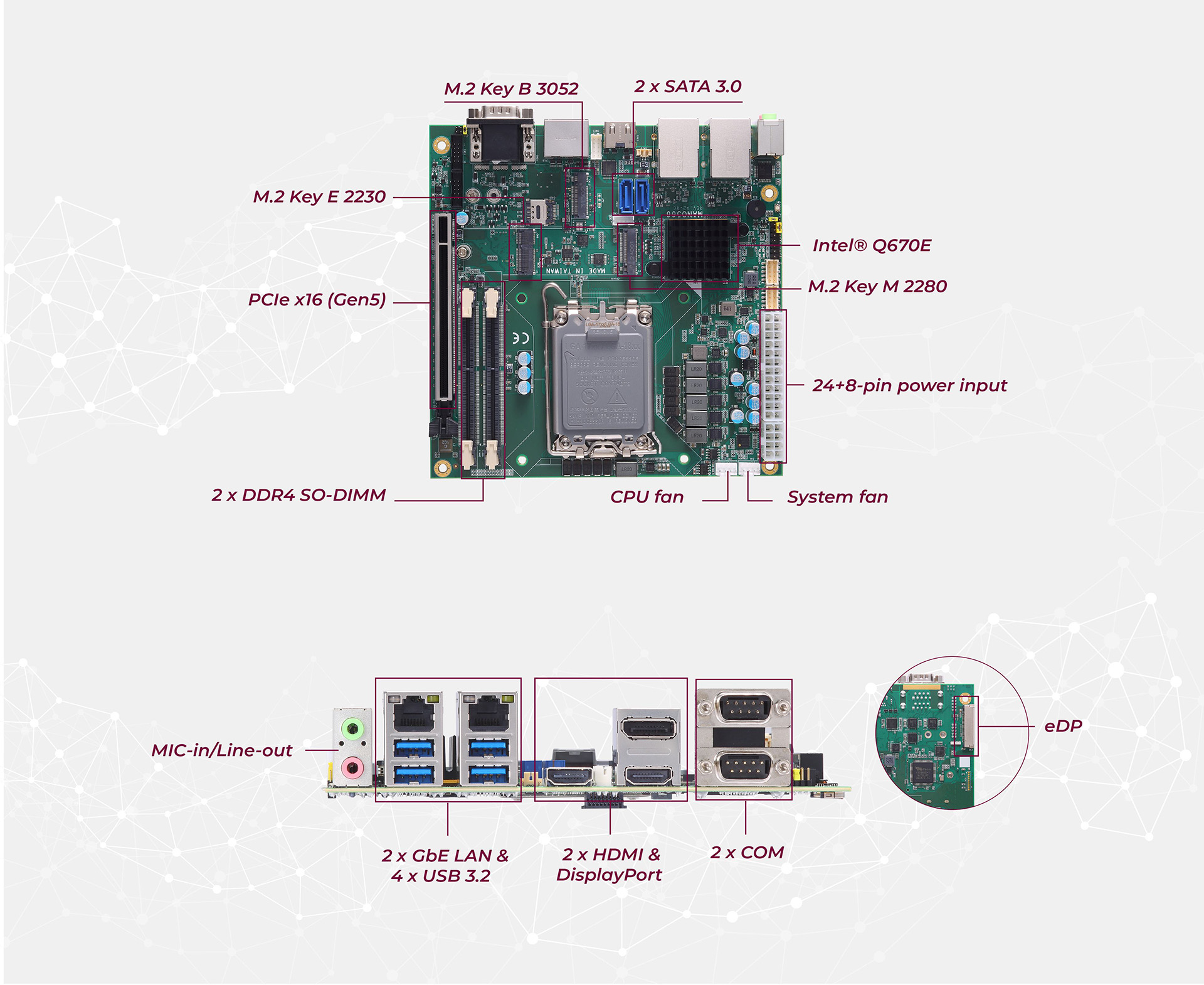

Rich I/O Interfaces

MANO566 I/O

Specifications

CPU
  • LGA1700 socket 14th/13th/12th gen Intel® Core™ i9/i7/i5/i3 or Celeron® processor (up to 65W)
Chipset
  • Intel® Q670E/R680E/H610E/H610
System Memory
  • 2 x 260-pin DDR4-3200 SO-DIMM, up to 64GB (PCB: V.A)
  • 2 x 262-pin DDR5-5600 SO-DIMM, up to 96GB (PCB: V.B)
BIOS
  • AMI
COM
  • 2 x RS-232/422/485 and 2 x RS-232/422/485 (internal) (for DDR4 version)
  • 2 x RS-232/422/485 and 2 x RS-232 (internal) (for DDR5 version)
USB
  • 4 x USB 3.2
  • 4 x USB 2.0 (Internal)
Ethernet
  • 2 x 2.5GbE LAN with Intel® I226-LM (Supports DDR4 Q670E/R680E SKUs; DDR5 R680E SKU)
  • 2 x 2.5GbE LAN with Intel® I226-V (Supports DDR4 H610E SKU; DDR5 Q670E/H610 SKU)
Display
  • 1 x DisplayPort++ (Supports H610/Q670E/R680E DDR4 SKUs & R680E DDR5 SKUs)
  • 1 x eDP
  • 2 x HDMI
GPIO
  • 8-channel programmable input/output
Audio
  • MIC-in/Line-out
Storage
  • 2 x SATA-600
  • 1 x M.2 Key M 2280 with support of NVMe
TPM
  • Onboard TPM 2.0 or fTPM (TPM only supports all SKUs of V.A and the R680E SKU of V.B.)
Expansion
  • 1 x PCIe x16
  • 1 x M.2 Key E 2230
  • 1 x M.2 Key B 3052/3042 (Supports Q670E/R680E DDR4 SKUs & R680E DDR5 SKUs)
Others
  • N/A
Battery
  • Lithium 3V/220mAH
Power Consumption (Max.)
  • Max. Load: +12V @ 3.4A, +5V @ 2.9A, +3.3V @ 2.1A, +5VSB @ 0.1A (63W)
  • Idle Mode: +12V @ 0.1A, +5V @ 0.1A, +3.3V @ 0.1A, +5VSB @ 0.6A (5W)
Power Input
  • 24+8-pin ATX connector
  • Supports AT Mode Auto Power-on
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 170 x 170 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • MANO566-Q670E-S (P/N-E38M566100)
    Mini-ITX SBC with LGA1700 socket 14th/13th/12th Gen Intel® Core™ processor, Intel® Q670E, 2 HDMI, DisplayPort++, eDP, 2 GbE LAN, HD audio, and single box packing
  • MANO566-H610E-S (P/N-E38M566101)
    Mini-ITX SBC with LGA1700 socket 14th/13th/12th Gen Intel® Core™ processor, Intel® H610E, 2 HDMI, DisplayPort++, eDP, 2 GbE LAN, HD audio, and single box packing
  • MANO566-H610-S5 (P/N-E38M566104)
    Mini-ITX SBC with LGA1700 socket 14th/13th/12th Gen Intel® Core™ processor, Intel® H610, DDR5, 2 HDMI, eDP, 2 GbE LAN, HD audio, fTPM, and single box packing
  • MANO566-Q670E-S5 (P/N-E38M566103)
    Mini-ITX SBC with LGA1700 socket 14th/13th/12th Gen Intel® Core™ processor, Intel® Q670E, DDR5, 2 HDMI, eDP, 2 GbE LAN, HD audio, fTPM, and single box packing
  • MANO566-R680E-S5 (PN-E38M566105)
    Mini-ITX SBC with LGA1700 14th/13th/12th Gen Intel® Core™ processor, Intel® R680E, DDR5, 2 HDMI, DisplayPort++, eDP, 2 GbE LAN, HD audio, and single box packing
  • 594E8422800E
    DDR4-V.A use/cable USB 2.0 x 2/HS2 x 5P P2.0 with BKT L = 18 cm
  • 591000018100
    DDR5-V.B use/cable USB 2.0 x 2/HS10 P2.0 180 mm with BKT
  • 59384500200E
    COM port x 2 cable with BKT P = 2.0 L = 250 mm
  • 713000001400
    LGA1700 cooler 2U 4800RPM
  • 505000001000
    LGA1700 cooler 1U 4500RPM
  • 505000001100
    LGA1700 cooler 1.5U 5500RPM

Download

Drivers

Date Description Version Download File
2026/02/24 RST VA1.3
2025/08/06 GNA Driver VA1.3
2025/08/06 DTT Driver VA1.3
2025/08/06 LAN Driver VA1.3
2025/08/06 ME Driver VA1.3
2025/08/06 Serial IO Driver VA1.3
2025/08/06 Graphic Driver VA1.3
2025/08/06 Chipset Driver VA1.3

Software

Manual

Date Description Version Download File
2026/05/06 User's Manual (DDR4) VA6
2026/05/06 User's Manual (DDR5) VB4

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2024/07/10 CE-Conformity Declaration
2024/07/10 UKCA Declaration of Conformity
