MANO560

Status : Available

Mini-ITX SBC with LGA1700 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Pentium® or Celeron® Processor, DisplayPort, HDMI, VGA, LVDS, USB 3.0, M.2, and Dual LAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote

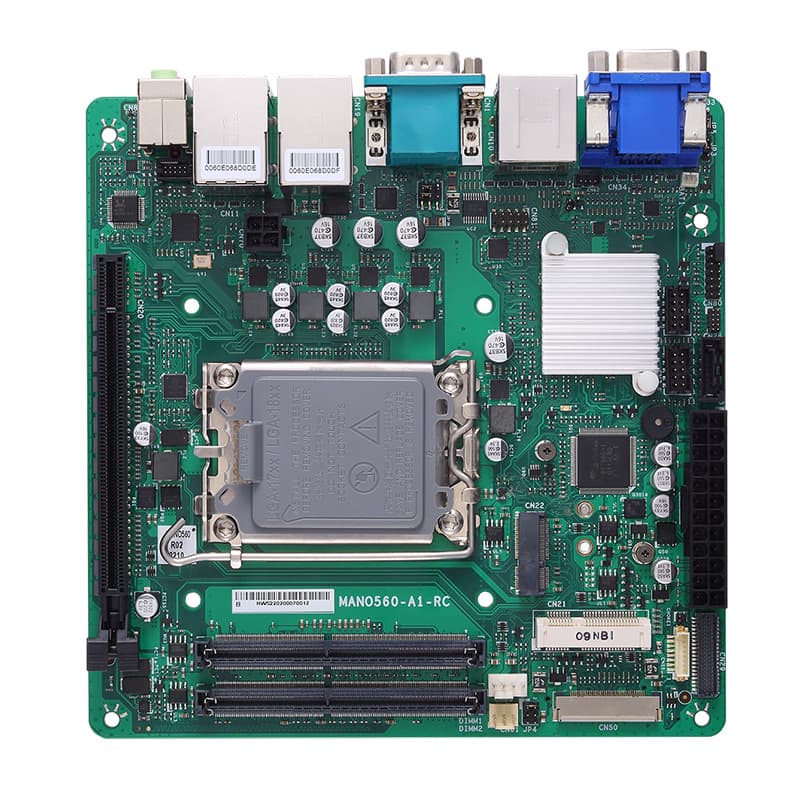

MANO560
MANO560
  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • LGA1700 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Pentium® or Celeron® processor
  • Intel® H610 chipset
  • 2 DDR4 SO-DIMM for up to 64GB memory
  • 2 USB 3.0, 5 USB 2.0 and 4 COM
  • 1 PCIe x16, 1 M.2 Key E, 1 M.2 Key B, and 1 PCI Express Mini PCI slot
  • 1 SATA-600
High-performance CPU
High-performance CPU

14th Gen Intel Core™ processor

Machine Vision
Machine Vision

PCIe x16 Gen4

Triple View Display
Quad-View Display

DisplayPort, HDMI, LVDS/eDP, and VGA



Powerful Performance with 14th Gen Intel® Core™

The MANO560, powered by 14th Gen Intel® Core™ processors, offers enhanced performance with up to twenty-four cores, thirty-two threads, and single-core turbo frequencies up to 5.8 GHz. Paired with the Intel® H610 chipset, it delivers outstanding processing efficiency.



Realizing Machine Vision with Rich I/O and PCIe 4.0 x16

The MANO560 features a PCIe x16 Gen4 slot to accommodate a powerful GPU card for intensive graphics processing tasks, escalating the machine vision capability to the next level, allowing users to easily enhance visual data processing for legacy automation control devices, machine vision, and entry-level medical imaging. In addition, it provides one 2.5GbE LAN port, one Gigabit LAN port, four COM ports, and seven USB ports for reliable peripheral and network connectivity.



Quad-View Display Capability

Powered by Intel® UHD Graphics, the MANO560 supports up to four display outputs through DisplayPort, HDMI, LVDS with optional eDP support, and VGA. This flexible display configuration enables users to present different content across multiple screens while supporting monitoring, visualization, control, and data-processing workflows. It is well suited for industrial automation, machine vision, medical imaging, digital signage, and other applications requiring expanded visual workspace and flexible display connectivity.



TPM 2.0 & Hardware Monitoring

To ensure critical information security, the MANO560 features onboard TPM 2.0 and a watchdog timer, adding layers of security.

TPM 2.0 & Hardware Monitoring

Rich Expansion and I/O Interface

The MANO560 offers flexible expansion options for wireless connectivity, including 5G, 4G LTE, Wi-Fi, and Bluetooth. To enable rich integration with various applications, it features 2 x LAN, 7 x USB, 4 x COM, and 1 x DIO.

Rich Expansion and I/O Interface

Great Expandability

  • 1 x PCIe x16 Gen4 for graphic card
  • 1 x M.2 Key B 3042/3052/2242 for 5G module or SATA for SSD
  • 1 x M.2 Key E 2230 for Wi-Fi/Bluetooth modules
  • 1 x PCIe Mini Card slot for wireless module



Rich I/O Interfaces

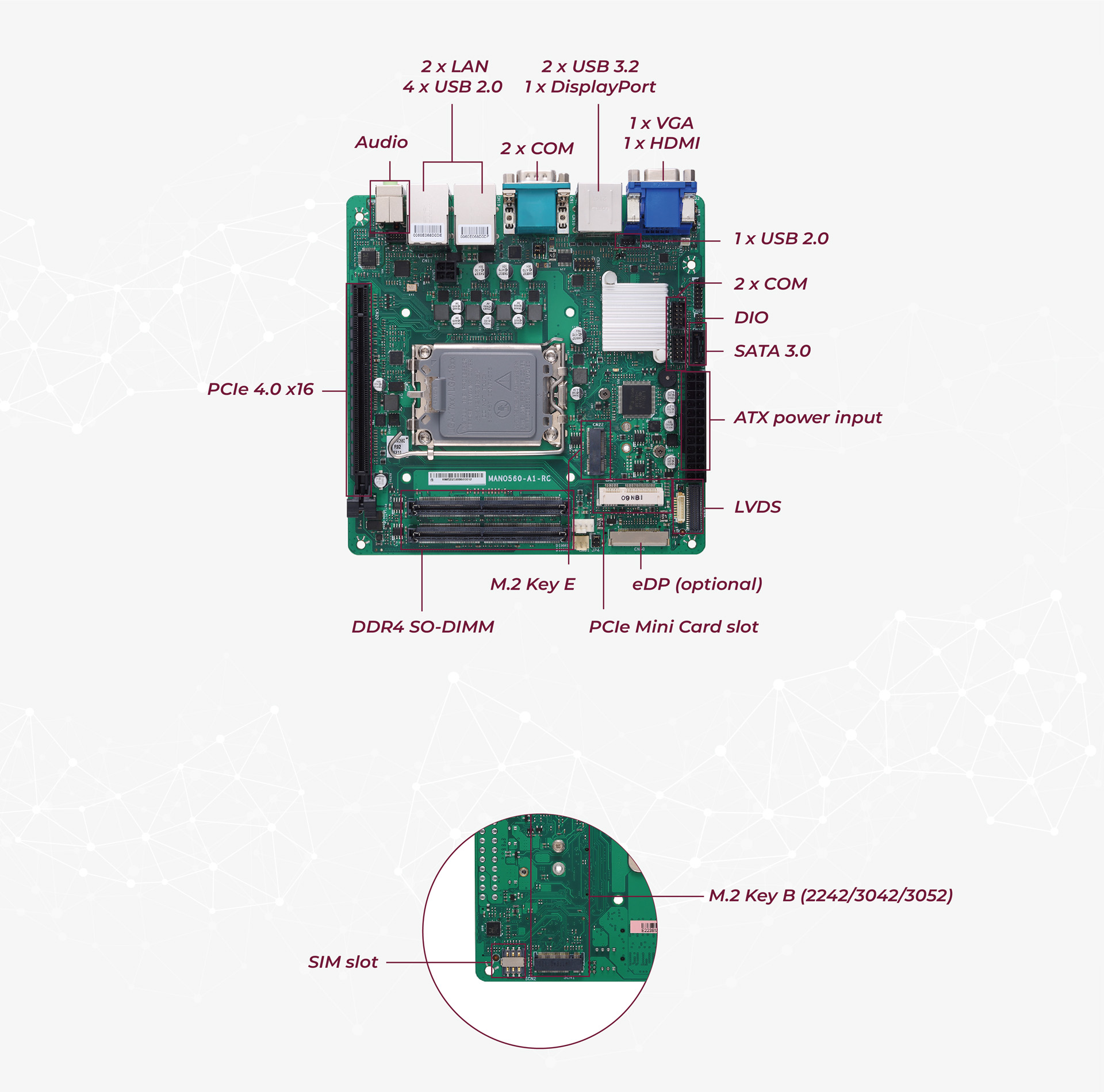

MANO560 I/O

Specifications

CPU
  • LGA1700 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Pentium® or Celeron® processor (up to 65W)
Chipset
  • Intel® H610
System Memory
  • 2 x 260-pin DDR4-3200/2666/2400 SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (with +5V/+12V power)
  • 3 x RS-232
USB
  • 2 x USB 3.0
  • 5 x USB 2.0
Ethernet
  • 1 x 2500/1000/100/10 Mbps Ethernet (Intel® I225-V)
  • 1 x 1000/100/10 Mbps Ethernet (Intel® I219-V)
Display
  • 1 x DisplayPort
  • 1 x HDMI
  • 1 x LVDS (eDP BOM optional)
  • 1 x VGA
GPIO
  • 8-channel programmable input/output
Audio
  • MIC-in/Line-in/Line-out
Storage
  • 1 x SATA-600
  • 1 x M.2 Key B
TPM
  • Onboard TPM 2.0 (TPM IC: SLB9670)
Expansion
  • 1 x PCIe x16
  • 1 x M.2 Key B
  • 1 x M.2 Key E 2230
  • 1 x PCIe Mini Card slot
Others
  • N/A
Battery
  • Lithium 3V/220mAH
Power Input
  • Standard 12V ATX power
  • 24+4 pin ATX connector
  • AT mode auto power function supported
Power Consumption (Max.)
  • 160W
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 170 x 170 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • MANO560-H-B-U (P/N-E38M560100)
    Mini-ITX SBC with LGA1700 14th/13th/12th Gen Intel® Core™ processor, DisplayPort, HDMI, VGA, LVDS, USB 3.0, M.2 for USB 3.0 interface, mPCIe (SATA+USB), dual LAN, HD audio, and bulk packing
  • MANO560-H-S-U (P/N-E38M560101)
    Mini-ITX SBC with LGA1700 14th/13th/12th Gen Intel® Core™ processor, DisplayPort, HDMI, VGA, LVDS, USB 3.0, M.2 for USB 3.0 interface, mPCIe (SATA+USB), dual LAN, HD audio, and single box packing
  • MANO560-H-B-S (P/N-E38M560102)
    Mini-ITX SBC with LGA1700 14th/13th/12th Gen Intel® Core™ processor, DisplayPort, HDMI, VGA, LVDS, USB 3.0, M.2 for SATA interface, mPCIe (PCIe+USB), dual LAN, HD audio, and bulk packing
  • MANO560-H-S-S (P/N-E38M560103)
    Mini-ITX SBC with LGA1700 14th/13th/12th Gen Intel® Core™ processor, DisplayPort, HDMI, VGA, LVDS, USB 3.0, M.2 for SATA interface, mPCIe (PCIe+USB), dual LAN, HD audio, and single box packing
  • 505000001000
    LGA1700 cooler 1U 4500 RPM
  • 505000001100
    LGA1700 cooler 1.5U 5500 RPM
  • 594P8802810E
    USB cable L
  • 590000039200
    COM cable D-Sub 9P to DuPont 2 x 5 P2.0 L=300 mm
  • 594E3628010E
    SATA 2.0 signal cable 180D, L=250 mm (RC)
  • ECM500 (P/N-E272500109)
    Embedded MicroBox for low power Mini-ITX SBC

Download

Drivers

Date Description Version Download File
2024/12/05 Serial IO Driver for Windows 10 VA1.1
2024/12/05 LAN Driver for Windows 10 VA1.1
2024/12/05 Audio Driver for Windows 10 VA1.1
2024/12/05 ME Driver for Windows 10 VA1.1
2024/12/05 Graphics Driver for Windows 10 VA1.1
2024/12/05 Chip Driver for Windows 10 VA1.1

Software

Manual

Date Description Version Download File
2025/02/05 User's Manual VA4.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2022/06/30 UKCA Declaration of Conformity
