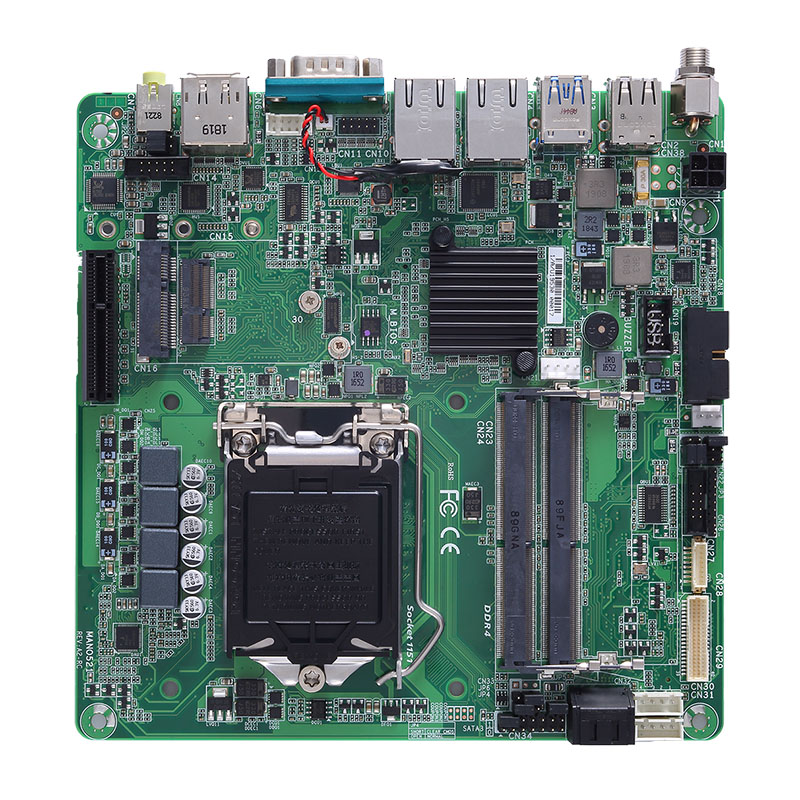

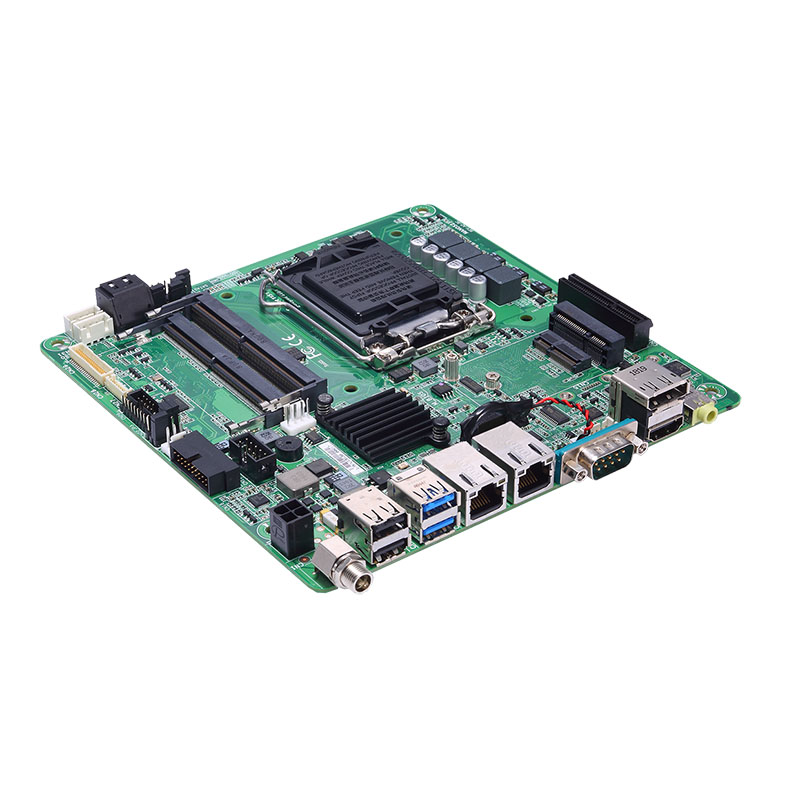

MANO521

Status : Available

Thin Mini-ITX SBC with LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3 Processor, DisplayPort++, HDMI, LVDS, VGA, USB 3.0, M.2 and Dual GbE LAN

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
MANO521
MANO521
MANO521
Low Profile

Low Profile

PCIe x4

PCIe x4

TPM

TPM

Triple-View

Triple-View

  • Features
  • Specifications
  • Ordering Information
  • Download
  • FAQ

Features

  • LGA1151 9th/8th gen Intel® Core™ i7/i5/i3 processor
  • Intel® H310 chipset (Q370 optional)
  • 2 DDR4 SO-DIMM for up to 64GB of memory
  • 4 USB 3.0 and 4 USB 2.0 ports
  • 2 COM ports
  • 2 SATA-600, mSATA and M.2 Key M (NVMe)
  • PCIe x4, M.2 Key E, PCI Express Mini Card slot

Specifications

CPU
  • LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (up to 65W)
Chipset
  • Intel® H310
  • Intel® Q370 (optional)
System Memory
  • 2 x 260-pin DDR4-2666/2400 SO-DIMM, up to 64GB
BIOS
  • AMI
COM
  • 1 x RS-232/422/485
  • 1 x RS-232
USB
  • 4 x USB 3.0
  • 4 x USB 2.0
Ethernet
  • 2 x 10/100/1000 Mbps (Intel® i211-AT & Intel® i219-V (LM))
Display
  • 1 x DisplayPort++
  • 1 x HDMI 1.4b (3840 x 2160 @30Hz)
  • 1 x LVDS
  • 1 x VGA (Wafer connector)
  • 1 x eDP (optional)
GPIO
  • 8-channel in/out programmed
Audio
  • MIC-in/Line-in/Line-out
Storage
  • 2 x SATA-600
  • 1 x mSATA
  • 1 x M.2 Key M (22 x 42/22 x 60/22 x 80); supports NVMe
Expansion
  • 1 x PCIe x4
  • 1 x M.2 Key E (22 x 30)
  • 1 x Full-size PCI Express Mini Card slot
Others
  • Infineon SLB9665TT2.0 with TPM 2.0 compliant
Battery
  • Lithium 3V/220mAH
Power Input
  • DC Power Jack connector
  • ATX 2 x 2-pin vertical/horizontal(optional) connector support 12V, 19V to 24 VDC input
  • AT Auto Power On function supported
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 170 x 170 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • MANO521PHGGA-H310 (P/N-E38M521100)
    Mini-ITX SBC with LGA1151 9th/8th gen Intel® Core™ processor, Intel® H310, DisplayPort++, HDMI, LVDS, VGA, 2 COM, USB 3.0, M.2, mSATA, PCI Express Mini Card, 2 GbE LAN and HD audio
  • MANO521PHGGA-Q370
    Mini-ITX SBC with LGA1151 8th gen Intel® Core™ processor, Intel® Q370, DisplayPort++, HDMI, LVDS, VGA, 2 COM, USB 3.0, M.2, mSATA, PCI Express Mini Card, 2 GbE LAN and HD audio
  • 5938A808010E
    2 x USB 2.0 cable with bracket, 10P-Key
  • 594N5002800E
    USB 3.0 cable 20P/2 x USB A-Type/FE, L=22 cm
  • 59382620000E
    COM port with bracket, P=2 mm
  • 59406260610E
    SATA Power 15P to housing-2.54P, L=10 cm
  • 59384500100E
    SBC84500 audio cable with bracket, P=2.0 mm, L=420 mm
  • 5095AD24000E
    Adapter 19V 120W w/screw FSP
  • 713PL76A000E
    LGA1156 1.5U cooler
  • 71070403010E
    LGA1156 low profile cooler 15 mm height
  • 710G3118000E
    LGA1156 low profile cooler 15 mm height
  • 594K2382000E
    VGA D-Sub 15P to PHD2.0, 2x5P, L=8 cm
  • 5077L07C100E
    LGA1156 1U cooler, 5500 RPM

Download

Drivers

Date Description Version Download File
2020/05/19 IRST Driver V1.2
2020/05/19 Audio Driver V1.2
2020/05/19 Serial IO Driver V1.2
2020/05/19 Graphic Driver V1.2
2020/05/19 LAN Driver V1.2
2020/05/19 ME Driver V1.2
2020/05/19 Chipset Driver V1.2

Software

Manual

Date Description Version Download File
2024/08/22 User' s Manual V3.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/03 UKCA Declaration of Conformity
2021/04/15 CE-Conformity Declaration

Frequently Asked Questions

You Might Also Like

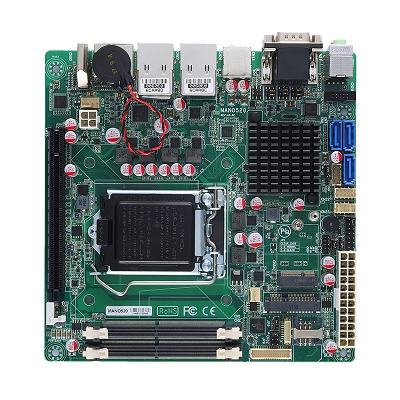

Picture of MANO520

MANO520

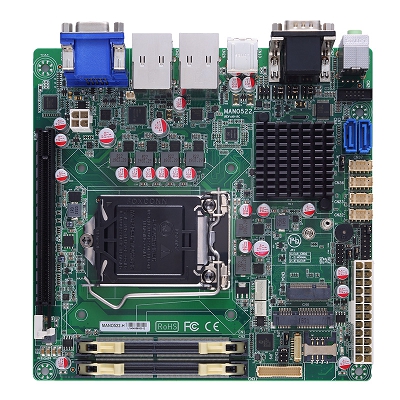

Picture of MANO522
