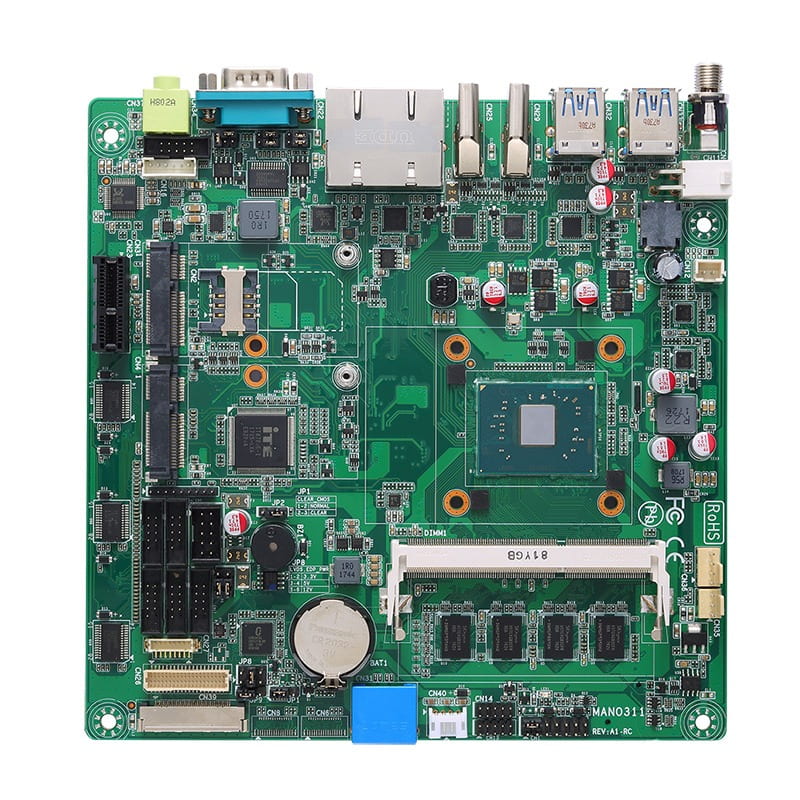

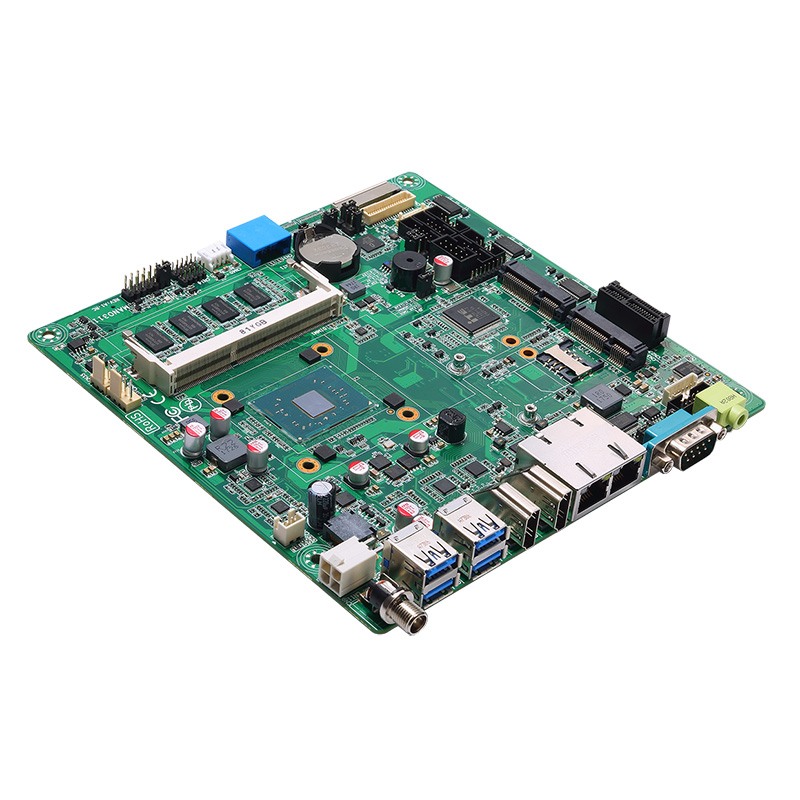

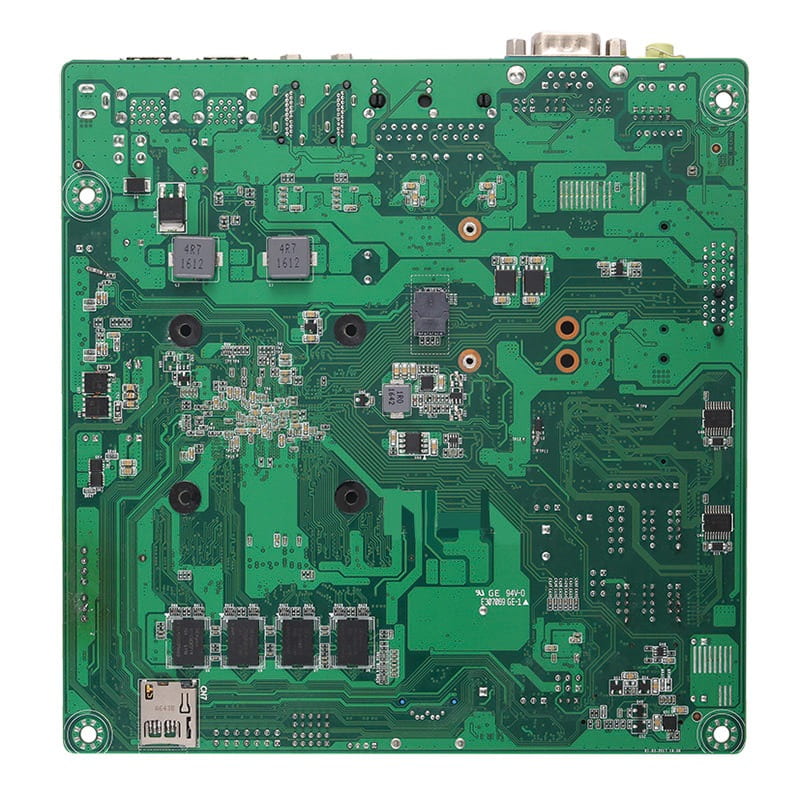

MANO311

Status : Available

Thin Mini-ITX SBC with Intel® Celeron® Processor N3350, Dual HDMI, LVDS, USB 3.0, PCI Express Mini Card, mSATA and HD Audio

Datasheet
Datasheet (PDF)
Add to Compare
Add to Compare
Get a Quote
Get a Quote
MANO311
MANO311
MANO311
Fanless

Fanless

Low Power

Low Power

Low Profile

Low Profile

TPM

TPM

Triple-View

Triple-View

  • Features
  • Specifications
  • Ordering Information
  • Download

Features

  • Intel® Celeron® processor N3350
  • 1 DDR3L SO-DIMM for up to 8GB of memory
  • 4GB DDR3L onboard memory (optional)
  • 1 PCI Express Mini Card slot and PCIe x1
  • 4 USB 3.0 and 2 USB 2.0
  • 1 SATA-600, 1 mSATA and 1 SDXC
  • 6 COM supported
  • Low profile

Specifications

CPU
  • Intel® Celeron® processor N3350
Chipset
  • SoC integrated
System Memory
  • 1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB
  • 4GB onboard memory (optional)
BIOS
  • AMI
COM
  • 1 x RS-232/422/485 (Rear I/O)
  • 5 x RS-232 (One with +5/+12V powered)
USB
  • 2 x USB 2.0 (internal)
  • 4 x USB 3.0 (rear I/O)
Ethernet
  • 2 x 10/100/1000 Mbps (Realtek RTL8111F)
Display
  • 2 x HDMI
  • 1 x LVDS
  • 1 x eDP (optional)
GPIO
  • 16-channel in/out programmable
Audio
  • Mic-in/Line-out
Storage
  • 1 x mSATA
  • 1 x SDXC slot
  • 1 x SATA-600
Expansion
  • 1 x PCIe x1
  • 1 x PCI Express Mini Card slot
  • 1 x SIM card slot
Others
  • 1 x PS/2 keyboard and mouse
Battery
  • Lithium 3V/220 mAH
Power Input
  • 1 x 12V/5A DC jack power
  • 1 x 12V to 24V 4-pin ATX power
Watchdog Timer
  • 255 levels, 1 to 255 sec.
Hardware Monitoring
  • Yes
Operating Temperature
  • 0°C to +60°C (+32°F to +140°F)
Relative Humidity
  • 10% to 95% relative humidity, non-condensing
Dimensions
  • 170 x 170 mm
Board Thickness
  • 1.6 mm
Certifications
  • CE

Ordering Information

  • MANO311HGGA-N3350 (P/N-E38M311100)
    Mini-ITX SBC with Intel® Celeron® processor N3350 (1.1 to 2.4 GHz, 2MB cache, 6W), 2 HDMI, LVDS, 2 GbE LANs, 6 COM, USB 3.0, mSATA, PCI Express Mini Card slot and HD audio
  • 594P8800600E
    SATA power cable, 4-pin to 15-pin, P=2.0 mm, L=200 mm
  • 59382620000E
    COM port cable, P=2.0 mm, L=300 mm
  • 594M5002A00E
    6-pin wafer to PS/2 cable, P=2.0 mm, L=200 mm
  • 59384500100E
    Audio cable with bracket, P=2.0 mm, L=420 mm
  • 59386831000E
    2-port USB cable with bracket, 5-pin header, P=2.54 mm, L=180 mm
  • 59381560000E
    6-pin PS/2 cable adapter
  • E9CA000012
    MANO311 half-height rear I/O metal shield

Download

Drivers

Date Description Version Download File
2025/09/04 Audio Driver V1.1
2018/07/19 Win10_Driver_TXE V1.0
2018/07/19 Win10_Driver_Serial IO V1.0
2018/07/19 Win10_Driver_Graphics V1.0
2018/07/19 Win10_Driver_LAN V1.0
2018/07/19 Win10_Driver_Chipset V1.0

Software

Manual

Date Description Version Download File
2019/06/25 User's Manual V2.0

Design Guide

Technical Announcement

Certificates

Date Description Version Download File
2021/12/03 UKCA Declaration of Conformity
2021/04/15 CE-Conformity Declaration

You Might Also Like

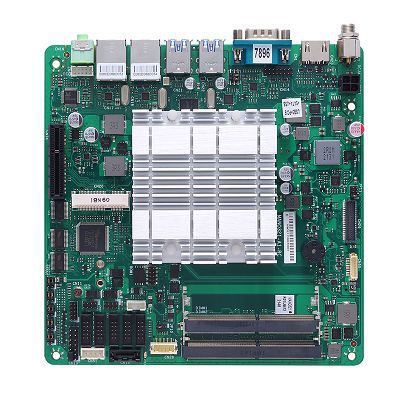

Picture of MANO321
