Features
- Designed for PICMG 1.3 half-size SBC
- Compatible with the AX60551, AX60552 chassis
- Supports one PICMG 1.3 CPU card slot, one PCI Express x16 slot, and six 32bit/33MHz PCI slots
Introduction

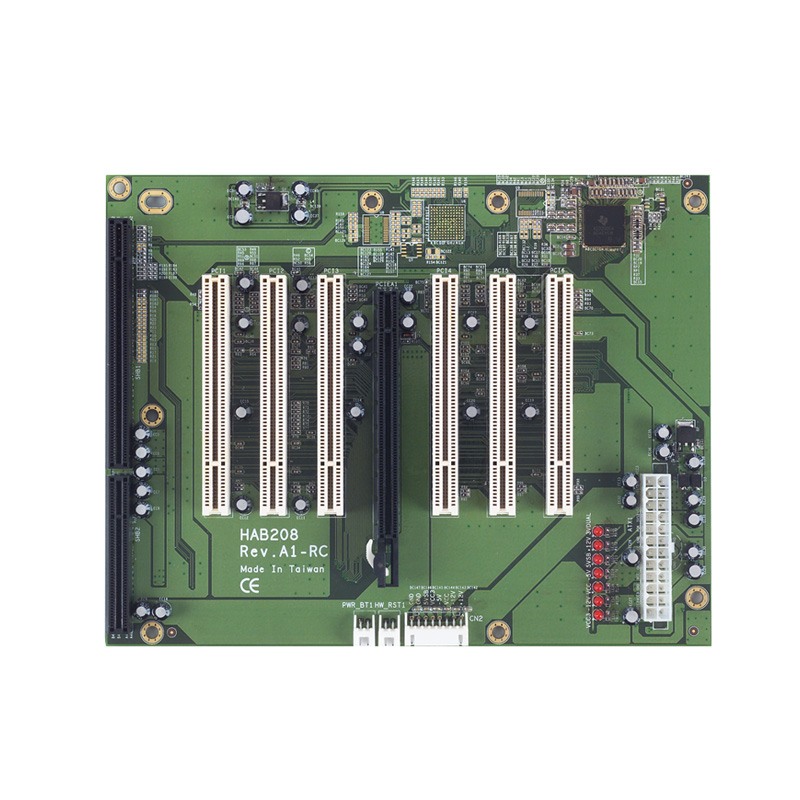

The HAB208 has a PICMG 1.3 CPU card slot, a PCIe x 16 slot and a total of six 32bit/33MHz PCI slots. The onboard 24-pin ATX power connector and 8-pin connector for thermal detected board are featured. Furthermore, the backplane supports two onboard SATA ports (optional function). The HAB208 is perfect fit for AXIOMTEK's half-size CPU cards, the SHB210 and SHB211, which are built around the PICMG 1.3 form factor. We have enclosures, the AX60551 & AX60552, to house the backplane.
