Features
- Designed for PICMG 1.3 SBC
- Compatible with AX60551 / AX60552 chassis
- Supports one PICMG 1.3 CPU card slot, one PCIe x16 slot, and six 32bit/33MHz PCI slots
Introduction

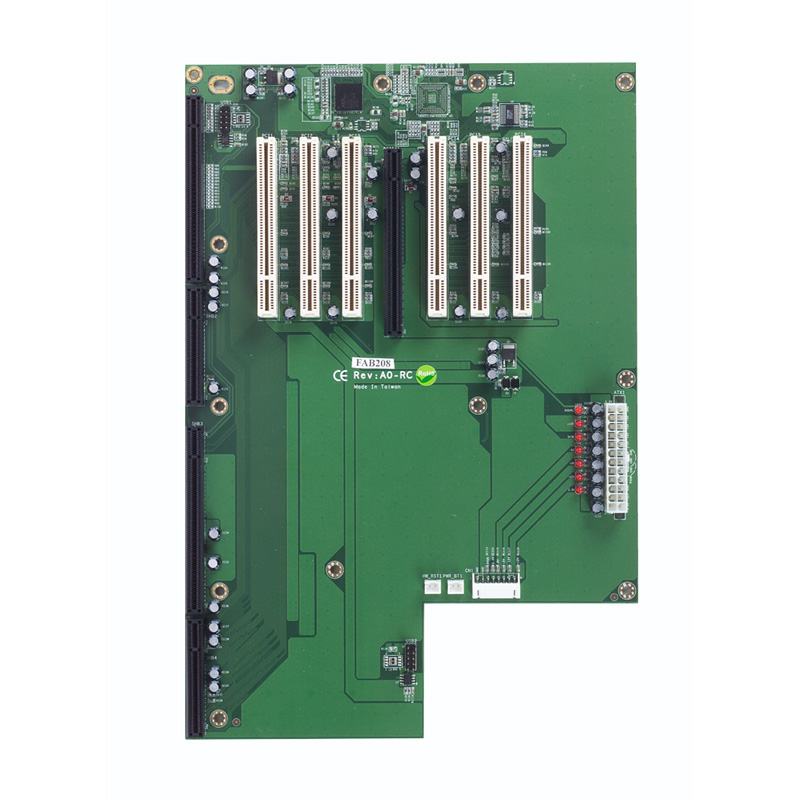

The FAB208 has a PICMG 1.3 CPU card slot, one PCI Express x16 slot, and a total of six 32bit/33MHz PCI slots. The onboard 24-pin ATX power connector and 8-pin connector for thermal detected board are featured. Furthermore, the backplane supports two high speed USB 2.0 ports. The FAB208 is optimized to support AXIOMTEK's PICMG 1.3 system host boards, the SHB100 and SHB110. We have two enclosures, the AX60551 and AX60552, to house the backplane.
