Features
- Designed for PICMG 1.3 SBC
- Compatible with AX61400, AX6145, and AX6156LE chassis
- Supports one PICMG 1.3 CPU card slot, four ISA slots, four PCIe x1 slots, one PCIe x16 slot, and four 32bit/33MHz PCI slots
Introduction

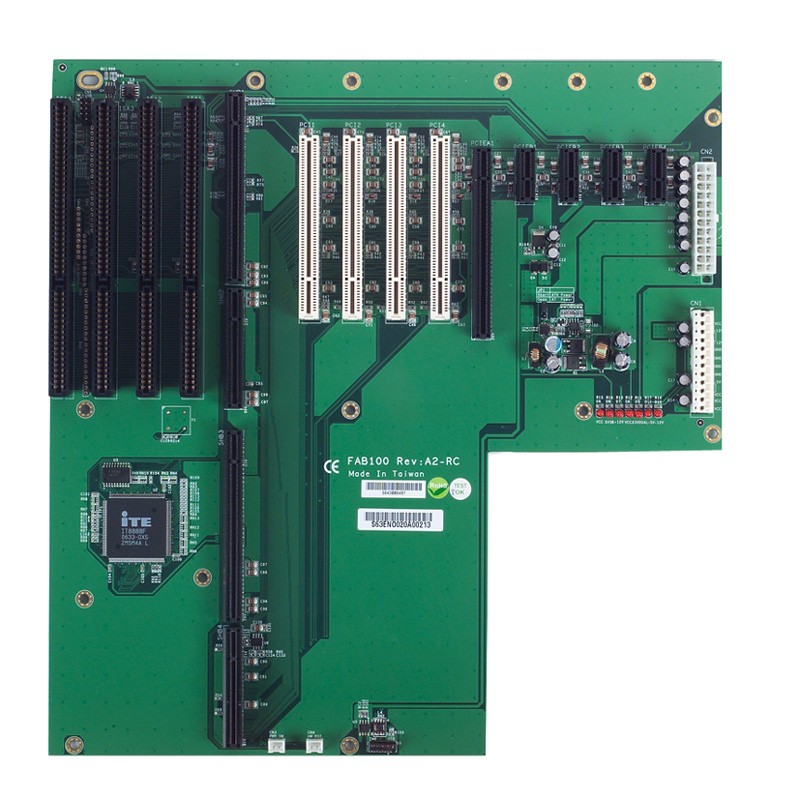

The FAB100 features one CPU card slot, four ISA slots, four PCI-E x1 slots, one PCI-E x16 slot, and four 32bit/33MHz PCI slots. This PICMG 1.3 backplane also supports a built-in 24-pin ATX power connector. Furthermore, the FAB100 delivers outstanding system performance through high-bandwidth interfaces such as Serial ATA and USB 2.0 high speed peripheral (optional function). It is designed for all of PICMG 1.3 single board computers, and is a perfect fit for AXIOMTEK's SHB100 & SHB110, which are built around the PICMG 1.3 form factor. We also have various 4U-high enclosures, AX6156E, AX6156LE, AX6156LLE, AX6156LLES, AX61400, AX61491 and AX6145, to house the FAB100 and any customer's industrial integrations flexibly.
