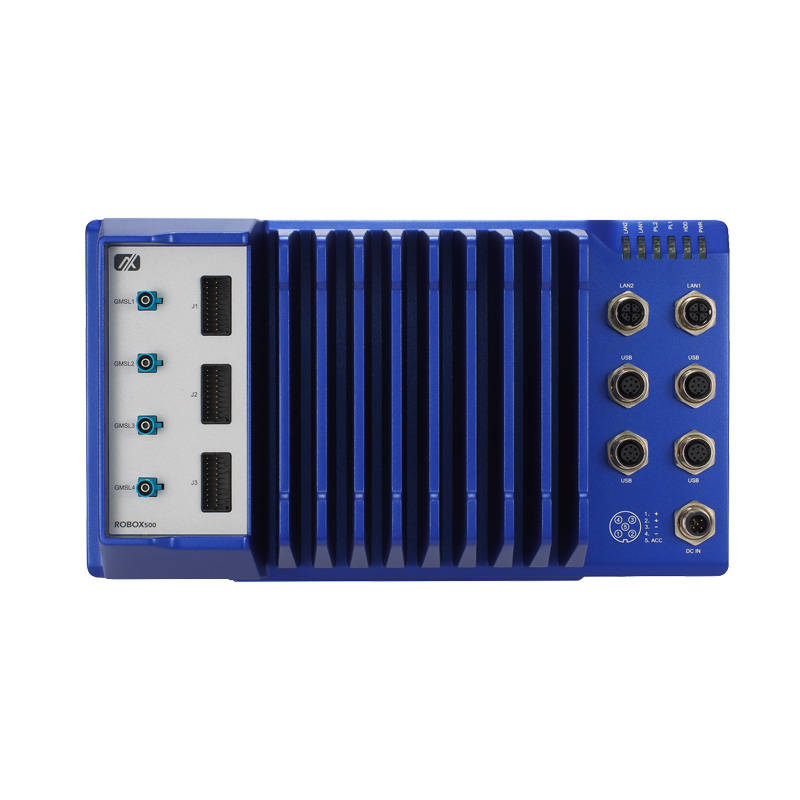

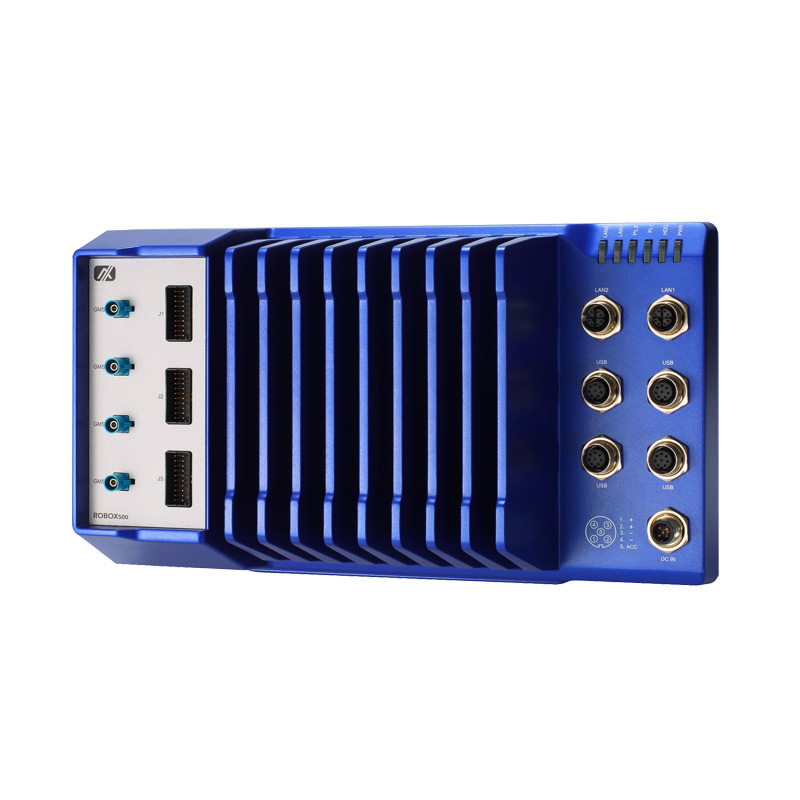

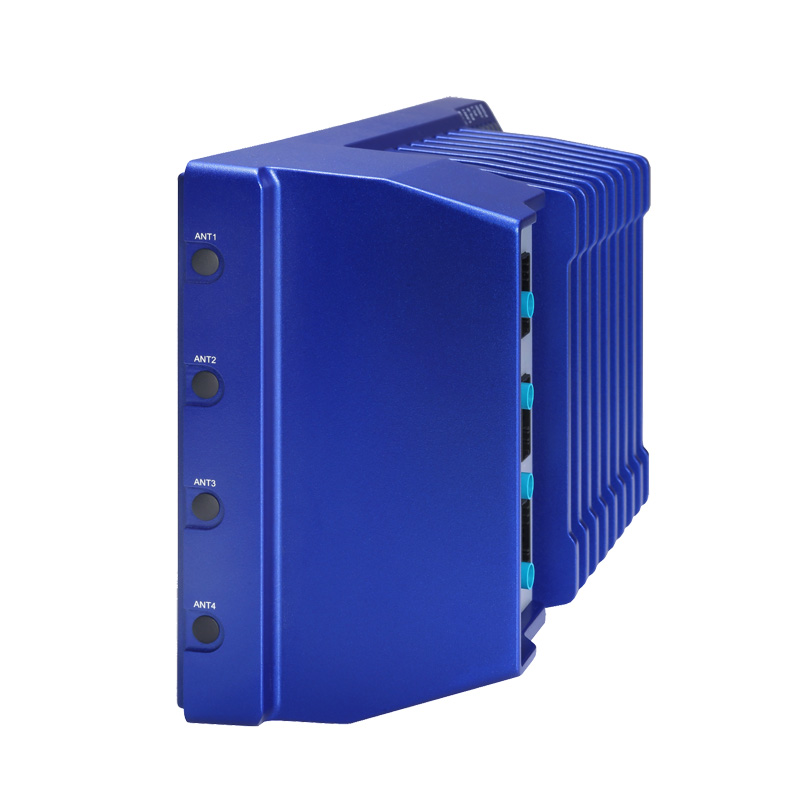

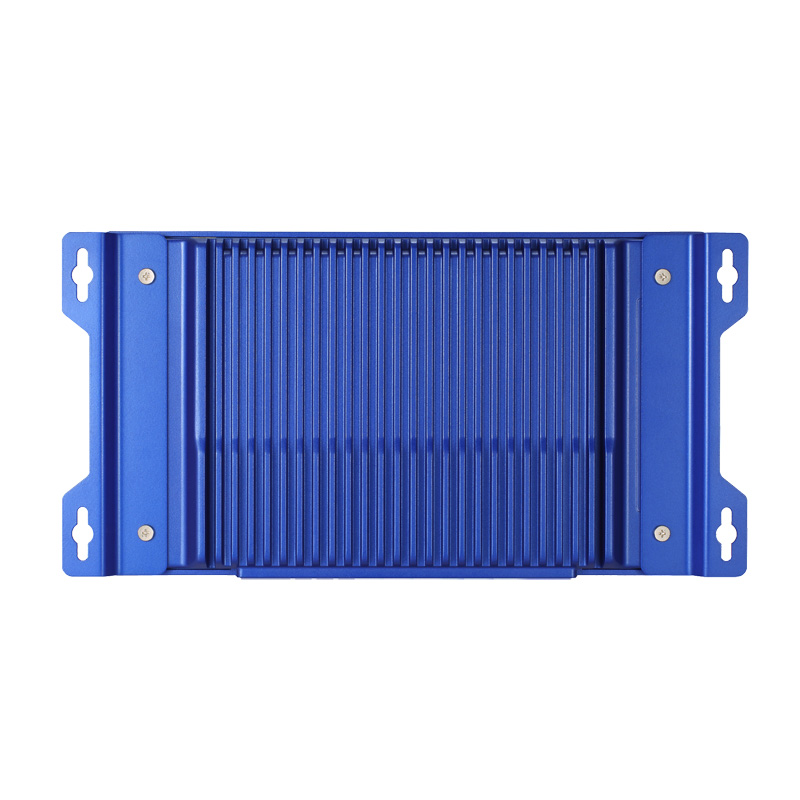

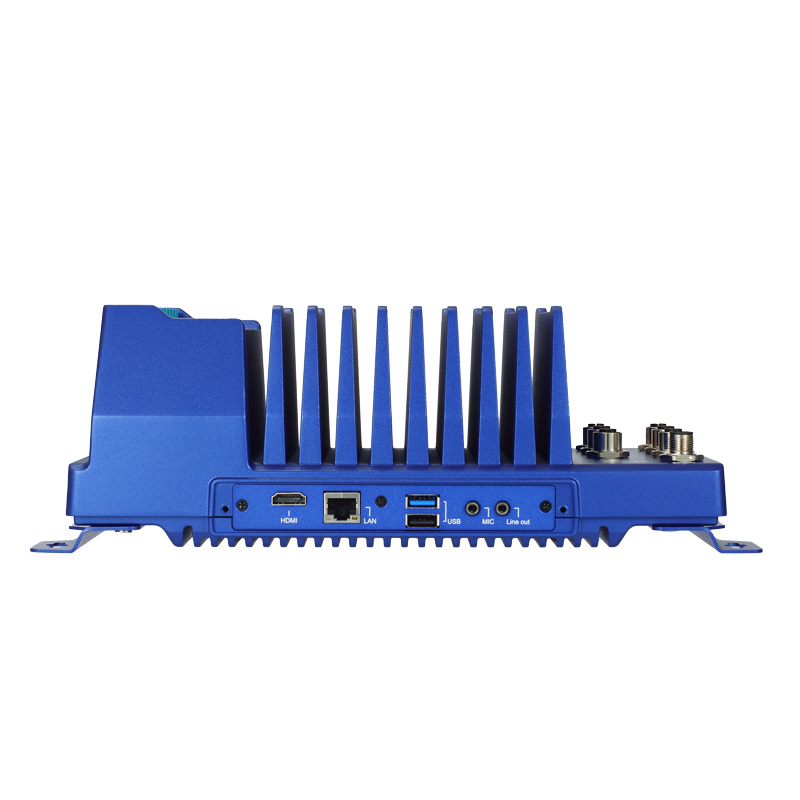

Features
- Certified for IEC 60721-3-5 5M3
- 13th/12th gen Intel® Core™ i7 processor (Alder Lake-P), 28W/15W TDP
- 4-channel GMSL camera
- 4 RS-232/422/485 and 2 CAN 2.0A/B
- Supports Wi-Fi/Bluetooth/5G/LTE
- Wide operating temperature from -40°C to +70°C
- Wide voltage input from 9 to 60 VDC
- Supports Linux Ubuntu 22.04 LTS
- Supports Axiomtek AMR Builder Package
Introduction
The CAPA315 is powered by the Intel® Pentium® processor N4200 or Celeron® processor N3350 (codename: Apollo Lake). It comes with various I/O connectors and flexible expansion features within its 146 x 104 mm dimensions. The CAPA315 also has an extended operating temperature range of -20°C to 70°C to withstand the rigors of day-to-day operation. The 3.5-inch CAPA315 has one 204-pin DDR3L-1867 SO-DIMM for up to 8GB of system memory. Furthermore, it comes with one RS-232/422/485, three RS-232, two USB 2.0, four USB 3.0, 8-channel digital I/O, HD Codec audio and dual LANs. For storage requirements, it has one SATA-600 and one mSATA. Moreover, the low-power embedded platform runs on +12VDC power, supporting auto power-on. For connectivity, this embedded board has a PCI Express Mini Card slot for 3G/4G, GPS, Wi-Fi and Bluetooth connections. To ensure reliable operation across platforms, the 3.5-in embedded board also supports watchdog timer, hardware monitoring functions and Trusted Platform Module 1.2 (TPM 1.2).
