| Standards |
- IEEE 802.3u 100BASE-TX/FX
- IEEE 802.3az Energy Efficient Ethernet
- IEEE 802.1p Quality of Service (QoS)
|
| Forward/ Filtering Rate |
- 14,880pps for 10Mbps
- 148,810pps for 100Mbps
|
| Packet Buffer Memory |
|
| Address Table Size |
|
| Processing Type |
- Store-and Forward
- Auto-Negotiation
- Half-duplex back-pressure and IEEE 802.3x full-duplex flow control
- Auto MDI/MDIX
|
| Interface of Ethernet |
|

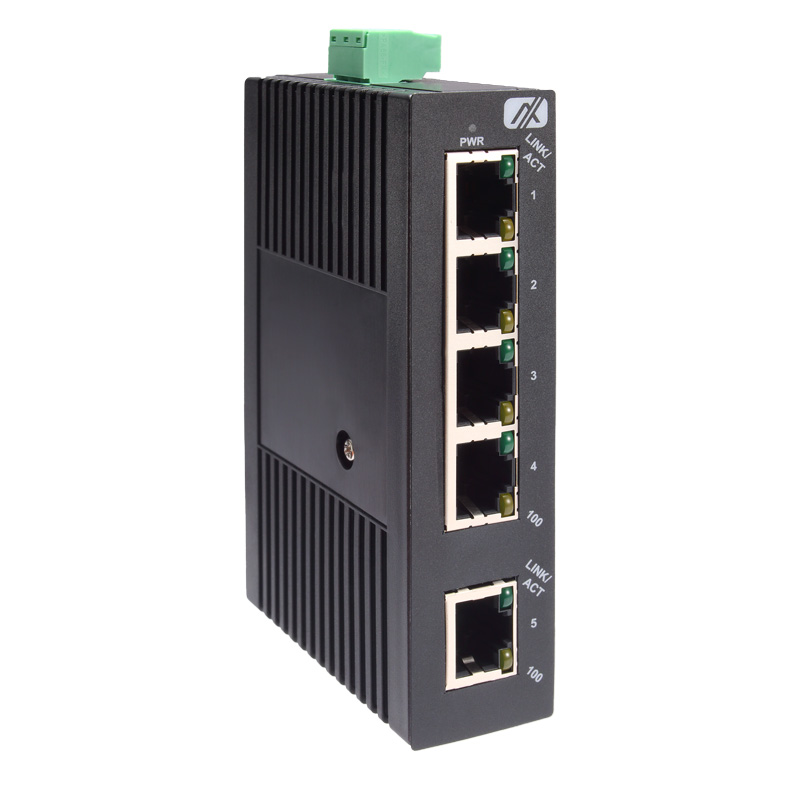

| LED Indicators |
- Per Unit: Power (Green)
- Per Port: Link/Activity (Green), Speed (Yellow)
|
| Power Input |
- 12-48VDC (Terminal Block) w/Reverse Polarity Protection
|
| Operating Temperature |
- -10°C to 60°C (14°F to 140°F)
|
| Dimensions (W x D x H) |
|
| Weight |
|

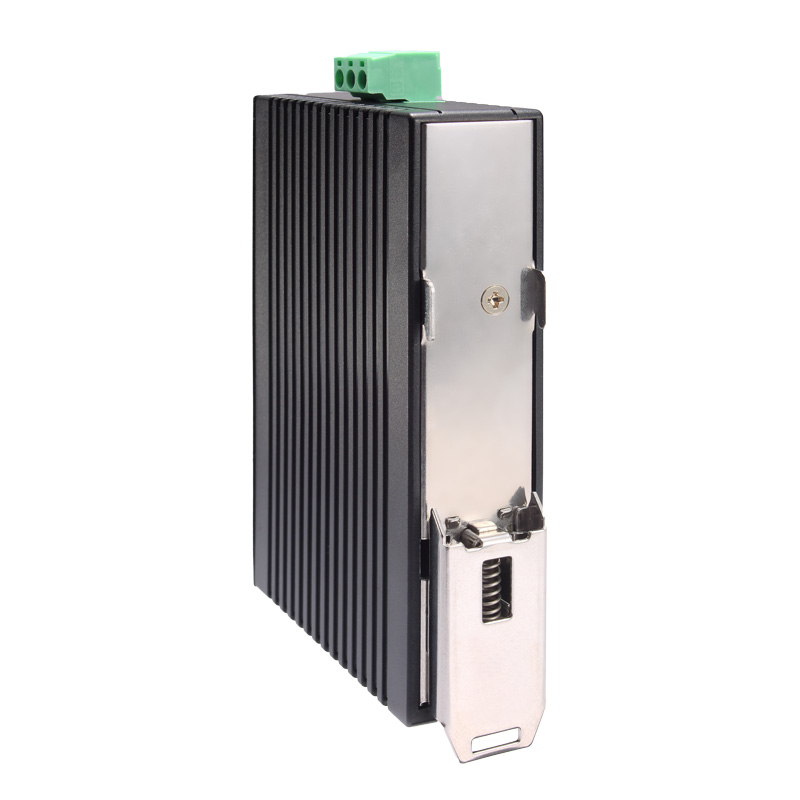

| Installation |
- DIN-Rail (Top hat type 35mm)
|
| EMI |
- FCC Part 15B Class A
- EN 61000-6-4
- EN 61000-3-2
- EN 61000-3-3
|
| EMS |
- EN 61000-4-2 (ESD Standards)
- EN 61000-4-3 (Radiated RFI Standards)
- EN 61000-4-4 (Burst Standards)
- EN 61000-4-5 (Surge Standards) Signal ports: ±4kV line-to-ground
- EN 61000-4-6 (Induced RFI Standards)
- EN 61000-4-8 (Magnetic Field Standards)
|
