Features
- 13th/12th Gen Intel® Core™ i9/i7/i5/i3 and Celeron® processors with Intel® R680E chipset (Alder Lake S)
- Dual DDR5 SO-DIMM for up to 64GB of memory

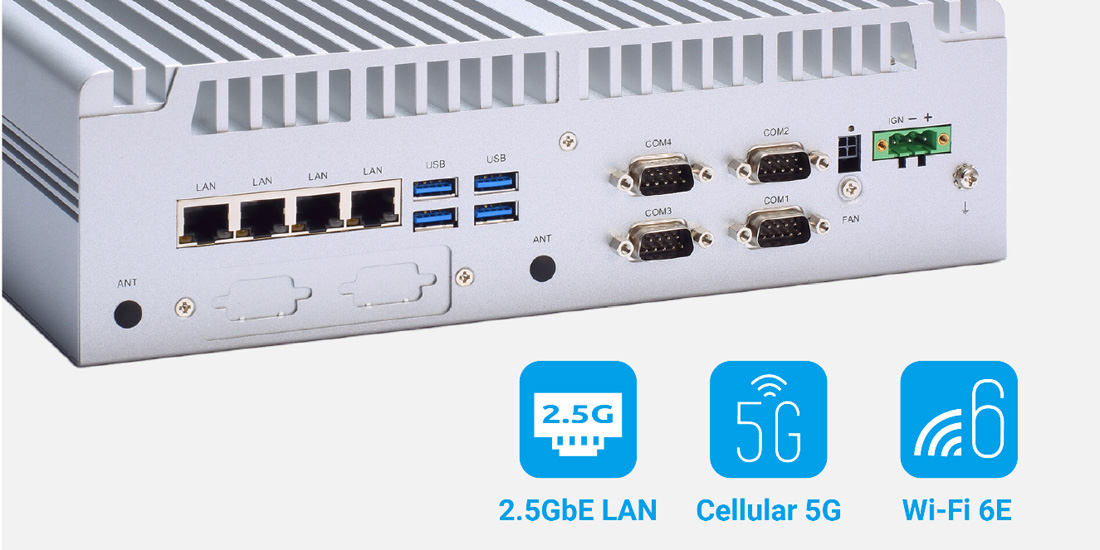

- 4 LAN with optional PoE supported
- Dual 2.5" SATA HDD drive bays with RAID 0 & 1

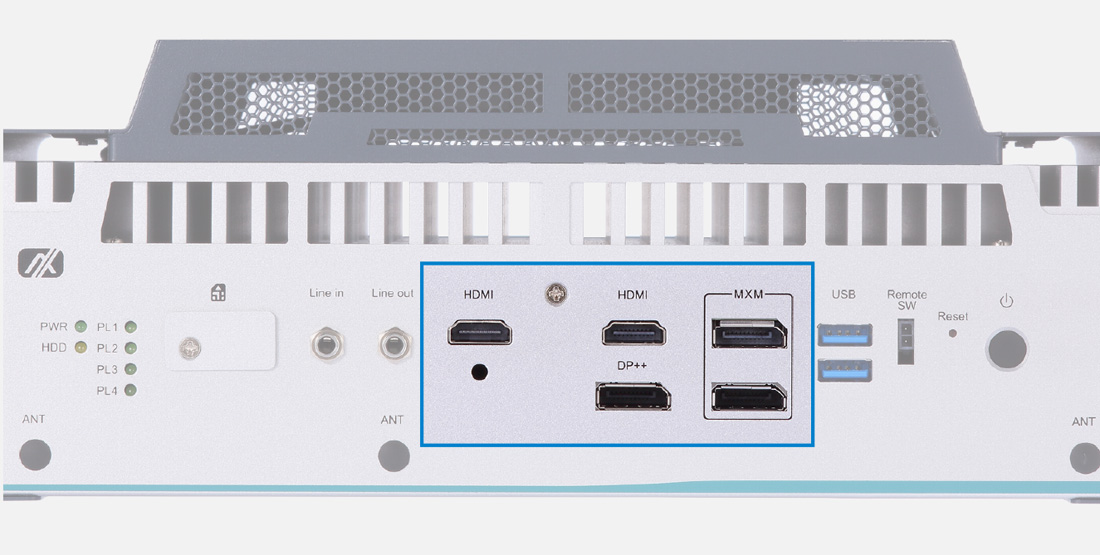

- Supports MXM 3.1 Type A, up to 5 display outputs
- -40 °C to +65 °C wide operating temperatures
- Wide range power input from 9 to 36 VDC
- Flexible I/O window supported via mPCIe modules
Introduction
The IPC962-511-FL is powered by the 7th/6th generation Intel® Core™ and Celeron® processors (codename: Kaby Lake/Skylake) up to 65 W with the Intel® H110 chipset, featuring high performance capability. The ultra-compact industrial computer provides flexible expansion options with one I/O module slot and two PCI/PCIe expansion slots. It has a wide operating temperature range of -10°C to +60°C, and is equipped with a wide range 19V - 30V DC power input for mission-critical environments. The ruggedized industrial PC has a creative modular design with rugged mechanisms and optimized expandability. To meet different customization requirements, it has an optional I/O module slot and three different types of I/O modules. The choices, include a 4-port isolated RS-232/422/485 module; isolated 8-in/8-out DIO module; 2-port isolated RS-232/422/485 and 4-in/4-out DIO module, can provide system integrators with a less cabling solution for a lower total cost of ownership. Additionally, the compact industrial PC provides two flexible PCI/PCIe expansion slots with three different combinations of AX96205, AX96206, AX96207: one PCIe x16 and one PCIe x4; one PCIe x16 and one PCI; 2 PCI.
