| AI Accelerator |
- NVIDIA® Jetson Orin™ NX (up to 100 TOPS)
|
| CPU |
- 16GB: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
- 8GB: 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3
|
| GPU |
- 1024-core NVIDIA Ampere GPU with 32 Tensor Cores
|
| Chipset |
|
| System Memory |
- 16GB: 16GB 128-bit LPDDR5 onboard
- 8GB: 8GB 128-bit LPDDR5 onboard
|

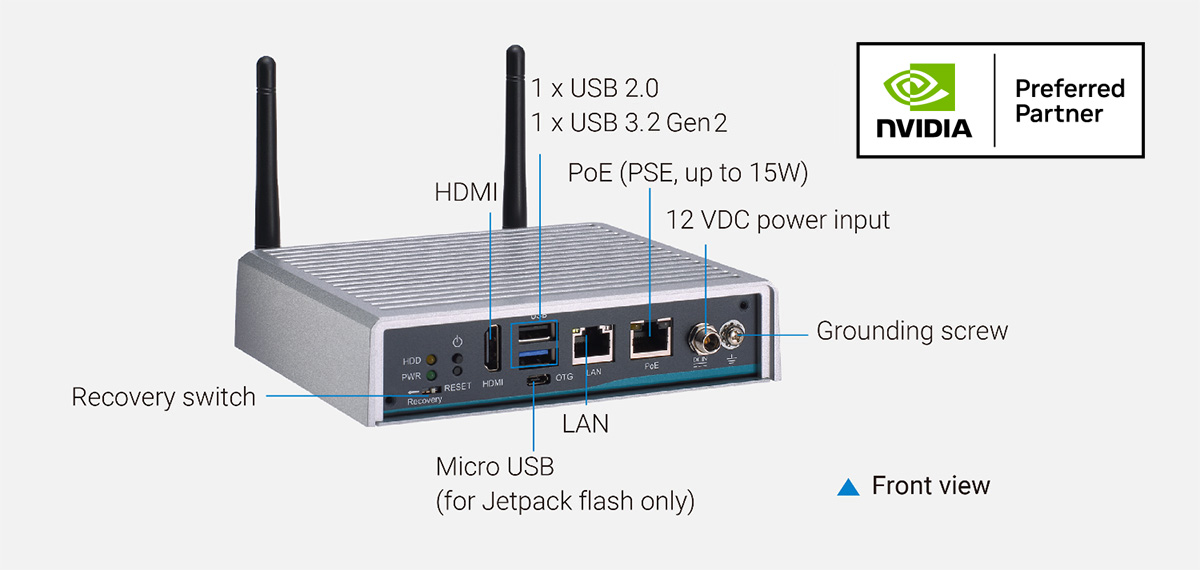

| COM |
|
| USB |
- 1 x USB 3.2 Gen2
- 1 x USB 2.0
- 1 x Micro USB for image flash
|
| Ethernet/PoE |
- 1 x 10/100/1000 Mbps Ethernet (via Jetson Orin™ NX)

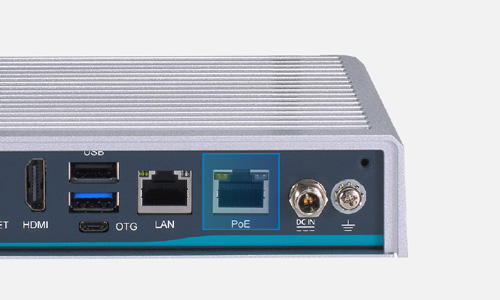

- 1 x 10/100/1000 Mbps PoE (Intel® I210-IT; max. up to 15W)
|
| GMSL |
|
| Display |
- 1 x HDMI 2.1 with 4K2K supported
|
| Digital I/O |
|
| Audio |
|
| Storage |
- 1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
|
| Expansion |
- 1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
- 1 x SIM slot
|
| Others |
- 1 x Recovery switch
- 1 x Reset button
- 1 x Power button
- 2 x SMA-type antenna connector
|
| Power Supply |
- 1 x 12 VDC screw-type power input connector
|
| Watchdog Timer |
|
| Construction |

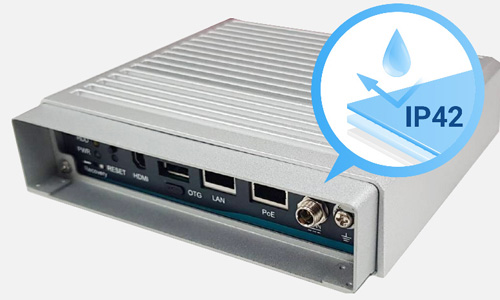

- Aluminum extrusion and heavy-duty steel, IP40 (IP42 by optional cover kit)
|
| Operating Temperature |
- -25°C to +60°C (-13°F to +140°F) (power mode: 25W)
|
| Relative Humidity |
- 10% to 95% relative humidity, non-condensing
|
| Shock |
- IEC 60068-2-27 (with SSD: 50G, half-sine, 11 ms duration)
|
| Vibration |
- IEC 60068-2-64 (with SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis)
|
| Dimensions (W x D x H) |
- 148.6 x 129.8 x 34.6 mm (5.85" x 5.11" x 1.36")
|
| Weight (net/gross) |
- 0.9 kg (1.93 lb)/1.8 kg (3.97 lb)
|
| Certifications |
- CE, FCC Class A, and UKCA
|
| EOS Support |
- Linux Ubuntu 20.04 or later
|
| Mounting |
- Wall mount kit
- DIN-rail kit
- VESA mount kit
|
