- AMD Kria™ K26 SOM
- Supports GbE LAN for cameras
- Wide operating temperature from -30°C to +75°C
- Wide voltage input from 12 to 24 VDC
- Supports PetaLinux
- Ideal for edge AI smart city or industrial applications
Simultaneous Execution of Multi-Algorithms
The RSC201 supports the simultaneous execution of multiple algorithms through the built-in multi-node function delivering superior AI computing performance with low latency over other mainstream models in the market.
Smooth and High Computing Performance
The RSC201 provides faster vision AI computing with low latency by K26 built-in multi-node function. Meanwhile, under the FPGA base, it is native ROS 2 support for higher productivity in automated robotics, such as AGV/AMR.
Enable Next-Gen AI at the Edge

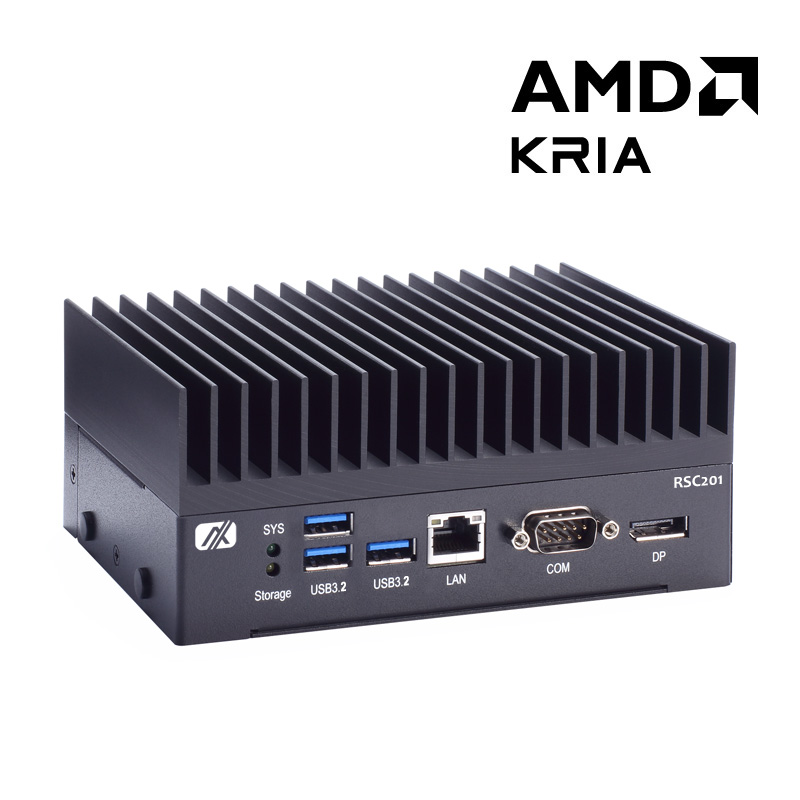

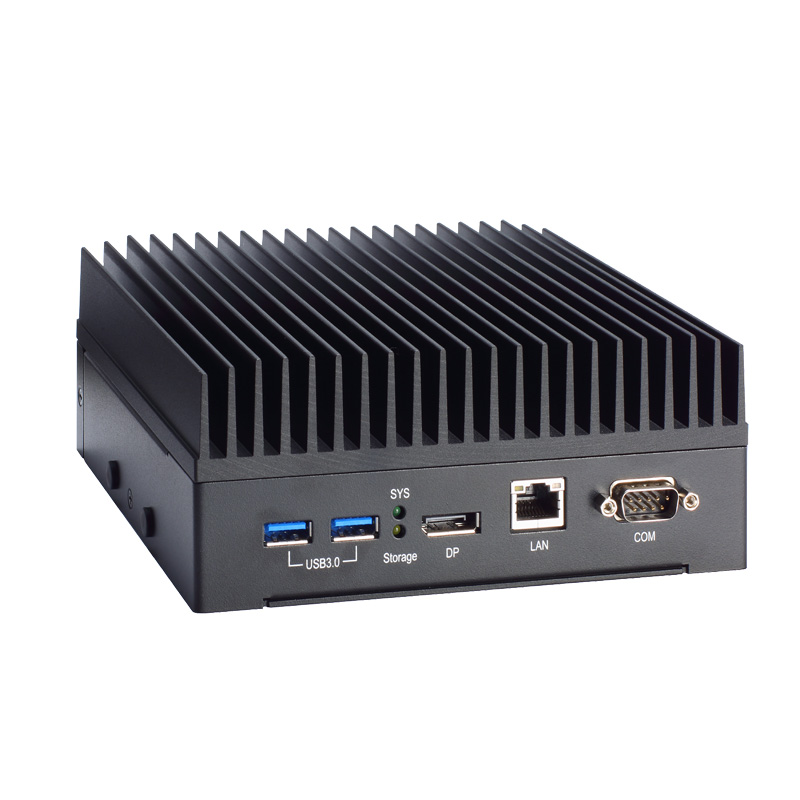

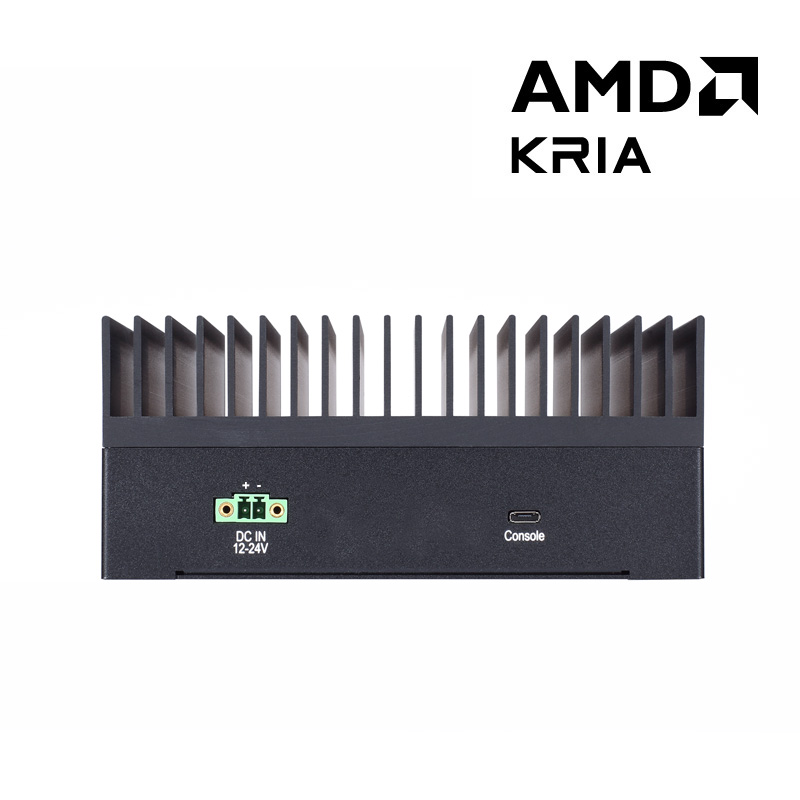

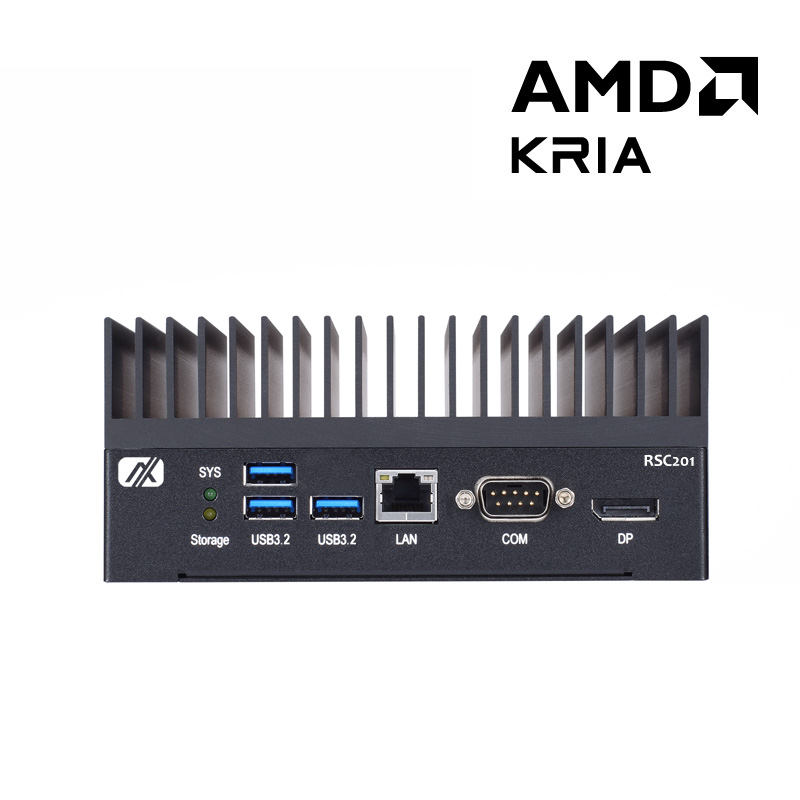

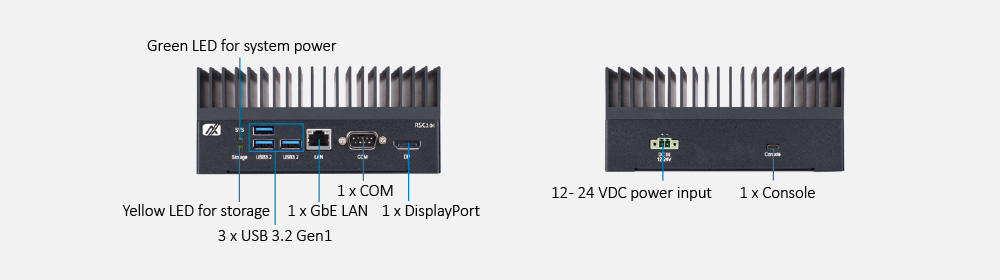

The RSC201 is powered by the AMD Kria™ K26 SoM. Aligning with superior performance, its compact size and wide operating temperature are designed to easily fit in various environments. Turning to the system I/O, it has one 10/100/1000 Mbps Ethernet LAN port, one DisplayPort 1.2, two USB 3.2 ports, one COM port, one PMOD for peripheral modules connecting, and 12-24 VDC wide power input. It also supports the Linux operating system. The RSC201 is ideal for traffic management, automated warehouse logistics, smart fence, AGV/AMR, and so on.

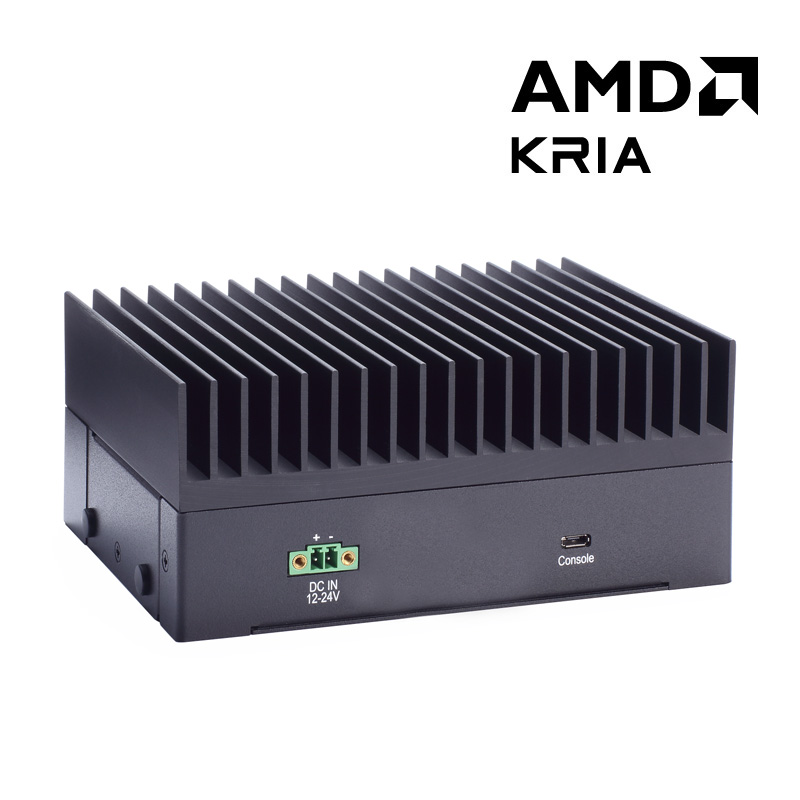

Rugged and Compact Design
As a rugged design, the fanless RSC201 can withstand a wide operating temperature range of -30°C to +75°C to ensure constant operation in harsh environments and it adopts an IP40-rated extruded aluminum and heavy-duty steel housing against dust and dirt. Meanwhile, the RSC201 has a friendly compact size with a light weight of only 1.5 kg making it easy to implement in any space-constrained environment.
