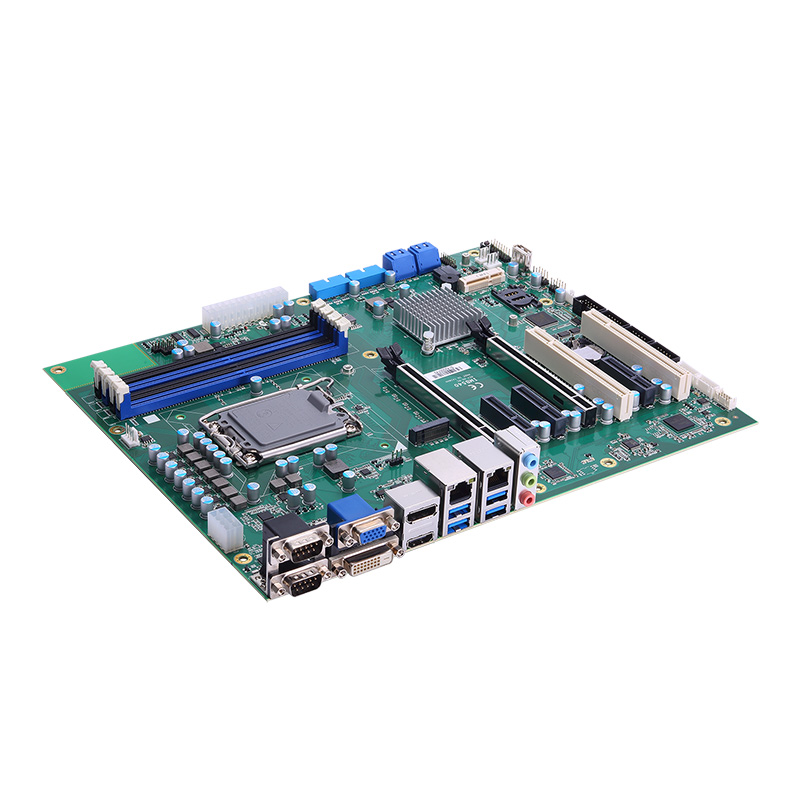

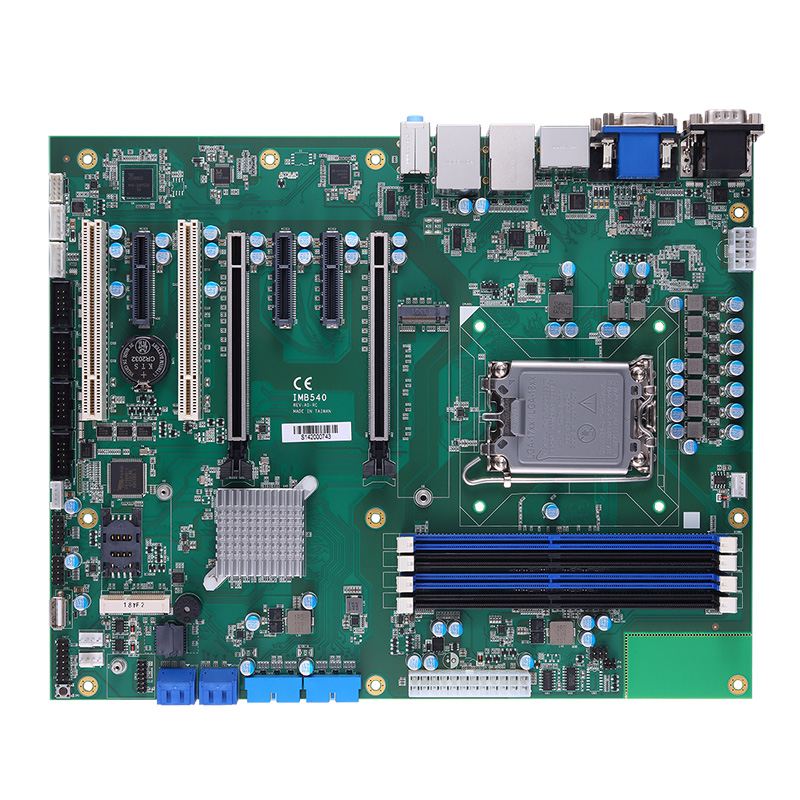

| CPU |
- LGA1700 socket BTL-S/14th/13th/12th Gen Intel® Core™ processor, up to 125W
|
| Chipset |
|
| System Memory |
- 4 x 288-pin DDR4-3200 ECC/non-ECC un-buffered Long-DIMM, up to 128GB (ECC memory available only for Intel® R680E)
|
| BIOS |
|

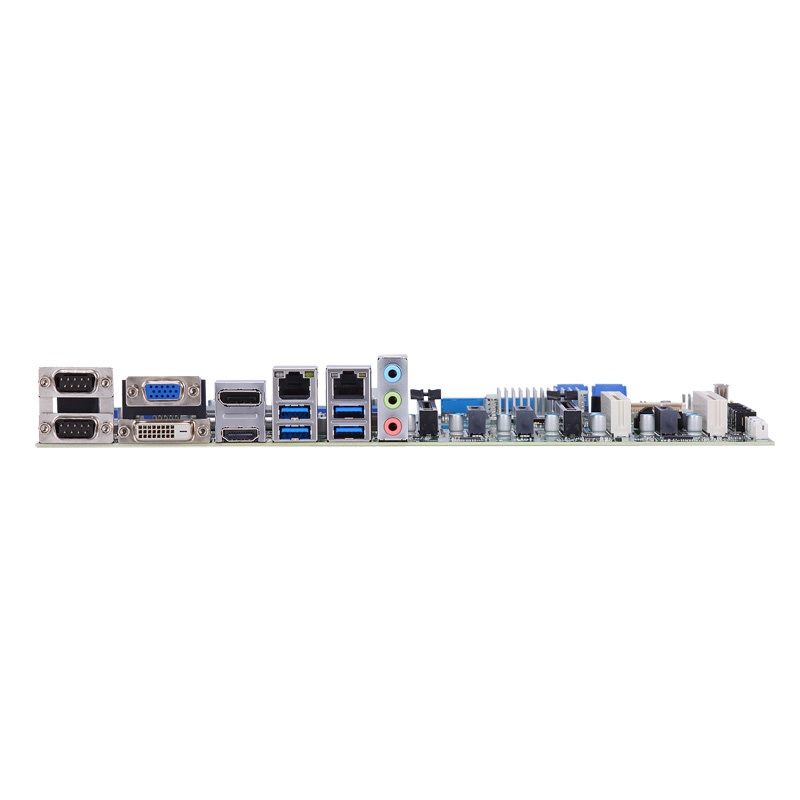

| COM |
- 4 x RS-232 (box header)
- 2 x RS-232/422/485 (rear I/O)
|
| USB |
- 4 x USB 3.2 Gen 2 x1 (10G) (rear I/O)
- 2 x Dual USB 3.2 Gen 1 x1 (5G) (box header)
- 4 x USB 2.0 (pin header)
- 1 x USB 2.0 (180D Type-A)
|
| Ethernet |
- 1 x 2.5GbE Ethernet (Intel® I226-LM; Intel® AMT with Intel vPro®)
- 1 x GbE Ethernet (Intel® I210-AT)
|
| Display |
- 1 x VGA, up to 1920 x 1200 @ 60Hz
- 1 x HDMI 1.4b, up to 4096 x 2160 @ 24Hz
- 1 x DisplayPort++ (DP 1.2), up to 4096 x 2304 @ 60Hz
- 1 x DVI-D, up to 1920 × 1200 @ 60Hz
|
| Digital I/O |
|
| Audio |
- 1 x HD Codec audio as MIC-in/Line-in/Line-out
|
| Storage |
- 4 x SATA-600 with RAID 0/1/5/10
- M.2 key M 2280 in support of PCIe x4 via CPU
|
| Expansion |
- 2 x PCIe Gen 5 x16 slot (signal: PCIe x16 + PCIe x0 or PCIe x8 + PCIe x8)
- 3 x PCIe x4 slot open ended (1 x Gen 3 + 2 x Gen 4) (signal by PCH)
- 1 x PCIe Mini Card slot (signal: PCIe x1)
- 2 x 32-bit PCI slot, default clock is 33 MHz, PCI clock could be selected between 33 or 66 MHz by jumper (signal by PCH)
|
| Others |
- 1 x PS/2 keyboard (box header)
- 1 x PS/2 mouse (box header)
|
| Battery |
|
| TPM |
|
| Watchdog Timer |
- 255 levels, 1 to 255 sec.
|
| Hardware Monitoring |
|
| Operating Temperature |
- 0°C to +60°C (+32°F to +140°F)
|
| Relative Humidity |
- 10% to 95% relative humidity, non-condensing
|
| Dimensions |
|
| Board Thickness |
|
| Certifications |
|
