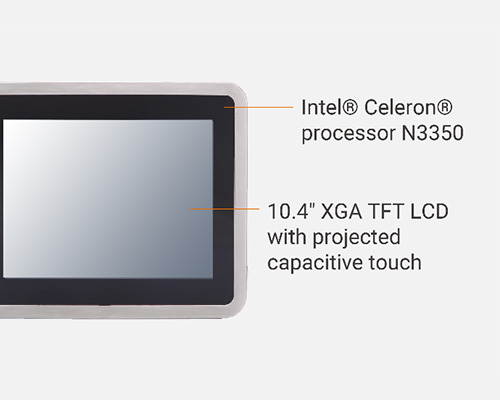

| LCD Panel |
- 10.4" XGA TFT LCD
- 450 nits
- 1024 x 768 pixels
|
| CPU |
- Intel® Celeron® processor N3350 2 cores (up to 2.4GHz)
|
| Chipset |
|
| System Memory |
- 1 x 204-pin DDR3L-1600 SO-DIMM, up to 8GB
|
| BIOS |
|

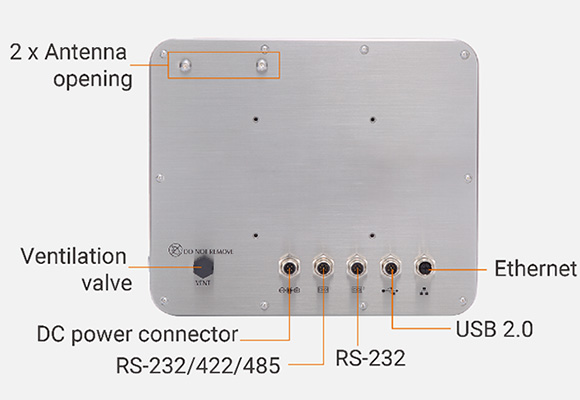

| COM |
- 1 x RS-232/422/485 (default RS-232, M12 A-coded)
- 1 x RS-232 (M12 A-coded)
|
| USB |
- 2 x USB 2.0 via M12 connector
|
| Ethernet |
- 1 x 10/100/1000 Mbps Ethernet (M12 X-coded)
|
| Display |
|
| Audio |
|
| Storage |
- 1 x mSATA
- 1 x 2.5" SATA HDD (9.5 mm height)
|
| Expansion |
- 1 x Full-size PCI Express Mini Card slot with mSATA
- 1 x Full-size PCI Express Mini Card slot with SIM
|
| Others |
- 1 x DC power connector (M12)
|
| Touchscreen |
- Projected capacitive multi-touch
|
| Enclosure |
|
| Power Supply |
- 12 VDC or 19 to 24 VDC in cable M12 female 5P
|
| Power Comsumption |
|
| Watchdog Timer |
|
| Operating Temperature |
- 0°C to +50°C (32°F to +122°F)
|
| Relative Humidity |
- 20% - 90% @40°C; non-condensing
|
| Vibration |
- 2G, 5 - 500Hz, random for SSD
|
| Dimensions (W x D x H) |
- 283.1 x 239.5 x 55.2 mm (11.15" x 9.43" x 2.17")
|
| Weight (net/gross) |
- 3.47 kg (7.65 lb)/5.18kg (11.42 lb)
|
| Certifications |
|
| EOS |
|
| Mounting |
|
