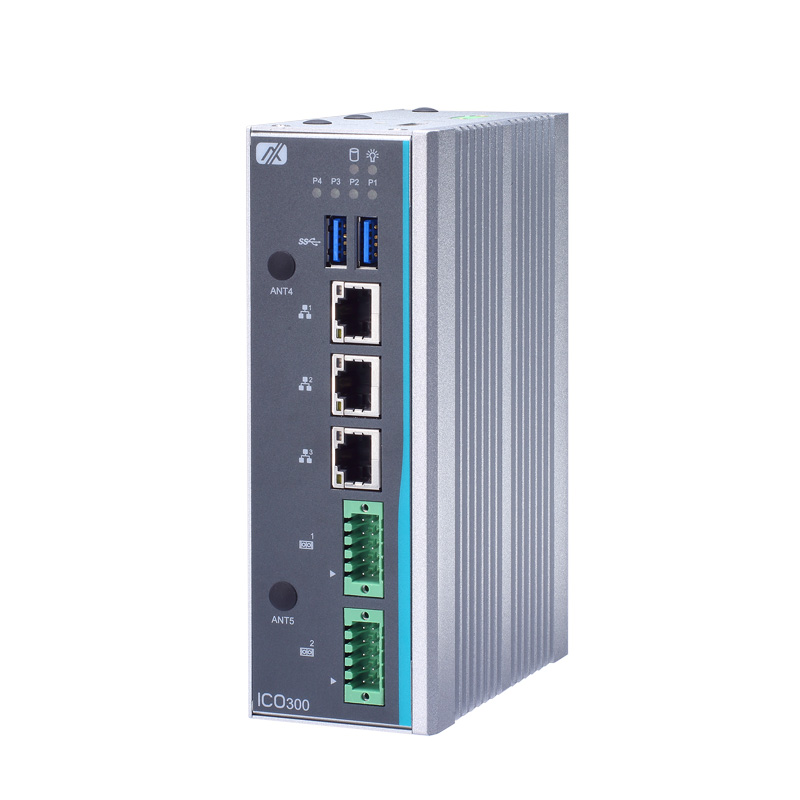

Features
- Cost-effective with fanless design
- Intel Atom® x5-E3930/x5-E3940 processor
- 6 isolated COM, isolated DIO (8-in/8-out), 3 GbE LAN
- Wide operating temperature range from -40°C to +85°C
- 9 to 36 VDC, typical 12-24V power input with OVP, UVP, OCP, RPP
- Supports TPM 2.0
- ATEX/Class I Division 2 (CID2) certified
- Supports cold boot at -40°C
Introduction
The AX92321 frame grabber card has four independent Renesas μPD720202 USB 3.0 host controllers with PCI Express x4 Gen2 interface to enable each USB 3.0 port to achieve up to 5Gbps bandwidth when operating four ports simultaneously. In addition, the USB 3.0 PCIe x4 Gen 2 frame grabber card features onboard regulated 5VDC power supply with user-configurable 900mA and 1500mA current limit via jumper settings to supply stable power for various external USB devices. It also supports software programmable per-port power on/off control for fault recovery operations.
