- Small form factor with fanless and noiseless design
- Intel® Celeron® processor N3350 (Apollo Lake)
- One DDR3L-1866 SO-DIMM for up to 8GB of memory
- Four 10/100/1000 Mbps Ethernet ports (Intel® i211)
- PCI Express Mini Card slot for optional
- Suitable for IoT security applications

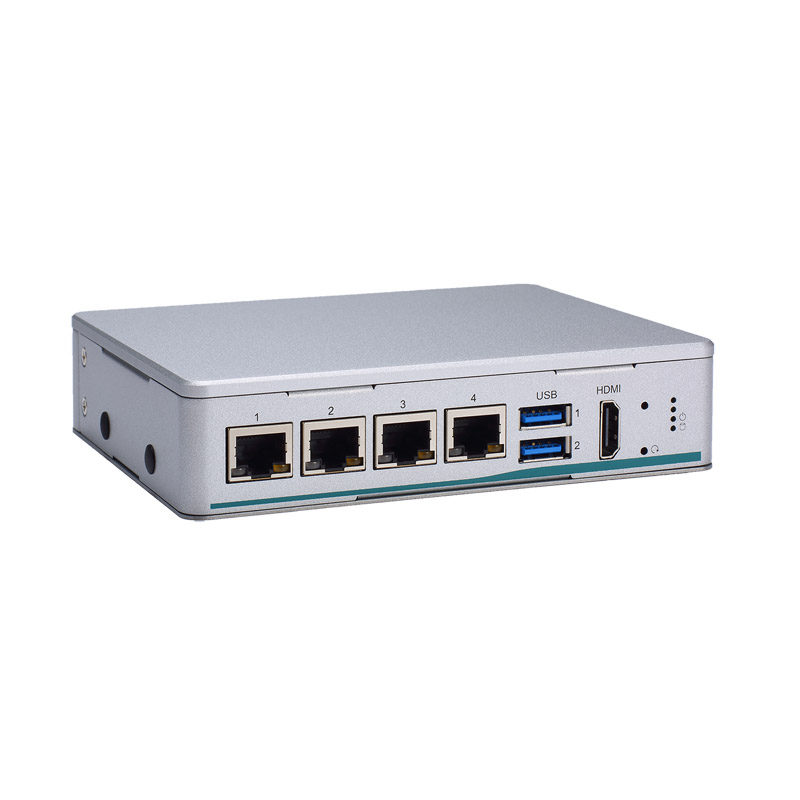

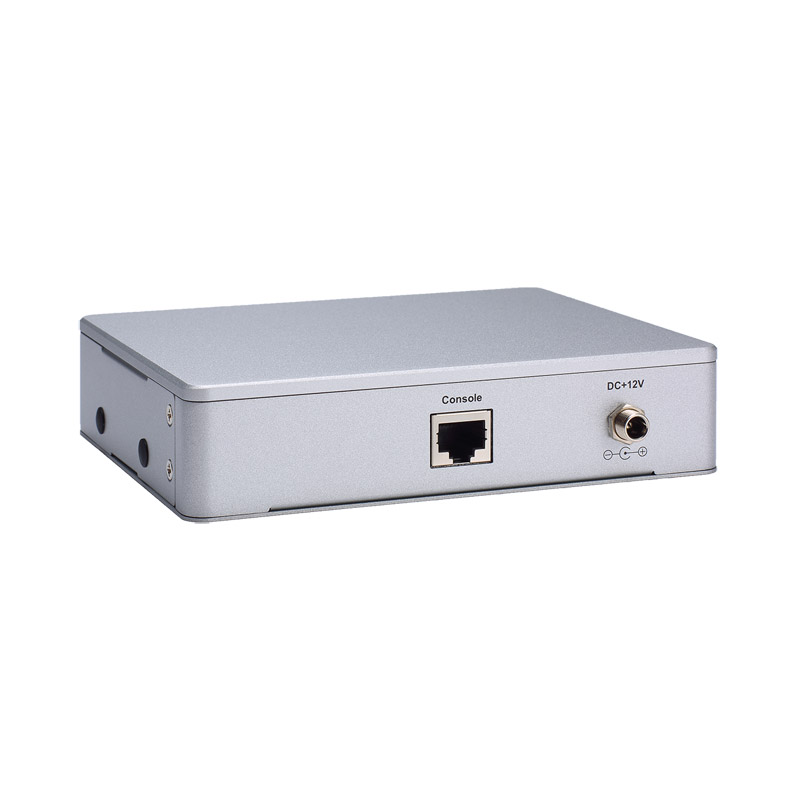

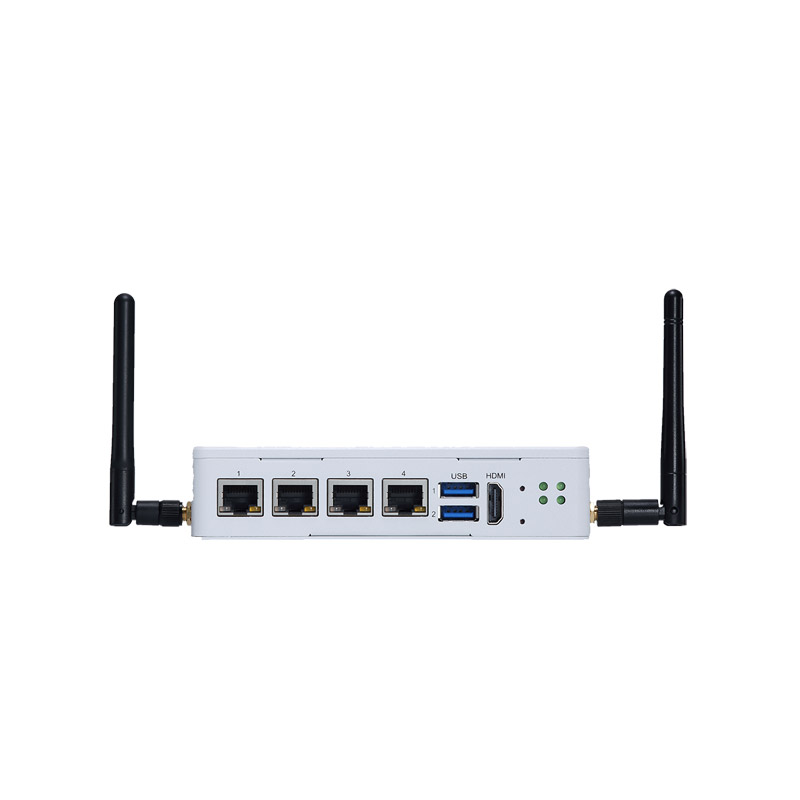

The NA346, a 4-LAN fanless network appliance platform designed in a small form factor, is powered by the Intel® Celeron® processor N3350 featuring the lowest Thermal Design Power (TDP) of 6W to meet the specific configurations of low-power requirement. The cutting-edge NA346 offers two mini-PCIe slots and a SIM socket supporting 3G/4G/LTE communications and connectors to 5G modules. Space limitation is one of the constraints in today’s industrial environment. Axiomtek’s ultra-small NA346 can be easily installed in narrow spaces. Featuring fanless operation, this network security appliance is perfect to be used in noise-sensitive environments. The NA346 supports one DDR3L-1600 SO-DIMM slot with up to 8GB of system memory and also offers one mSATA for storage. Under its small form factor, the network communication platform comes with four 10/100/1000 Mbps LAN ports using the Intel® i211 Ethernet controller. Other I/O interfaces include one serial console port, two USB 3.0 ports and one HDMI port. To ensure reliable operation, the NA346 supports a screw-type DC jack and a power button with LED, providing users with a more elegant and reliable product. It is compatible with Win 10 and Linux (Yocto project) operating systems.
