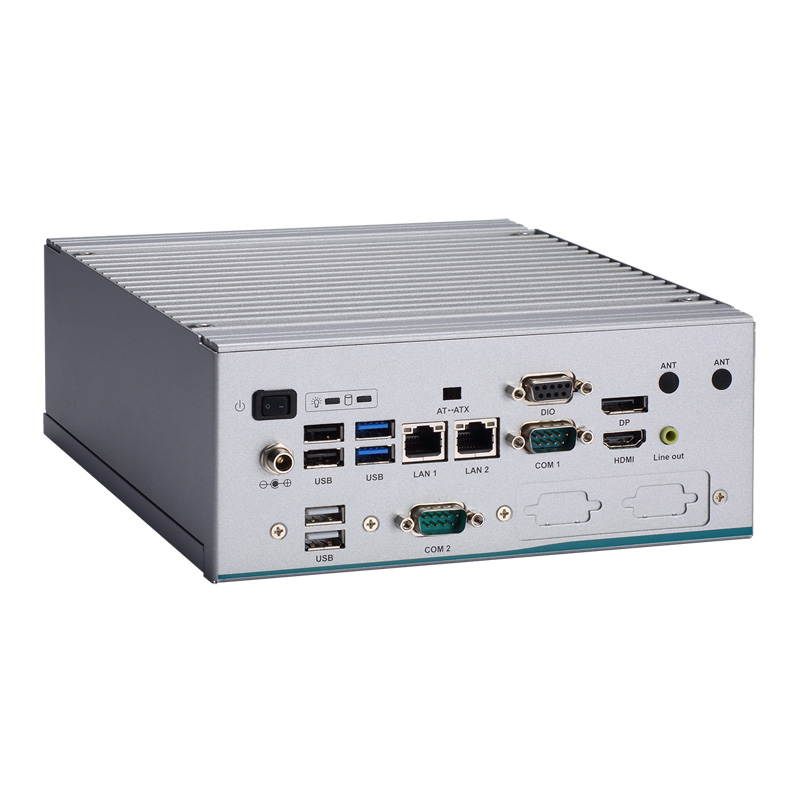

- LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3 & Celeron® processor (Coffee Lake)
- Supports 2 COM, 6 USB and 8-CH DI/DO
- Two 2.5" SATA drive bay
- M.2 Key E 2230 for Wi-Fi
- Front I/O connectivity design
- Flexible I/O window supported
The SDM500L is powered by the onboard 8th generation Intel® Core™ i7/i5/i3 processor with the Intel® Generation 9 HD Graphics chipset. The Intel® Smart Display Module-Large (Intel® SDM-L) measures just 175 x 100 mm and a maximum z-height of 1.6 mm, which is well-suited for ultra-slim displays. It can be easily connected to an SDM-compliant display via a high-speed PCIe x8 edge connector - which supports 4K resolution displays and video capture and has built-in USB 3.0, HDMI 2.0, DisplayPort 1.2, Serial TX/RX and I2C signals. With its excellent graphics performance and installation flexibility, the incredible signage module can satisfy diverse industry requirements and support a wide range of digital signage applications such as bedside terminals for hospital patients or factory automation solutions.
