- Intel® Celeron® processor J1900/J1800
- 1 DDR3L SO-DIMM for up to 8GB of memory
- 2 USB 2.0 and 1 USB 3.0
- 3 GbE LAN
- M.2 Key E
- M.2 Key B

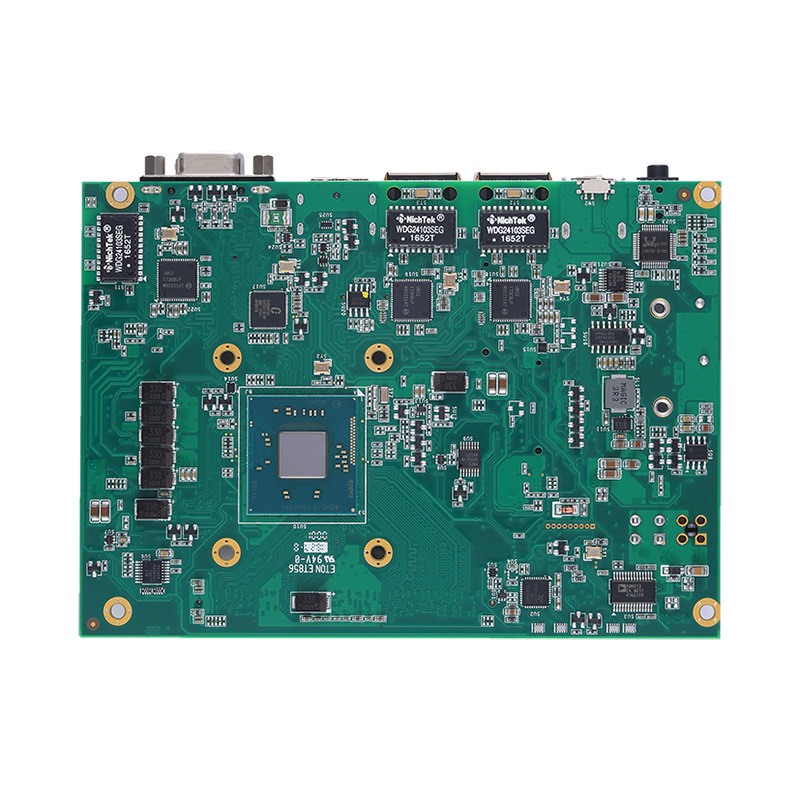

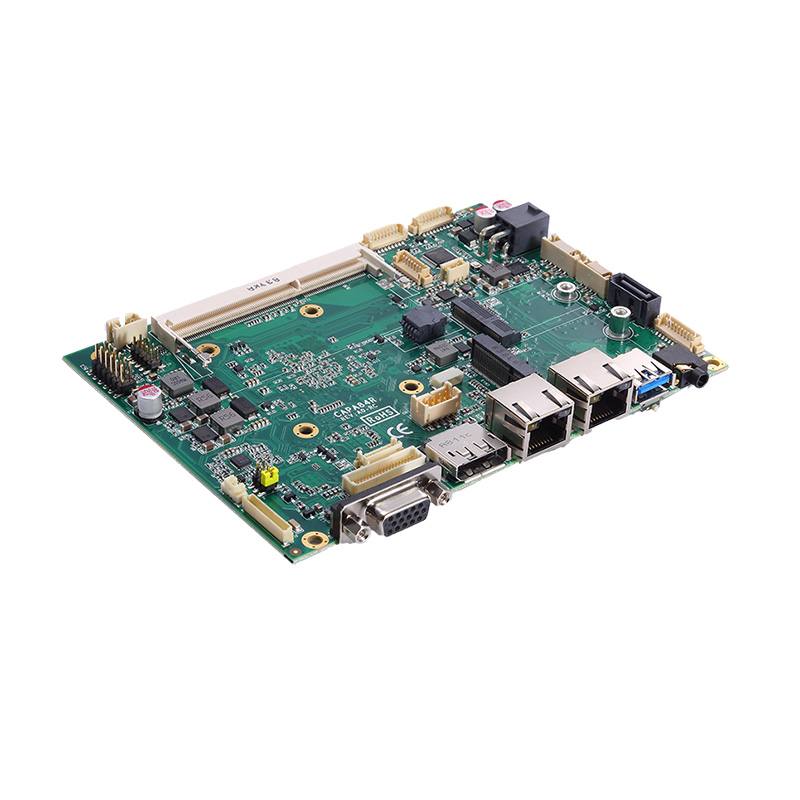

The CAPA84R is powered by the Intel® Celeron® processor J1900 quad-core or J1800 dual-core. The CPU is located at the rear side of the motherboard, which further aids the heat-extraction process and simplifies maintenance procedures. This fanless embedded board was designed for operational efficiency in rugged architecture with a wide operating temperature range of -20°C to +70°C. The CAPA84R supports one 204-pin DDR3L-1333 SO-DIMM socket with up to 8GB of system memory. There are also one SATA-300 port and one M.2 Key B supporting SATA for storage. The 3.5-inch embedded SBC with the Intel® integrated Gfx graphics is made to bring a true high definition visual experience with dual display configurations through the DisplayPort, 18/24-bit dual-channel LVDS and VGA.
