Features
- Fanless operation with low power consumption
- 2 DDR3L-1600 SO-DIMM for up to 8GB of memory
- 1 HDMI 1.4 and 1 DisplayPort 1.2
- 4 USB and 2 GbE LAN
- Supports 1 M.2 Key E 2230 for Wi-Fi/Bluetooth
- Supports 1 M.2 Key B 3042 for 4G LTE
- 1 M.2 Key M 2280 for storage
Introduction

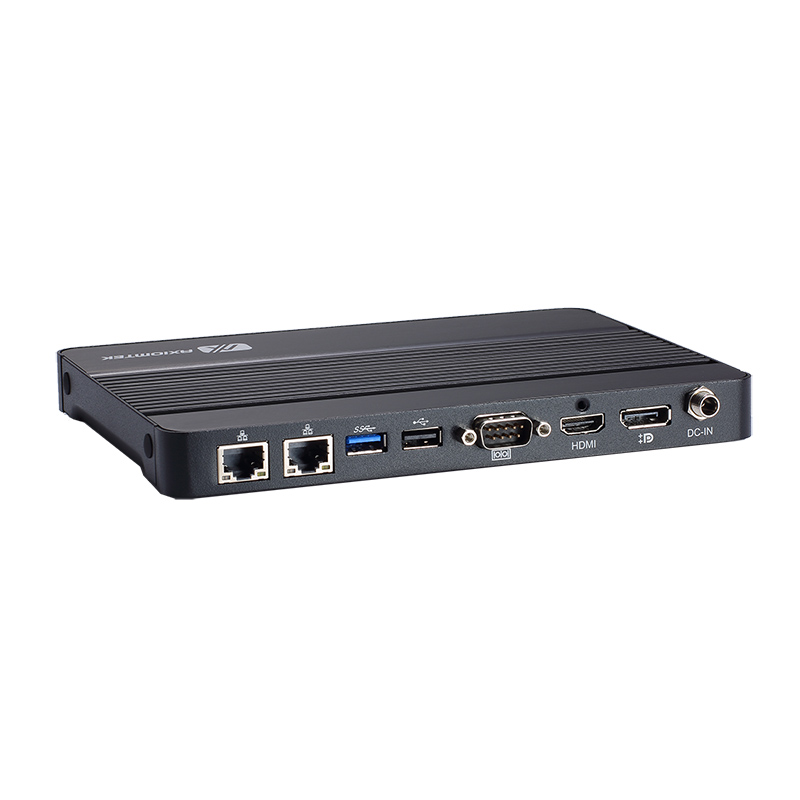

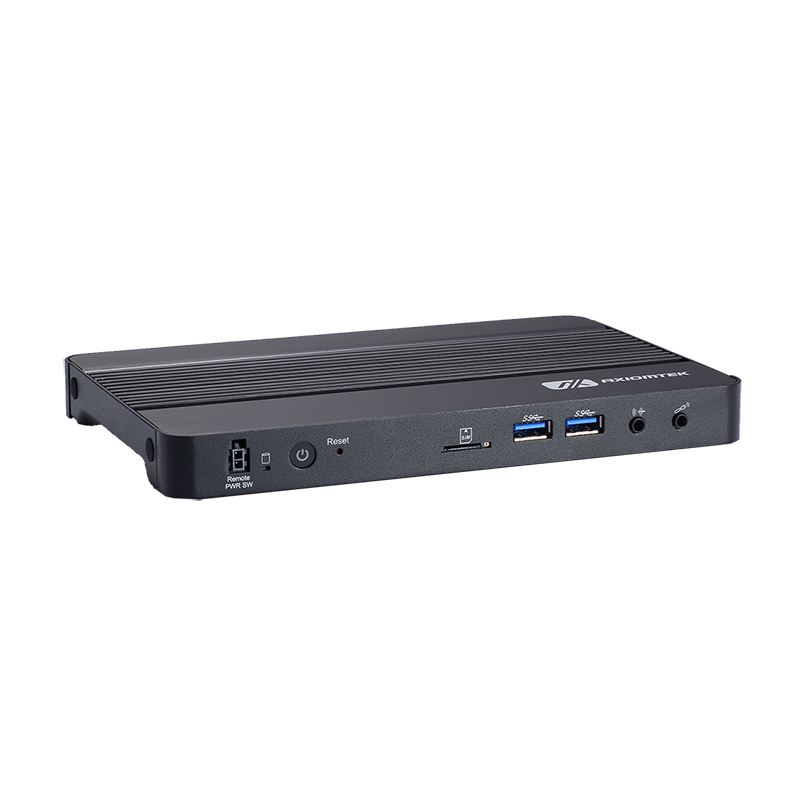

The DSP300-318 is powered by the onboard Intel® Atom® x5-E3950 processor, Intel® Pentium® processor N4200 and Celeron® processor N3350/J3455. It can deliver dazzling visual images and video advertising in 4K resolution. Measuring only 20 mm in thickness, the ultra-slim DSP300-318 is sleek enough to fit in a small area behind signage displays and its fanless and cable-free design enables easy installation without any environmental limitation. The super-slim DSP300-318 is designed to be fanless and cableless, which ensures solid reliability and easy maintenance. It supports HDMI and DisplayPort outputs with support for dual-view displays. The system also has one M.2 Key E 2230 for Wi-Fi and Bluetooth modules, one M.2 Key B 3042 for 4G LTE and one SIM card slots for 3.5G radio connectivity. Additionally, one M.2 Key M 2280 and one optional 64GB eMMC 5.0 are available for storage. The Intel® Apollo Lake-based DSP300-318 offers a cost-effective, compact yet powerful computing platform that allows plenty of digital signage solutions for advertising, brand promotion and digital menu board applications.
