- Intel® Pentium® processor N4200/Celeron® processor N3350
- 1 DDR3L SO-DIMM for up to 8GB of memory
- 2 USB 2.0 and 4 USB 3.0
- 1 PCI Express Mini Card slot
- ZIO connector

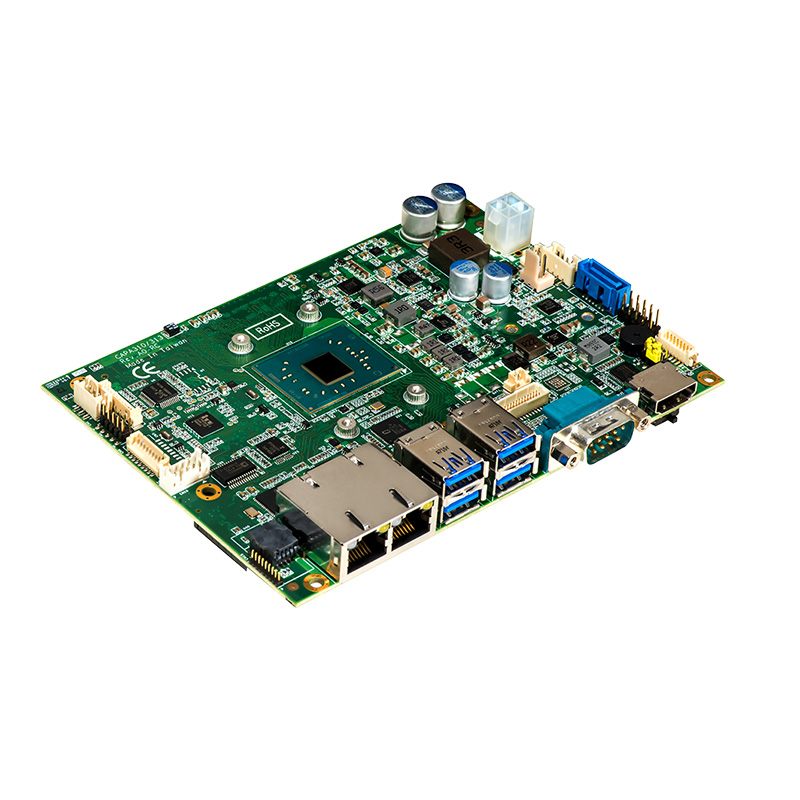

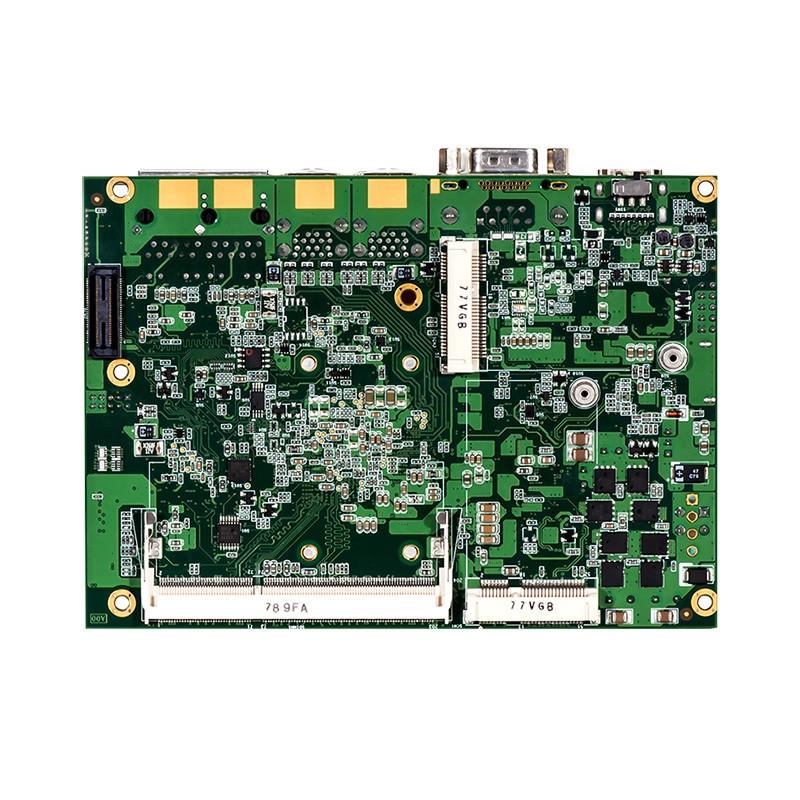

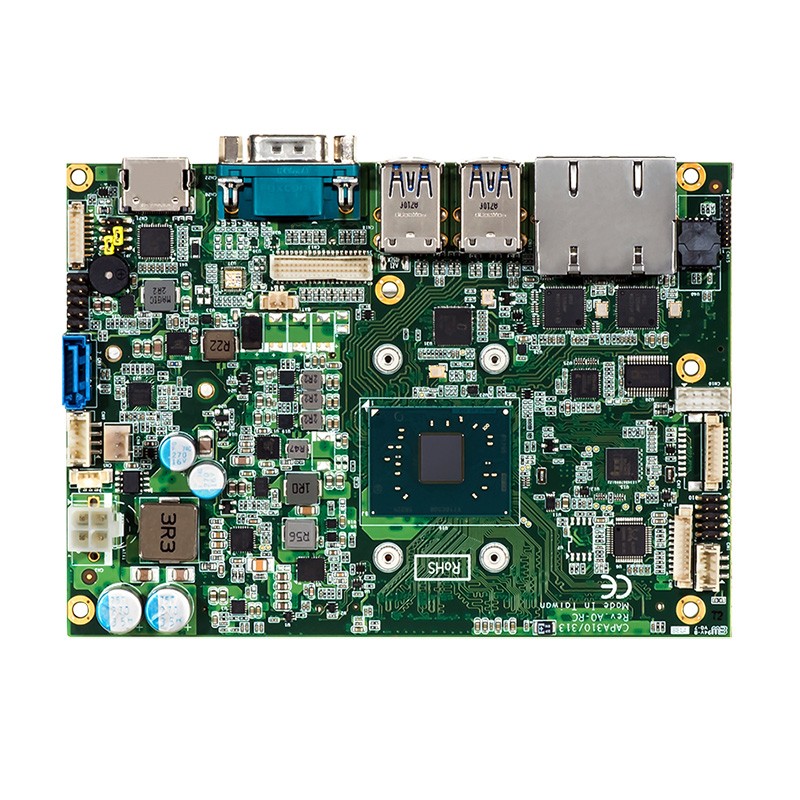

The CAPA313 is powered by the Intel® Pentium® processor N4200 or Intel® Celeron® processor N3350 (codename: Apollo Lake). This 3.5" embedded board was designed for operational stability in harsh environments with a wide operating temperature range from -20°C to +70°C. It offers a wide range DC input of 12V to 24 for various industrial environments. It also comes with rich I/O connectors, stunning graphical performance and an emphasis on expandability. In addition to one 204-pin DDR3L-1867 SO-DIMM socket supporting system memory up to 8GB, the CAPA313 has one PCI Expess Mini Card slot for 3G/4G, GPS, Wi-Fi and Bluetooth connection. The compact-size embedded board comes with one RS-232/422/485, one RS-232, two USB 2.0, four USB 3.0, eight-channel digital I/O, audio, LVDS, HDMI, VGA (optional) and dual Gigabit LANs with Intel® I210-AT Ethernet controller. It also features one SATA-600 socket and one mSATA interface for storage devices. To ensure reliable operation, the 3.5” embedded SBC supports watchdog timer and hardware monitoring features.
