Features
- Intel® Pentium® processor N4200 & Celeron® processor N3350/J3455
- 1 DDR3L SO-DIMM for up to 8GB of memory
- 2 USB 2.0 and 3 USB 3.0
- 1 PCI Express Mini Card slot with mSATA supported
Introduction

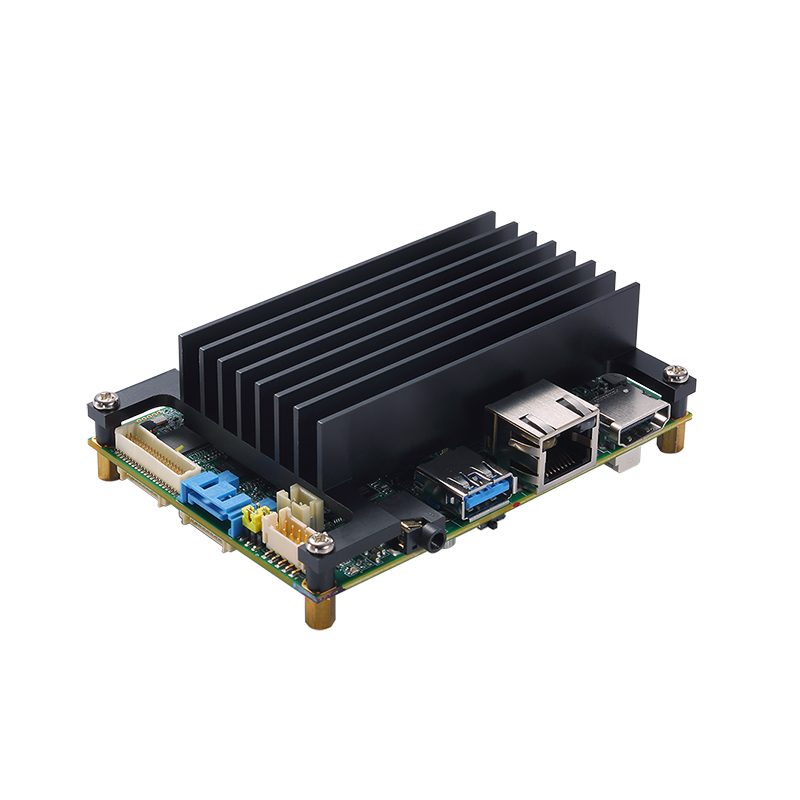

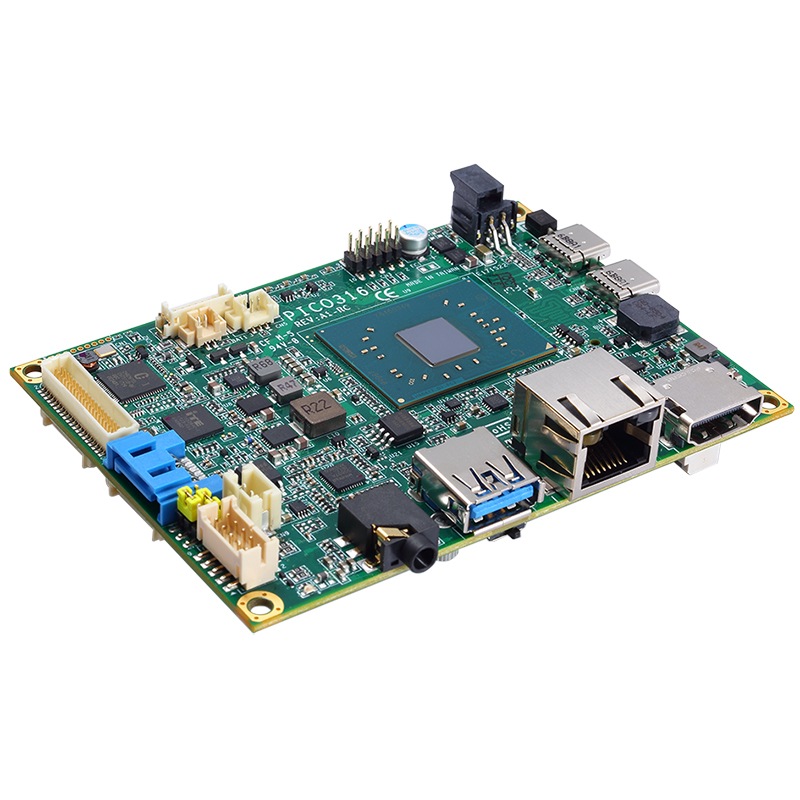

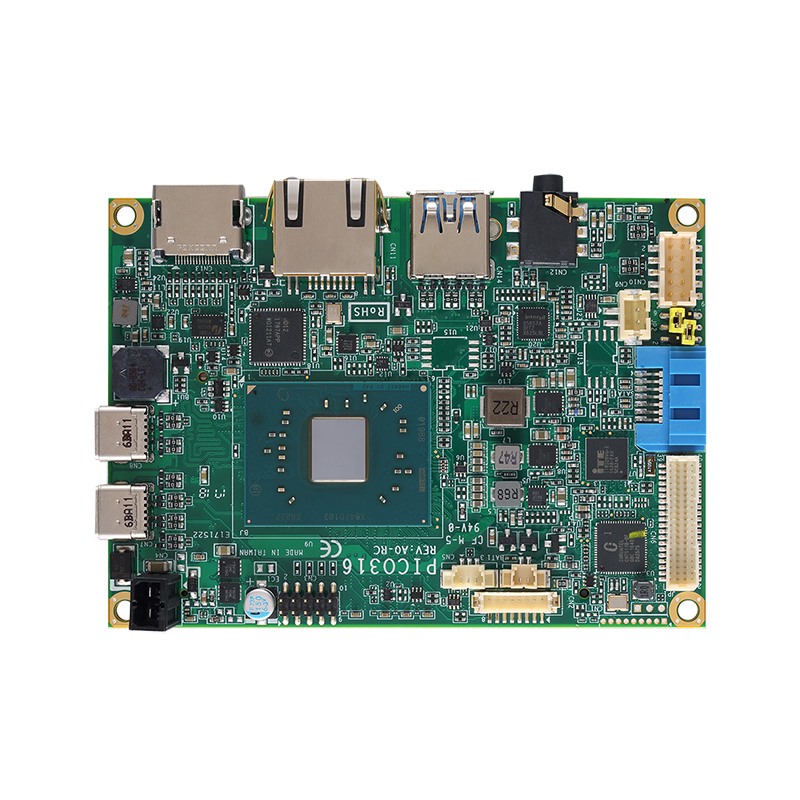

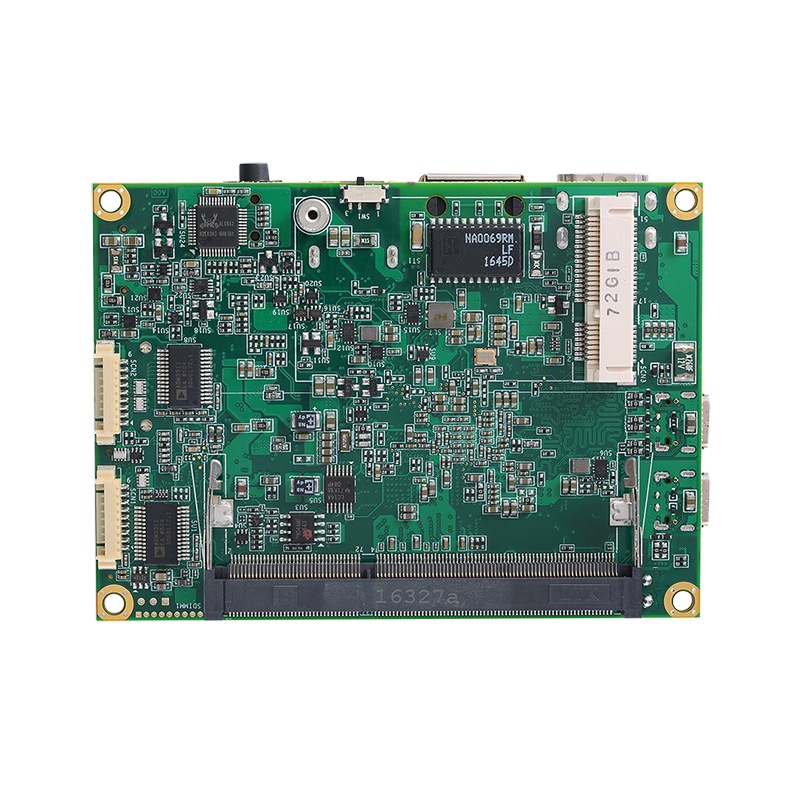

The PICO316 supports the low-power consumption Intel® Pentium® processor N4200 or Celeron® processor N3350 (codename: Apollo Lake SoC). The PICO316 comes with dual display capability through 18/24 single/dual-channel LVDS and HDMI. It supports one DDR3L-1867 SO-DIMM system memory up to 8 GB, one SATA-600 connector and one full-size PCI Express Mini Card slot supporting mSATA. The tiny PICO316 offers high flexibility with rich I/O options, a fanless design for longevity, a wide operating temperature range of -20°C to +60°C (-4°F to +140°F), and a +5V DC power supply input. The compact and slim design of the small form factor SBC ensures that it can fit into a variety of space constricting environments. This pico-ITX SBC is created to support a variety of Industrial Internet of Things (IIoT) applications, especially those with graphic-intensive and limited-space requirements including automation control, medical imaging, digital signage, gaming and more.
